CANON / BODY SIZE GUIDE

Canon cameras, sized for the bag

EOS interchangeable-lens and PowerShot fixed-lens cameras. Body-only dimensions are shown width x height x depth, and cameras are grouped by their rectangular envelope for straightforward comparison.

13current models

58archive models

Under 0.70 L

Compact

5 cameras

Vlogging compact2023Current

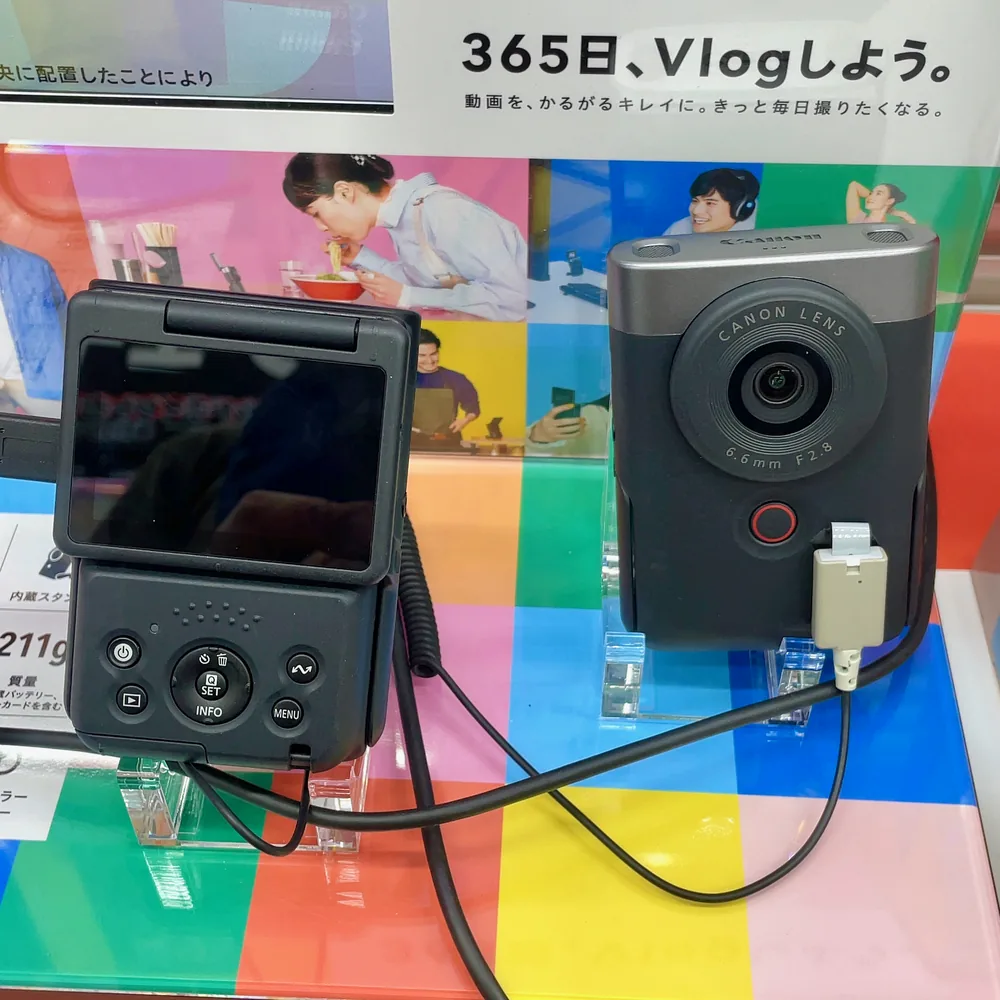

PowerShot V10

Dimensions: 2.5 x 3.5 x 1.4 in (63.4 x 90 x 34.3 mm)
Weight: 7.4 oz (211 g)

1-inchFixed 19mm equiv.0.20 L envelope

View source

Premium compact2019Current

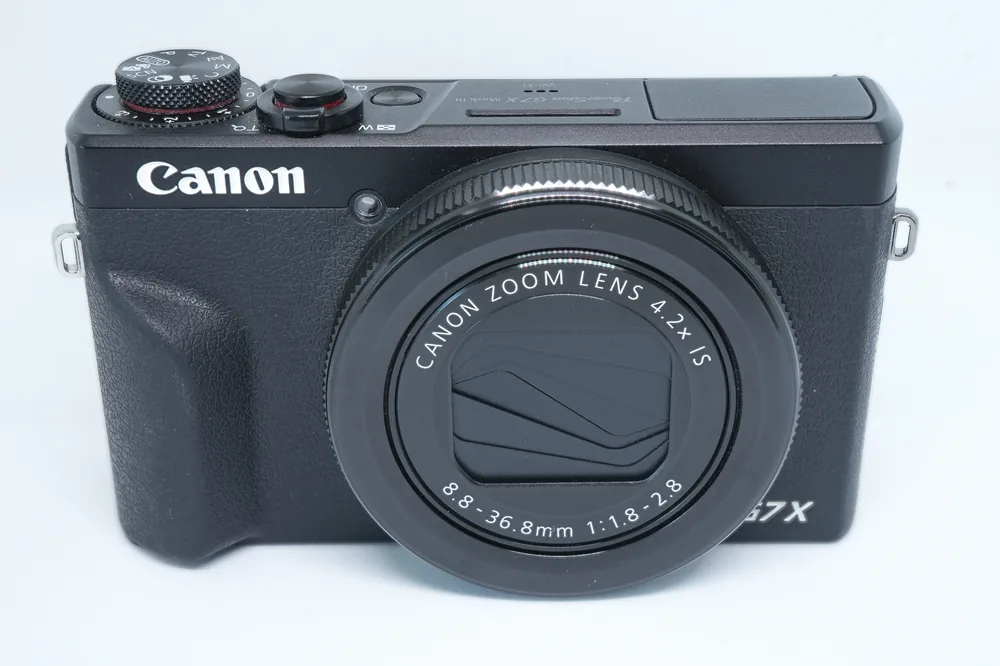

PowerShot G7 X Mark III

Dimensions: 4.1 x 2.4 x 1.6 in (105 x 60.9 x 41.4 mm)
Weight: 10.7 oz (304 g)

1-inchFixed 24–100mm equiv.0.26 L envelope

View source

Travel zoom compact2018Current

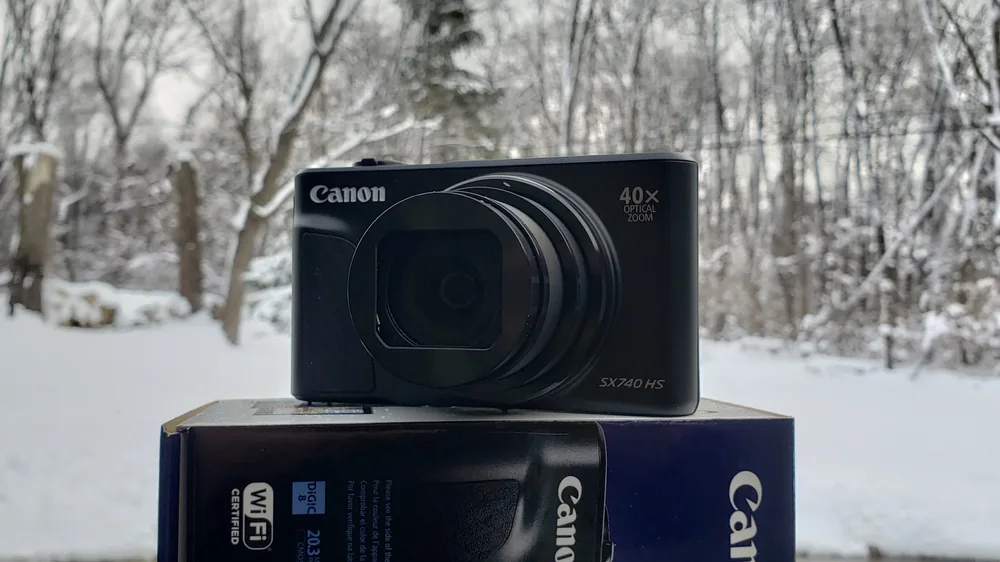

PowerShot SX740 HS

Dimensions: 4.3 x 2.5 x 1.6 in (110.1 x 63.8 x 39.9 mm)
Weight: 10.5 oz (299 g)

1/2.3 inFixed 24–960mm equiv.0.28 L envelope

View source

EOS R mirrorless2023Current

EOS R100

Dimensions: 4.6 x 3.4 x 2.7 in (116.3 x 85.5 x 68.8 mm)
Weight: 12.6 oz (356 g)

APS-CCanon RF0.68 L envelope

View source

EOS R mirrorless2023Current

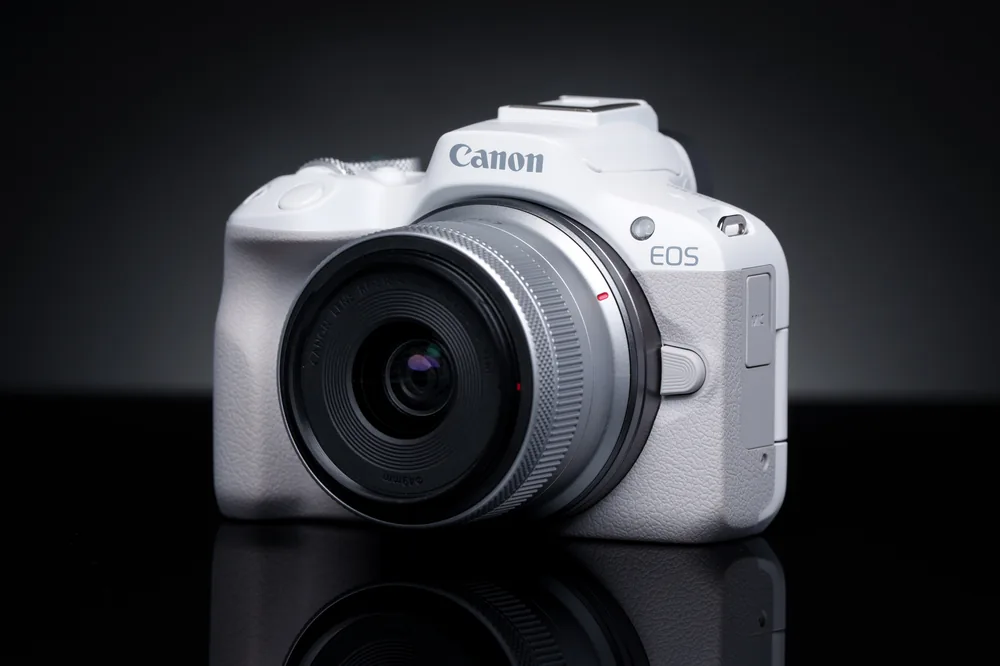

EOS R50

Dimensions: 4.6 x 3.4 x 2.7 in (116.3 x 85.5 x 68.8 mm)
Weight: 13.2 oz (375 g)

APS-CCanon RF0.68 L envelope

View source

0.70–0.89 L

Small

2 cameras

EOS R mirrorless2023Current

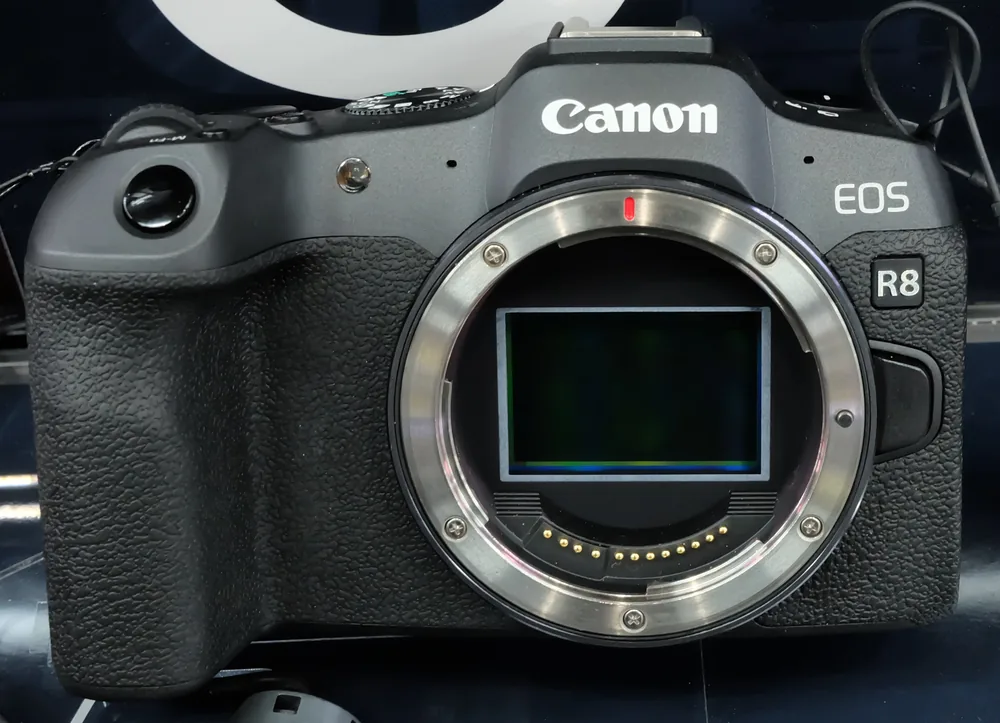

EOS R8

Dimensions: 5.2 x 3.4 x 2.8 in (132.5 x 86.1 x 70 mm)
Weight: 16.3 oz (461 g)

Full frameCanon RF0.80 L envelope

View source

EOS R mirrorless2022Current

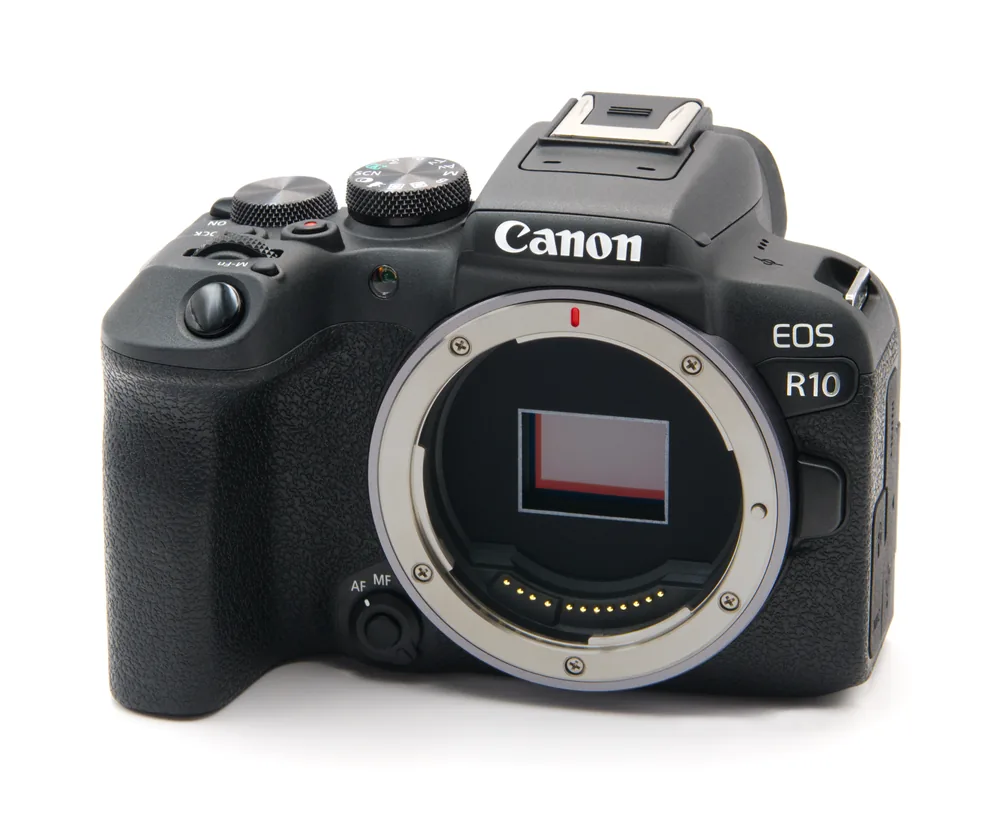

EOS R10

Dimensions: 4.8 x 3.5 x 3.3 in (122.5 x 87.8 x 83.4 mm)
Weight: 15.1 oz (429 g)

APS-CCanon RF0.90 L envelope

View source

0.90–1.09 L

Standard

1 camera

EOS R mirrorless2022Current

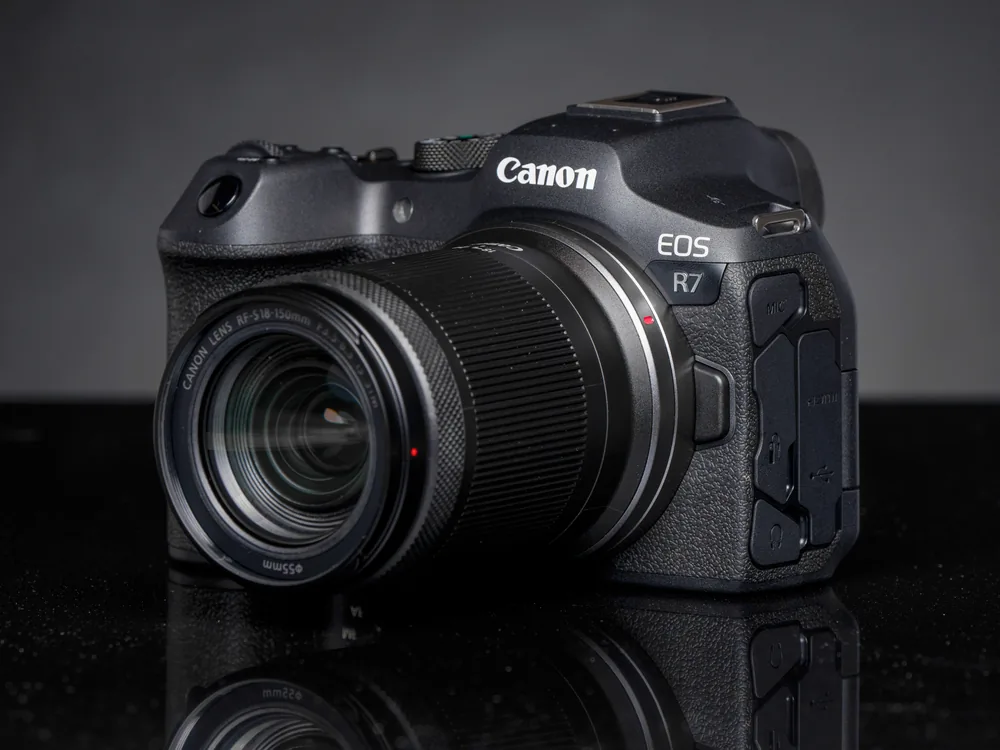

EOS R7

Dimensions: 5.2 x 3.6 x 3.6 in (132 x 90.4 x 91.7 mm)
Weight: 21.6 oz (612 g)

APS-CCanon RF1.09 L envelope

View source

1.10–1.59 L

Large

3 cameras

EOS R mirrorless2022Current

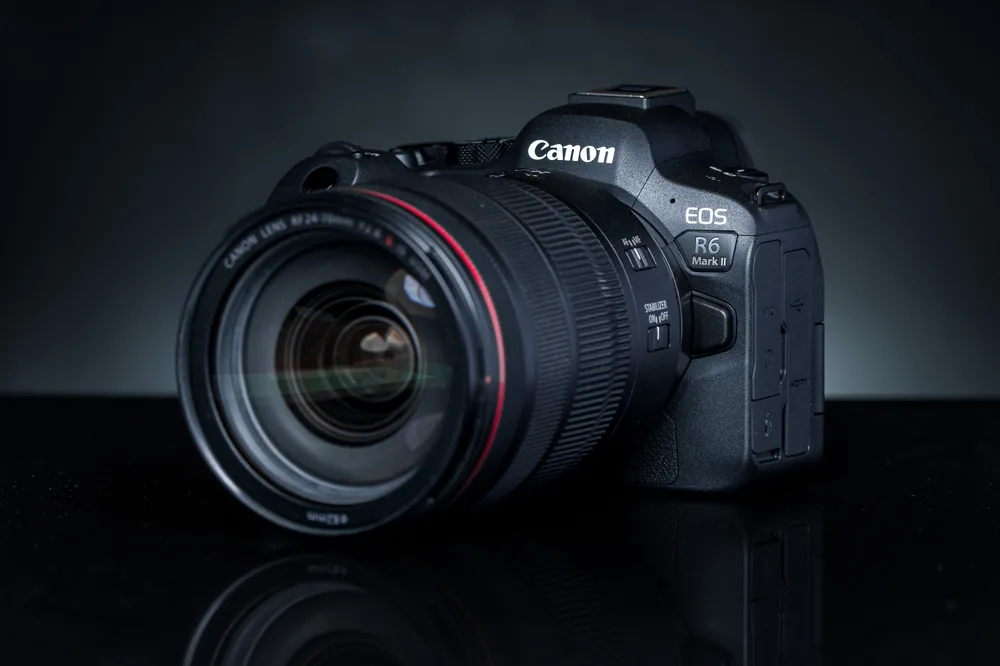

EOS R6 Mark II

Dimensions: 5.4 x 3.9 x 3.5 in (138.4 x 98.4 x 88.4 mm)
Weight: 23.6 oz (670 g)

Full frameCanon RF1.20 L envelope

View source

EOS R mirrorless2024Current

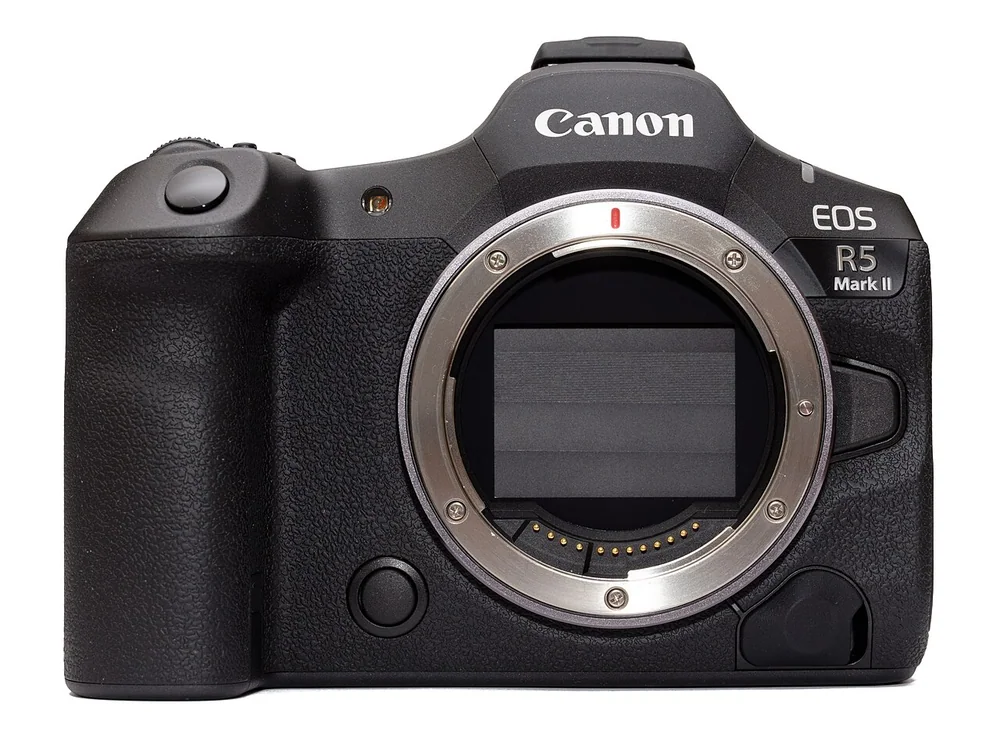

EOS R5 Mark II

Dimensions: 5.5 x 4.0 x 3.7 in (138.5 x 101.2 x 93.5 mm)
Weight: 26.3 oz (746 g)

Full frameCanon RF1.31 L envelope

View source

Bridge camera2018Current

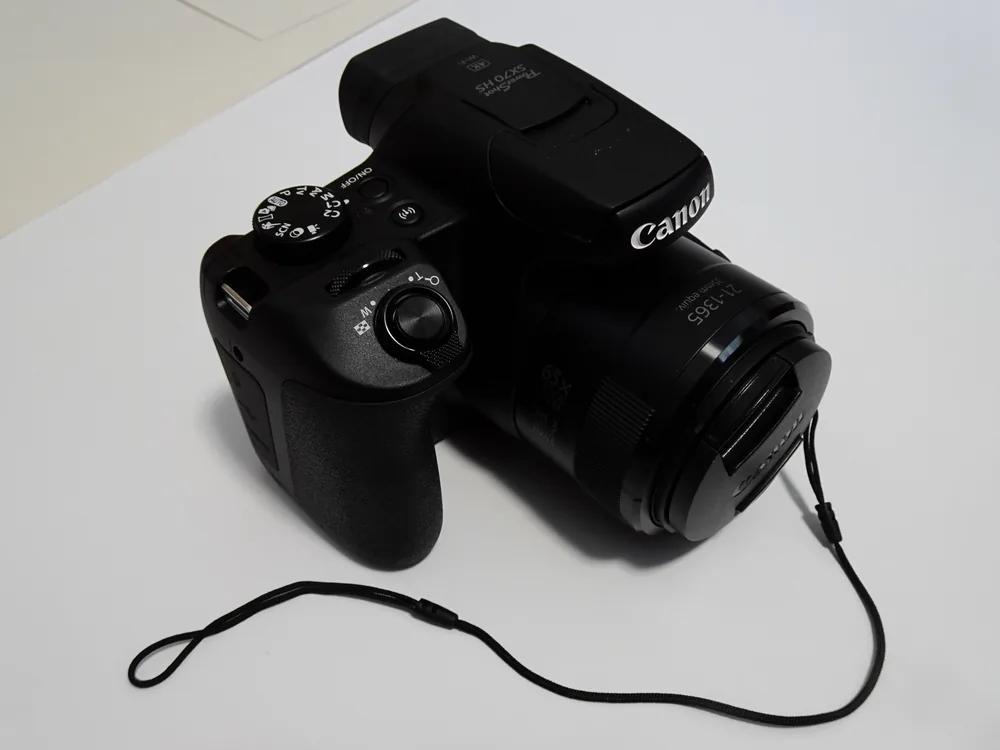

PowerShot SX70 HS

Dimensions: 5.0 x 3.6 x 4.6 in (127.1 x 90.9 x 116.6 mm)
Weight: 21.5 oz (610 g)

1/2.3 inFixed 21–1365mm equiv.1.35 L envelope

View source

1.60 L and over

Extra large

2 cameras

Professional mirrorless2021Current

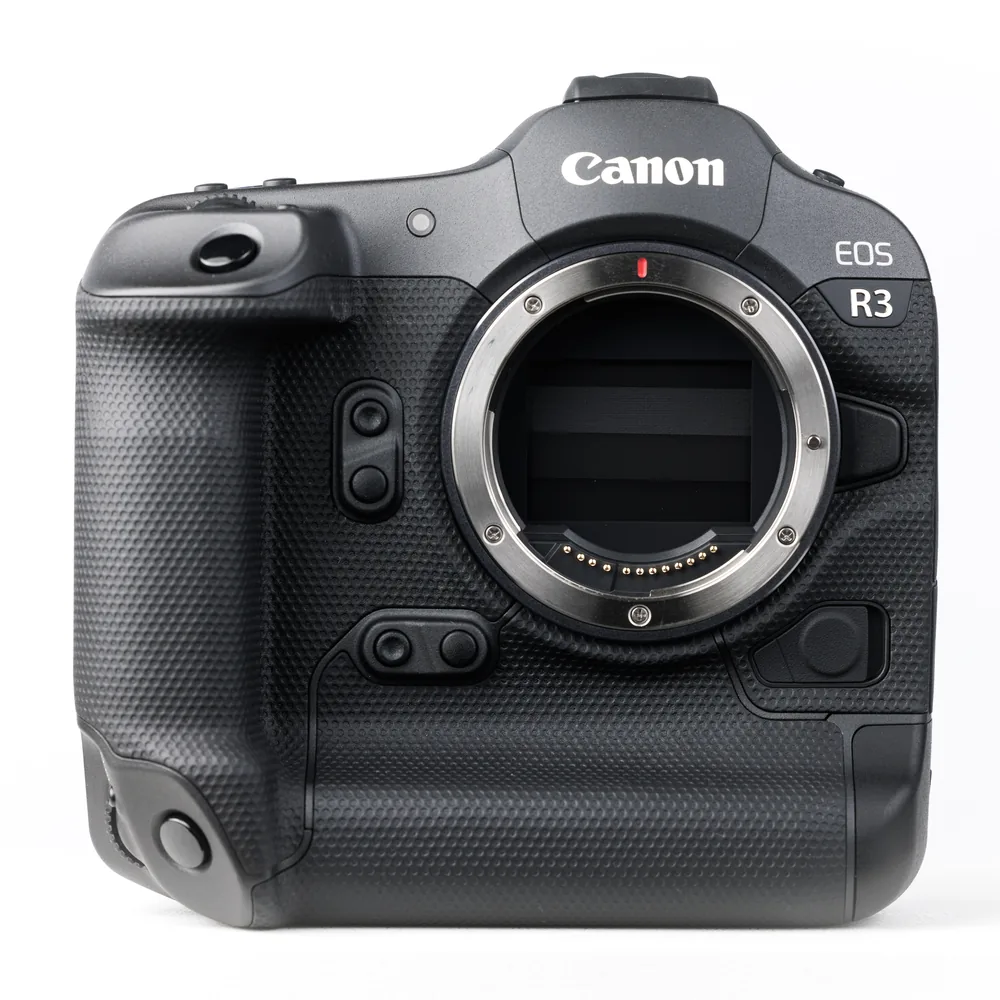

EOS R3

Dimensions: 5.9 x 5.6 x 3.4 in (150 x 142.6 x 87.2 mm)
Weight: 35.8 oz (1,015 g)

Full frameCanon RF1.87 L envelope

View source

Professional mirrorless2024Current

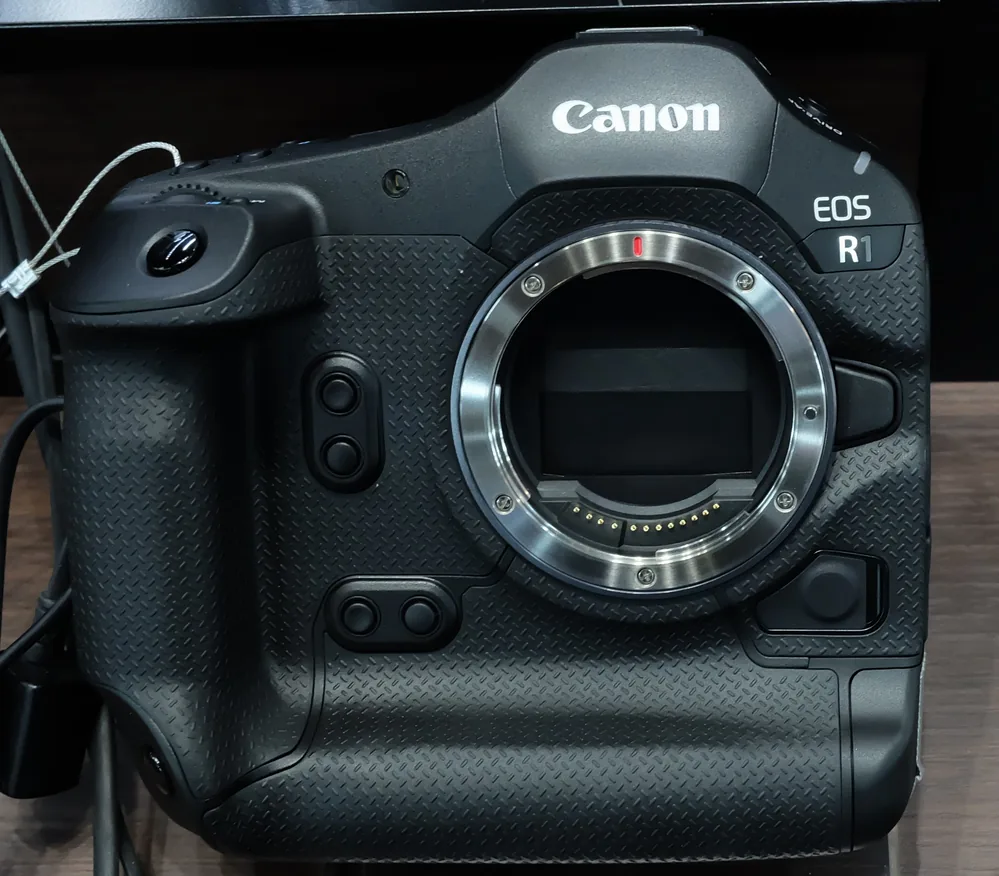

EOS R1

Dimensions: 6.2 x 5.9 x 3.4 in (157.6 x 149.5 x 87.3 mm)
Weight: 39.3 oz (1,115 g)

Full frameCanon RF2.06 L envelope

View source

ARCHIVE REFERENCE / NEWEST FIRST

Canon archive

58 cameras

Under 0.70 L

Compact

24 archived

EOS M mirrorless2020Archive

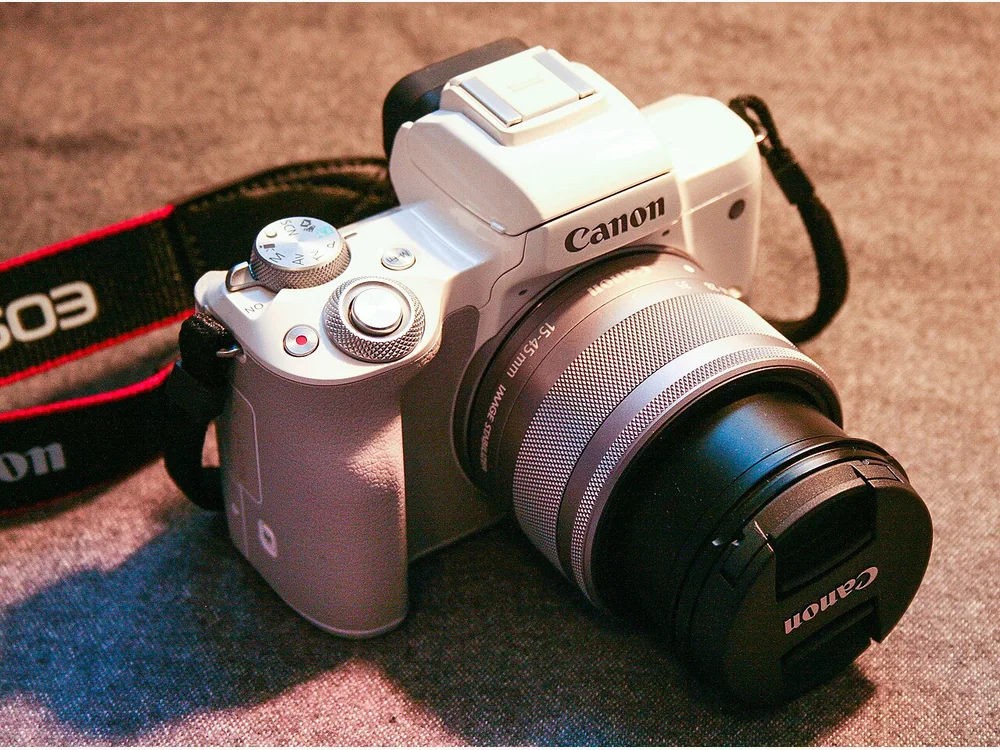

EOS M50 Mark II

Dimensions: 4.6 x 3.5 x 2.3 in (116.3 x 88.1 x 58.7 mm)
Weight: 13.7 oz (387 g)

APS-CCanon EF-M0.60 L envelope

View source

EOS M mirrorless2019Archive

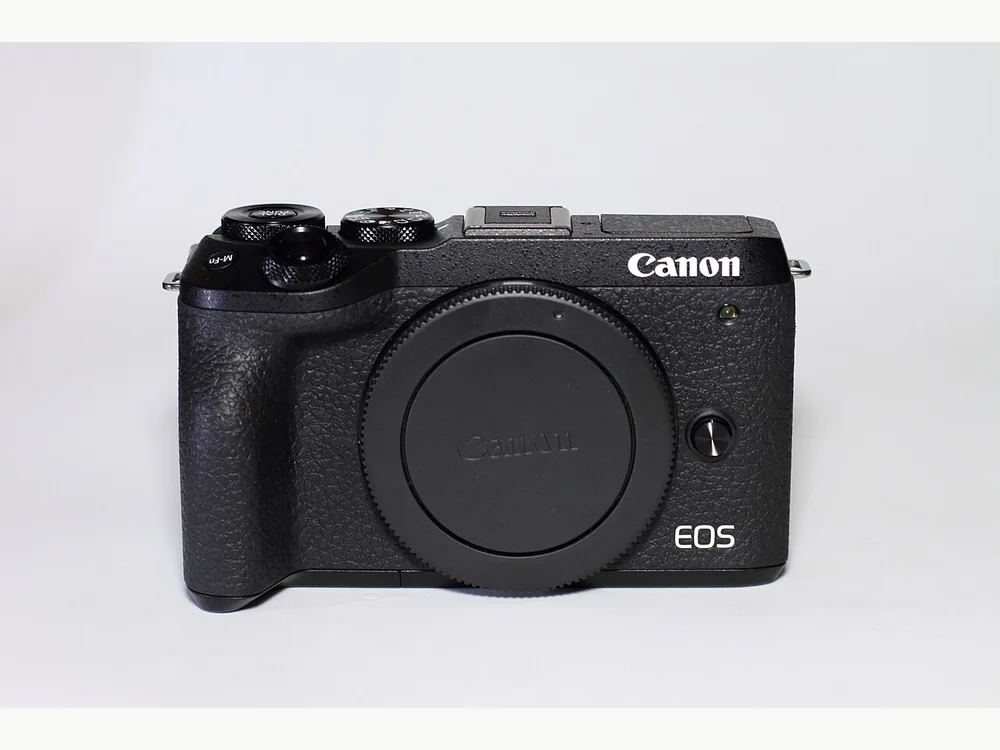

EOS M6 Mark II

Dimensions: 4.7 x 2.8 x 1.9 in (119.6 x 70 x 49.2 mm)
Weight: 14.4 oz (408 g)

APS-CCanon EF-M0.41 L envelope

View source

Premium compact2019Archive

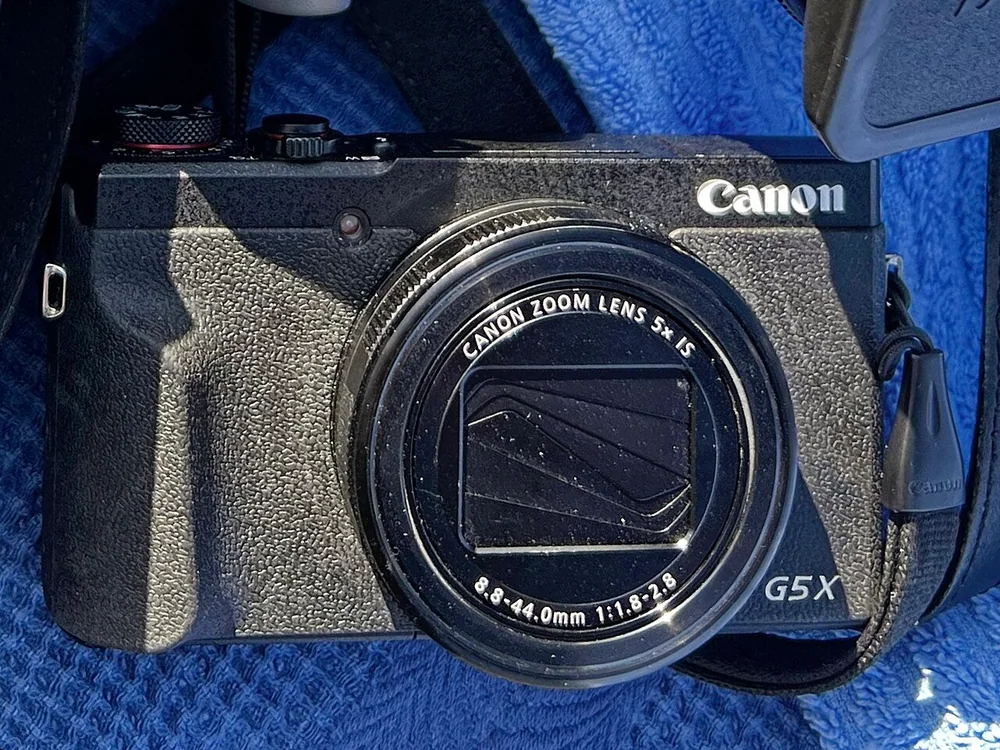

PowerShot G5 X Mark II

Dimensions: 4.4 x 2.4 x 1.8 in (110.9 x 60.9 x 46 mm)
Weight: 12.0 oz (340 g)

1-inchFixed 24–120mm equiv.0.31 L envelope

View source

EOS M mirrorless2018Archive

EOS M50

Dimensions: 4.6 x 3.5 x 2.3 in (116.3 x 88.1 x 58.7 mm)
Weight: 13.8 oz (390 g)

APS-CCanon EF-M0.60 L envelope

View source

EOS M mirrorless2017Archive

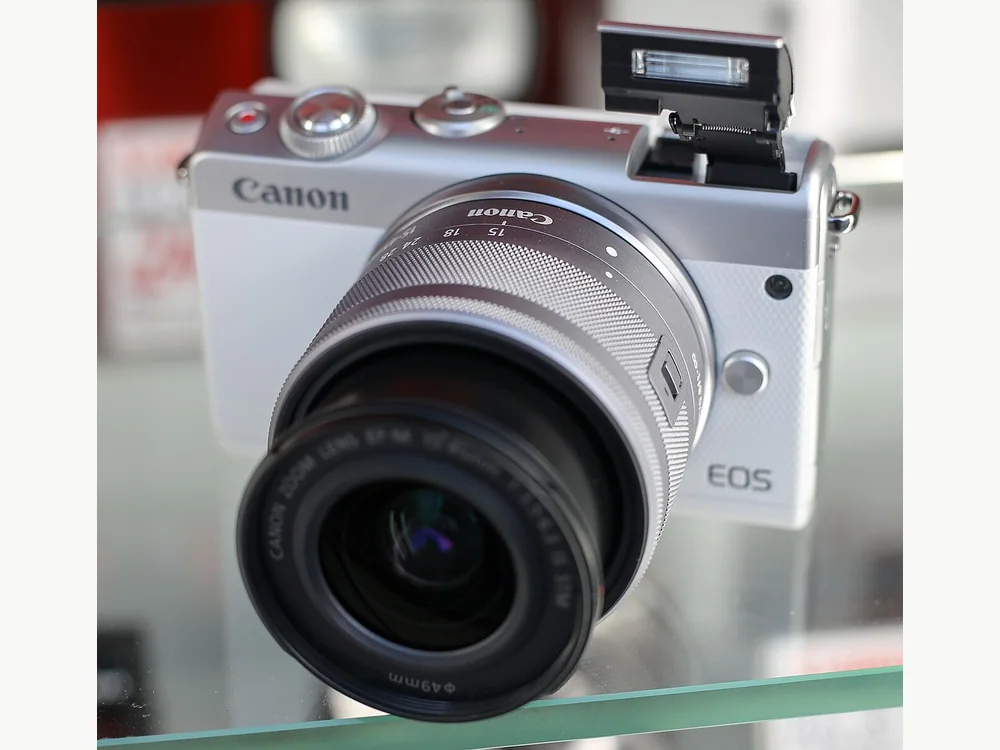

EOS M100

Dimensions: 4.3 x 2.6 x 1.4 in (108.2 x 67.1 x 35.1 mm)
Weight: 10.7 oz (302 g)

APS-CCanon EF-M0.25 L envelope

View source

EOS M mirrorless2017Archive

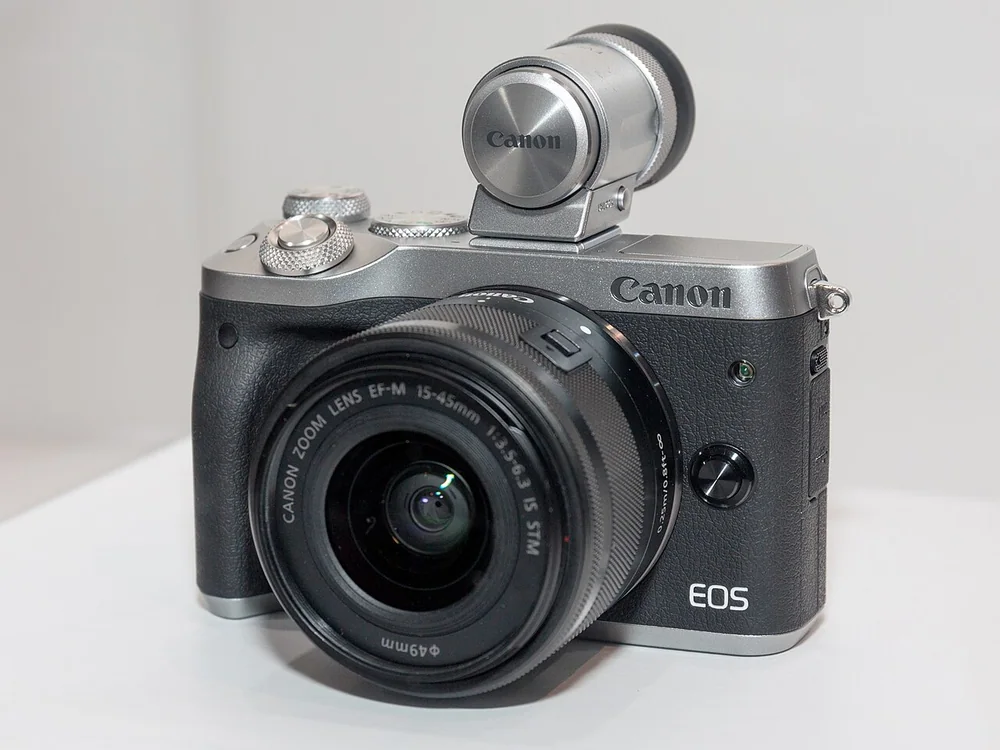

EOS M6

Dimensions: 4.4 x 2.7 x 1.8 in (112 x 68 x 44.5 mm)
Weight: 13.8 oz (390 g)

APS-CCanon EF-M0.34 L envelope

View source

Premium compact2017Archive

PowerShot G1 X Mark III

Dimensions: 4.5 x 3.1 x 2.0 in (115 x 77.9 x 51.4 mm)
Weight: 14.1 oz (399 g)

APS-CFixed 24–72mm equiv.0.46 L envelope

View source

Premium compact2017Archive

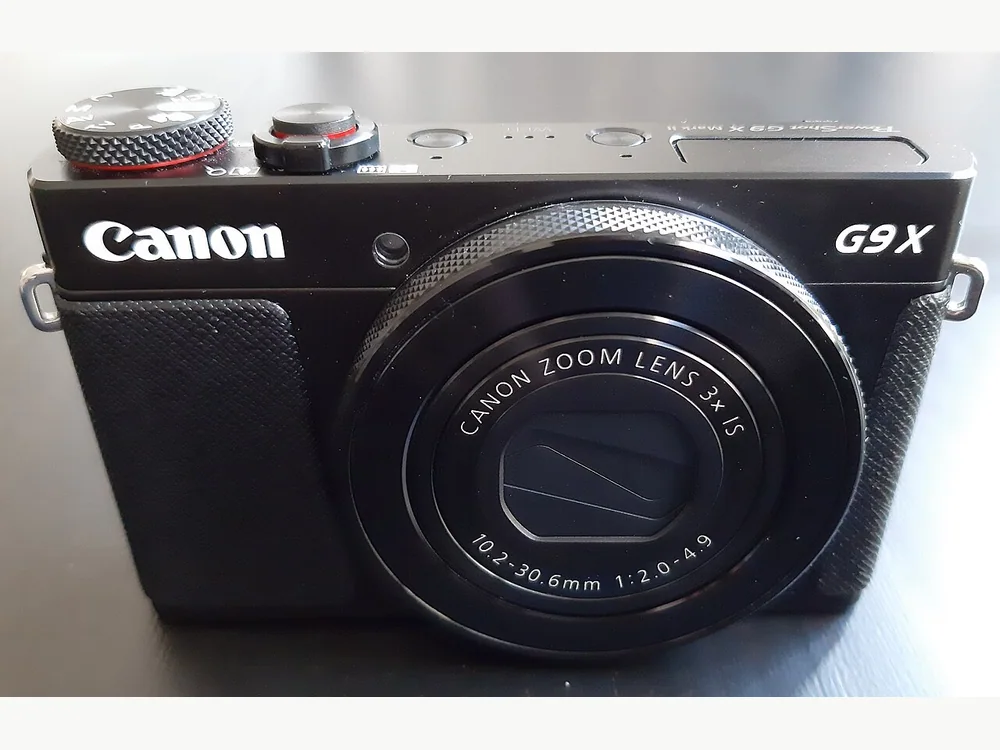

PowerShot G9 X Mark II

Dimensions: 3.9 x 2.3 x 1.2 in (98 x 57.9 x 31.3 mm)
Weight: 7.3 oz (206 g)

1-inchFixed 28–84mm equiv.0.18 L envelope

View source

Travel zoom compact2017Archive

PowerShot SX730 HS

Dimensions: 4.3 x 2.5 x 1.6 in (110.1 x 63.8 x 39.9 mm)
Weight: 10.6 oz (300 g)

1/2.3 inFixed 24–960mm equiv.0.28 L envelope

View source

EOS M mirrorless2016Archive

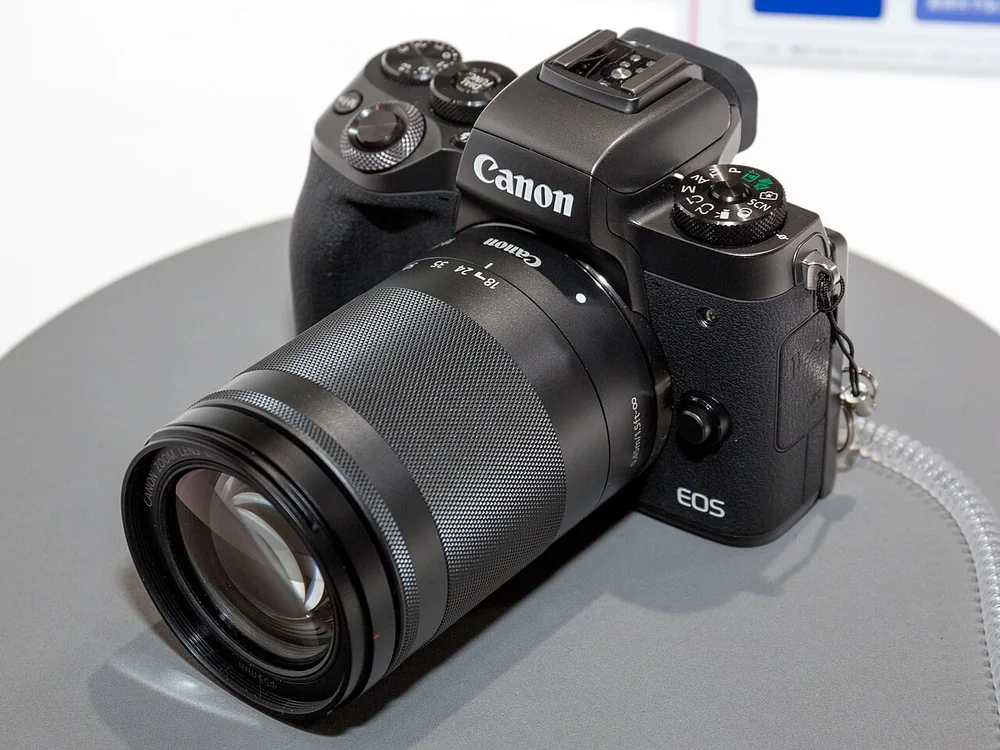

EOS M5

Dimensions: 4.6 x 3.5 x 2.4 in (115.6 x 89.2 x 60.6 mm)
Weight: 15.1 oz (427 g)

APS-CCanon EF-M0.62 L envelope

View source

Premium compact2016Archive

PowerShot G7 X Mark II

Dimensions: 4.2 x 2.4 x 1.7 in (105.5 x 60.9 x 42.2 mm)
Weight: 11.3 oz (319 g)

1-inchFixed 24–100mm equiv.0.27 L envelope

View source

Travel zoom compact2016Archive

PowerShot SX720 HS

Dimensions: 4.3 x 2.5 x 1.4 in (109.7 x 63.8 x 35.7 mm)
Weight: 9.5 oz (270 g)

1/2.3 inFixed 24–960mm equiv.0.25 L envelope

View source

EOS M mirrorless2015Archive

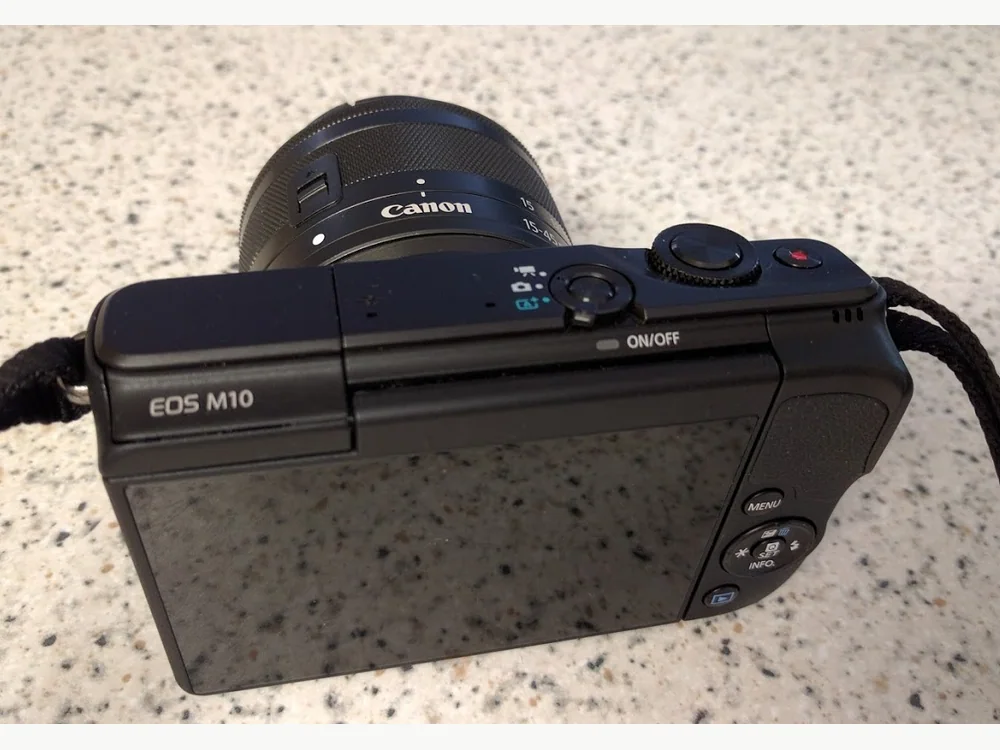

EOS M10

Dimensions: 4.3 x 2.6 x 1.4 in (108 x 66.6 x 35 mm)
Weight: 10.6 oz (301 g)

APS-CCanon EF-M0.25 L envelope

View source

EOS M mirrorless2015Archive

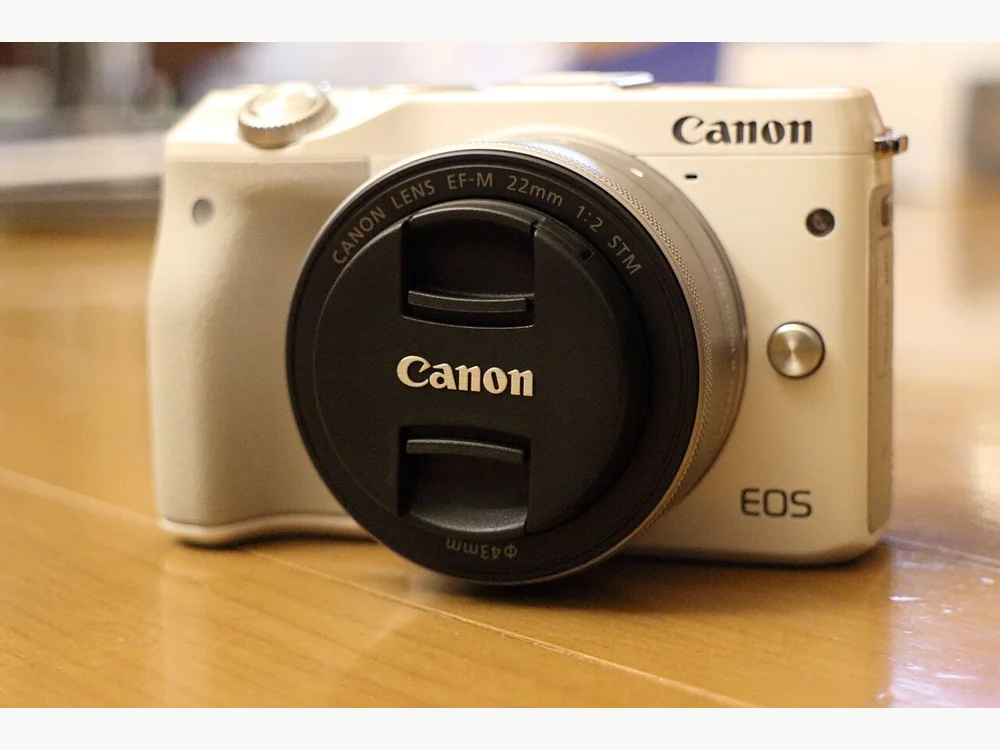

EOS M3

Dimensions: 4.4 x 2.7 x 1.7 in (110.9 x 68 x 44.4 mm)
Weight: 12.9 oz (366 g)

APS-CCanon EF-M0.33 L envelope

View source

Premium compact2015Archive

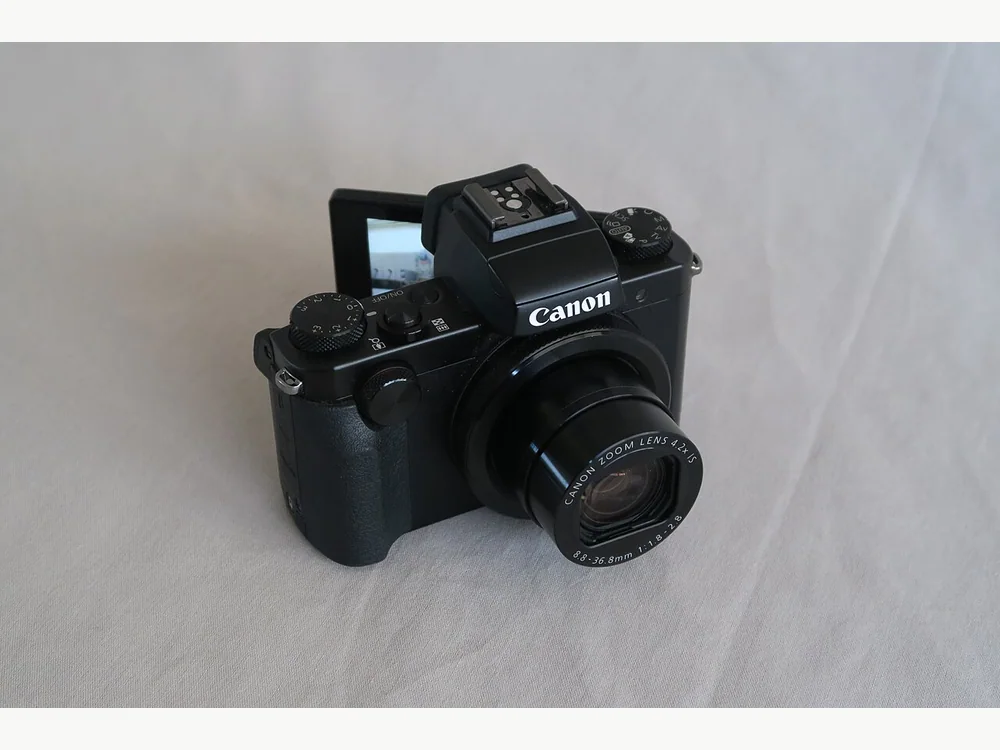

PowerShot G5 X

Dimensions: 4.4 x 3.0 x 1.7 in (112.4 x 76.4 x 44.2 mm)
Weight: 13.3 oz (377 g)

1-inchFixed 24–100mm equiv.0.38 L envelope

View source

Premium compact2015Archive

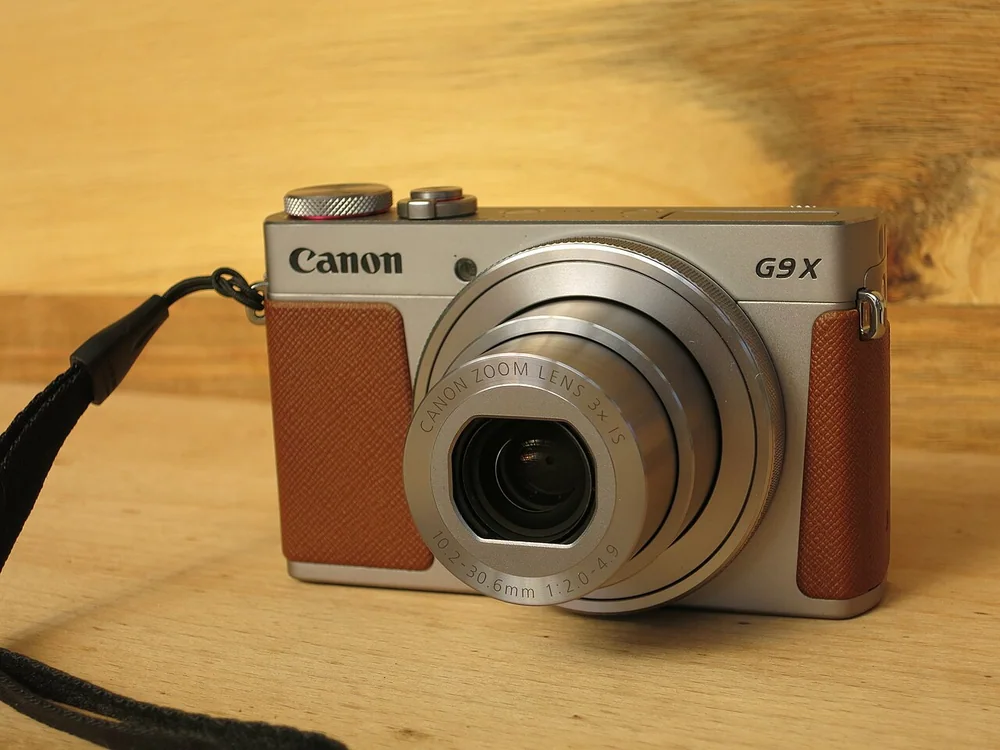

PowerShot G9 X

Dimensions: 3.9 x 2.3 x 1.2 in (98 x 57.9 x 30.8 mm)
Weight: 7.4 oz (209 g)

1-inchFixed 28–84mm equiv.0.17 L envelope

View source

Premium compact2014Archive

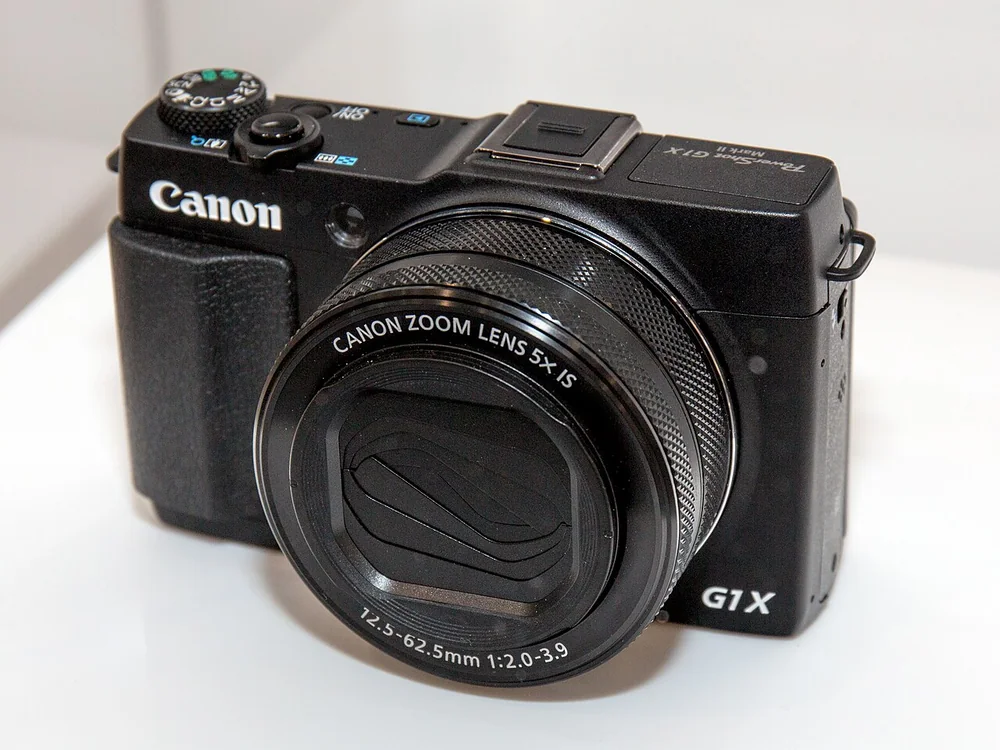

PowerShot G1 X Mark II

Dimensions: 4.6 x 2.9 x 2.6 in (116.3 x 74 x 66.2 mm)
Weight: 19.7 oz (558 g)

1.5-inchFixed 24–120mm equiv.0.57 L envelope

View source

Premium compact2014Archive

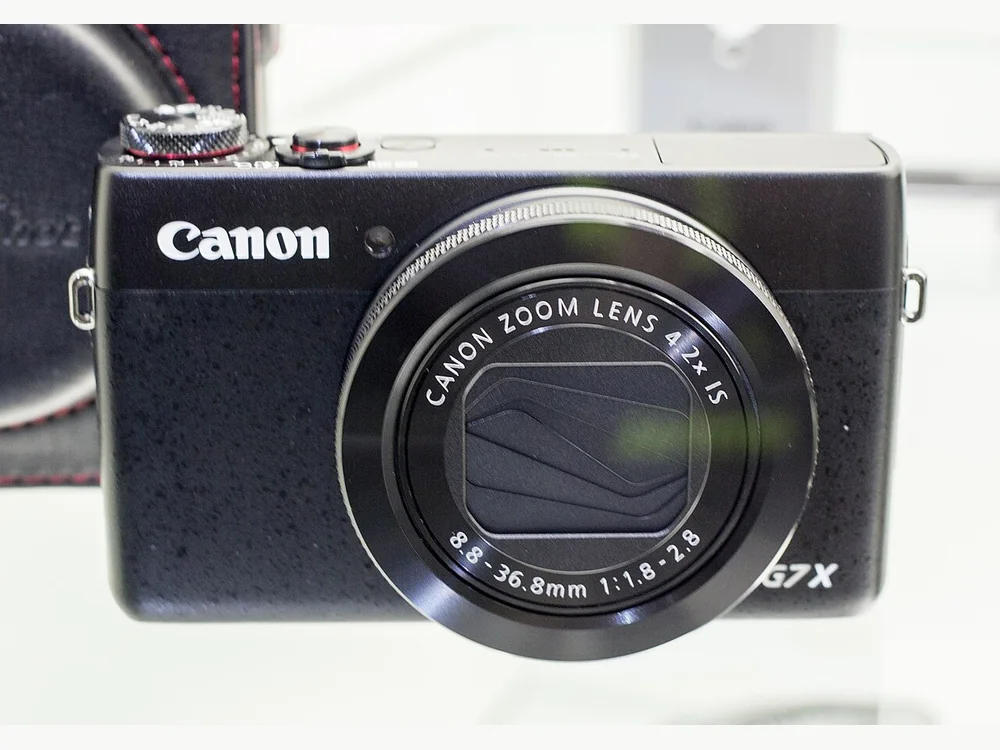

PowerShot G7 X

Dimensions: 4.1 x 2.4 x 1.6 in (103 x 60.4 x 40.4 mm)
Weight: 10.7 oz (304 g)

1-inchFixed 24–100mm equiv.0.25 L envelope

View source

EOS M mirrorless2013Archive

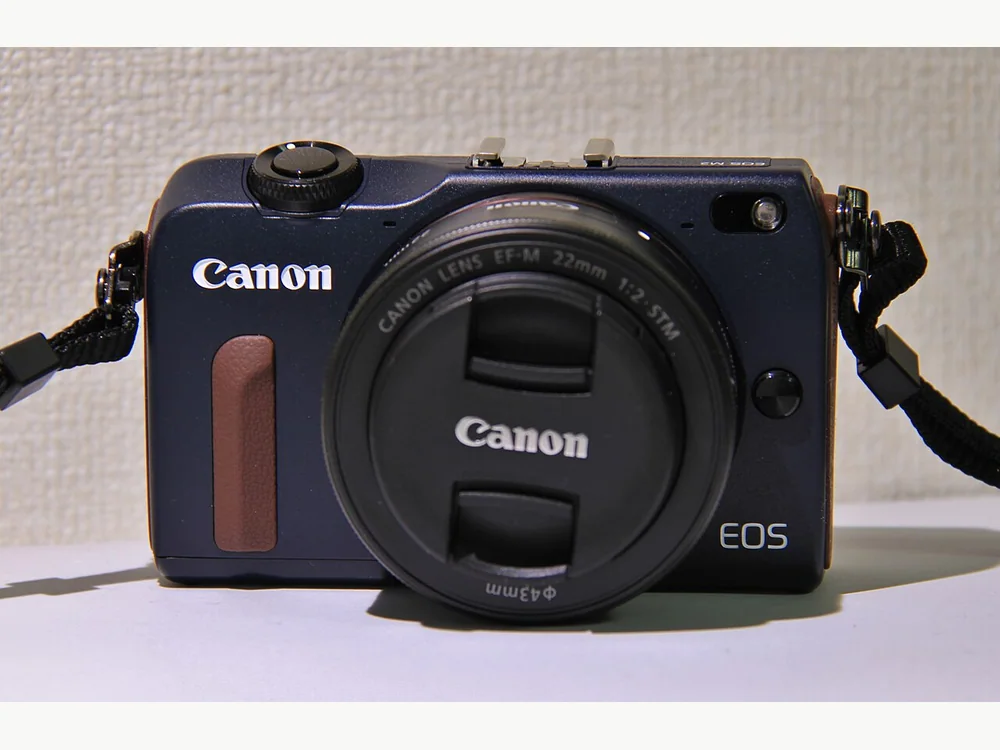

EOS M2

Dimensions: 4.1 x 2.6 x 1.2 in (104.9 x 65.2 x 31.6 mm)
Weight: 9.7 oz (274 g)

APS-CCanon EF-M0.22 L envelope

View source

Enthusiast compact2013Archive

PowerShot G16

Dimensions: 4.3 x 3.0 x 1.6 in (108.8 x 75.9 x 40.3 mm)
Weight: 12.6 oz (356 g)

1/1.7 inFixed 28–140mm equiv.0.33 L envelope

View source

Enthusiast compact2013Archive

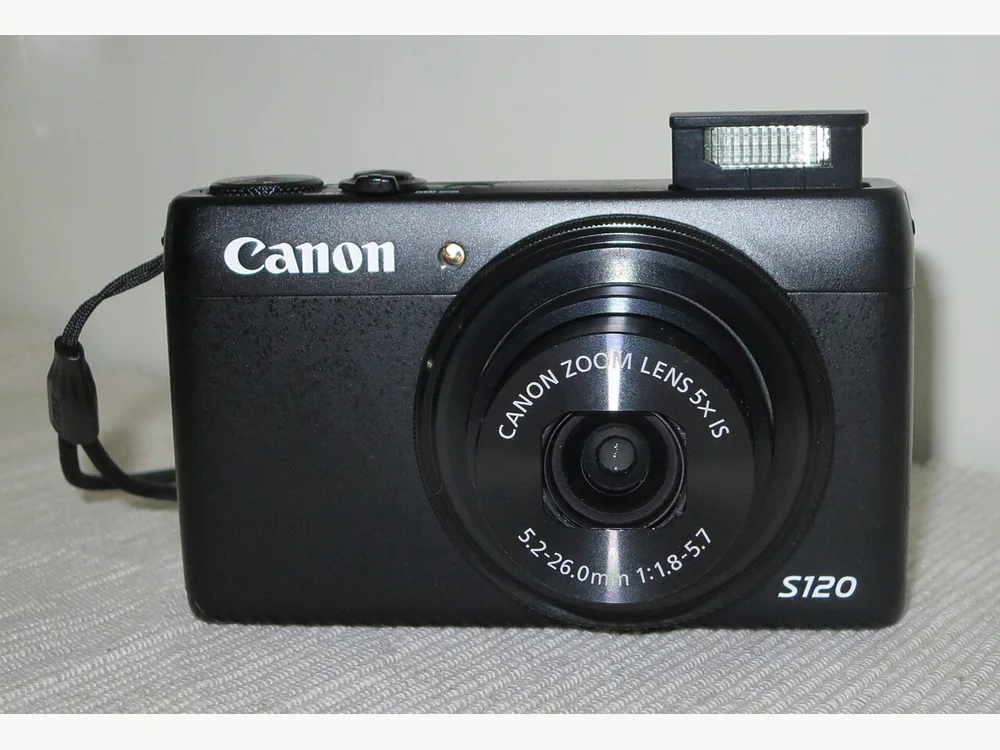

PowerShot S120

Dimensions: 3.9 x 2.3 x 1.1 in (100.2 x 59 x 29 mm)
Weight: 7.7 oz (217 g)

1/1.7 inFixed 24–120mm equiv.0.17 L envelope

View source

EOS M mirrorless2012Archive

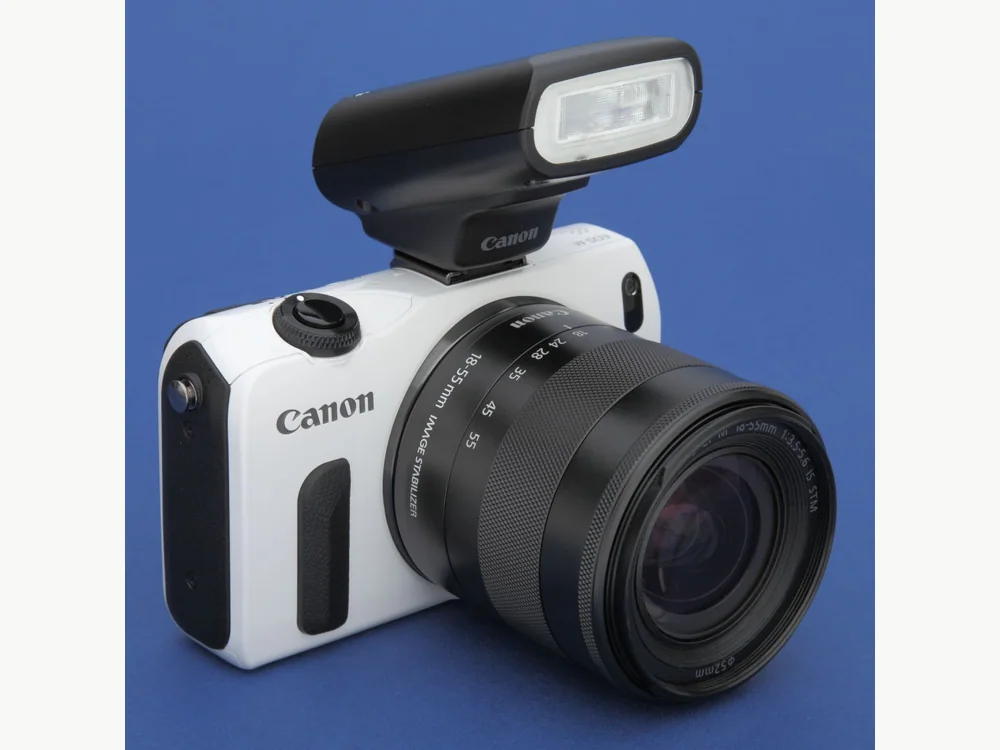

EOS M

Dimensions: 4.3 x 2.6 x 1.3 in (108.6 x 66.5 x 32.3 mm)
Weight: 10.5 oz (298 g)

APS-CCanon EF-M0.23 L envelope

View source

Enthusiast compact2012Archive

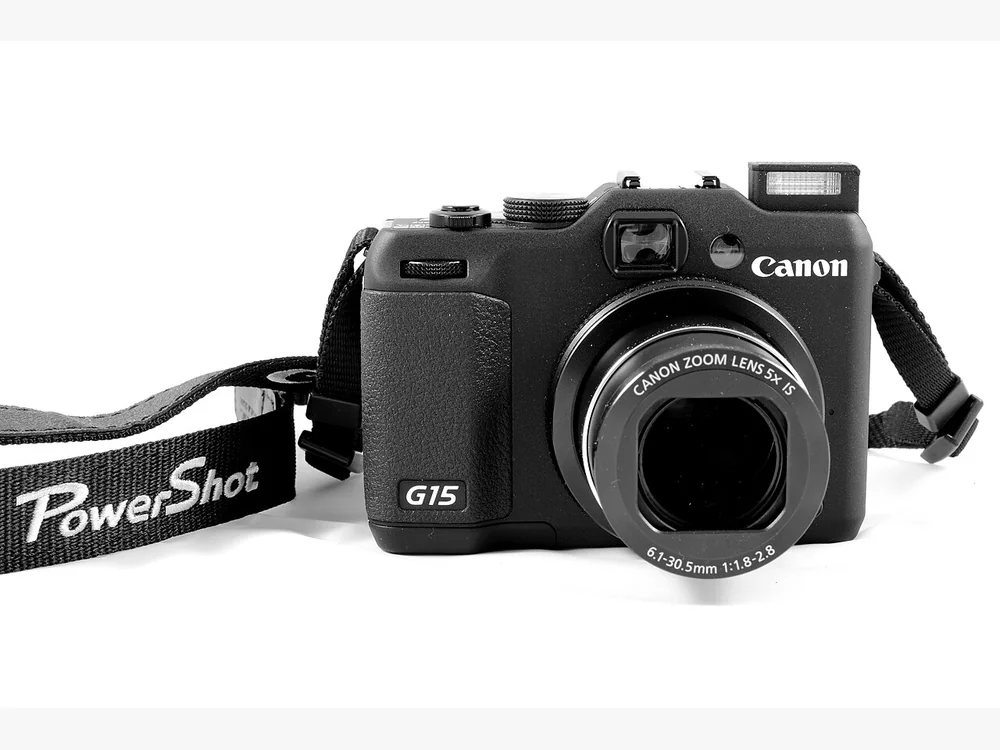

PowerShot G15

Dimensions: 4.2 x 3.0 x 1.6 in (106.6 x 75.9 x 40.1 mm)
Weight: 12.4 oz (352 g)

1/1.7 inFixed 28–140mm equiv.0.32 L envelope

View source

Enthusiast compact2012Archive

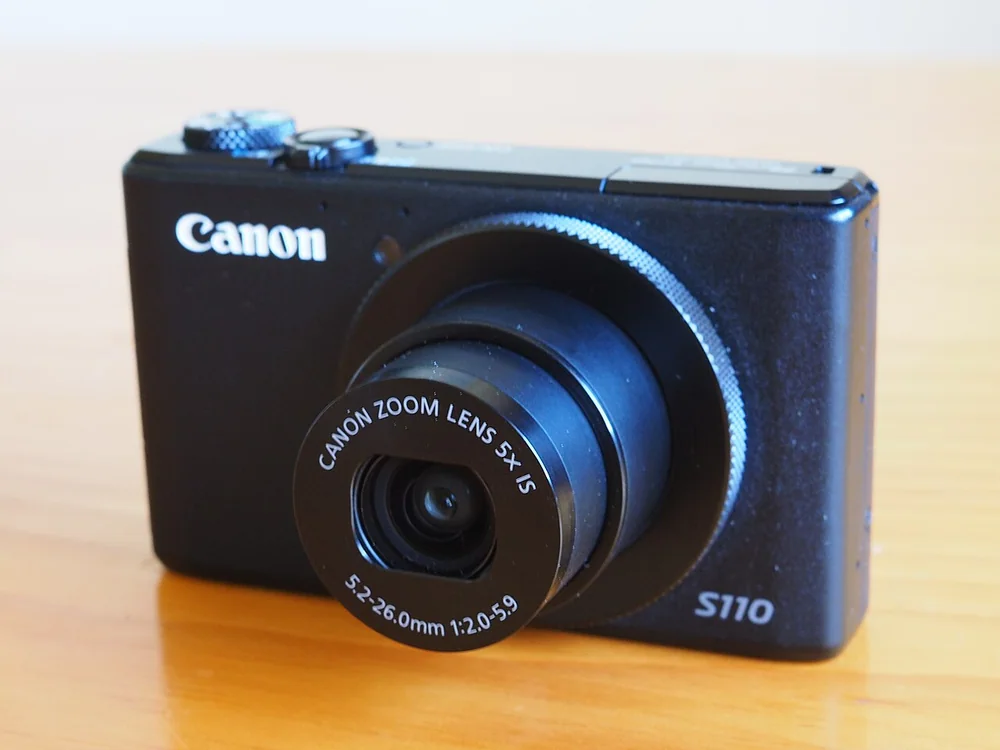

PowerShot S110

Dimensions: 3.9 x 2.3 x 1.1 in (98.8 x 59 x 26.9 mm)
Weight: 7.0 oz (198 g)

1/1.7 inFixed 24–120mm equiv.0.16 L envelope

View source

0.70–0.89 L

Small

4 archived

Compact DSLR2019Archive

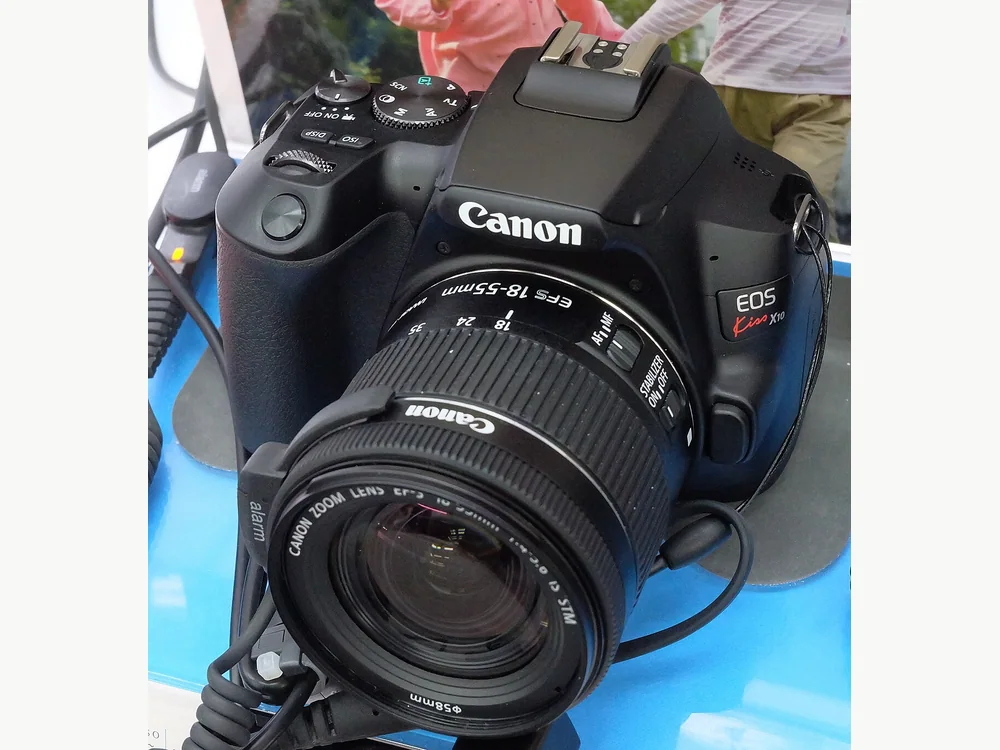

EOS 250D / Rebel SL3

Dimensions: 4.8 x 3.6 x 2.7 in (122.4 x 92.6 x 69.8 mm)
Weight: 15.8 oz (449 g)

APS-CCanon EF-S0.79 L envelope

View source

EOS R mirrorless2019Archive

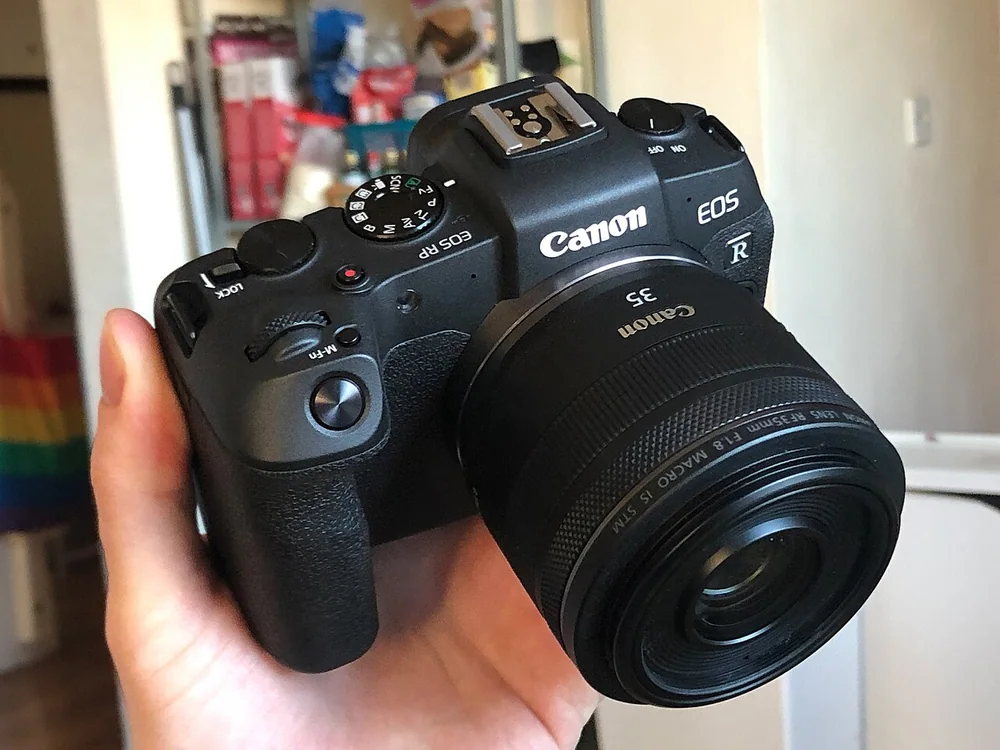

EOS RP

Dimensions: 5.2 x 3.3 x 2.8 in (132.5 x 85 x 70 mm)
Weight: 17.1 oz (485 g)

Full frameCanon RF0.79 L envelope

View source

Compact DSLR2017Archive

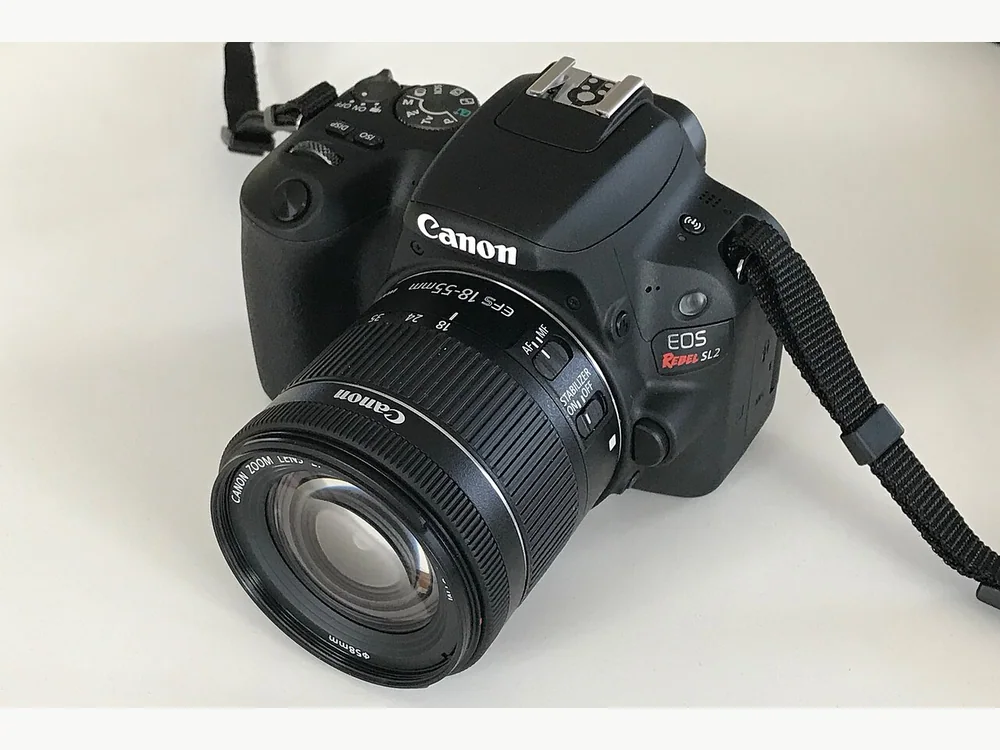

EOS 200D / Rebel SL2

Dimensions: 4.8 x 3.6 x 2.7 in (122.4 x 92.6 x 69.8 mm)
Weight: 16.0 oz (453 g)

APS-CCanon EF-S0.79 L envelope

View source

Compact DSLR2013Archive

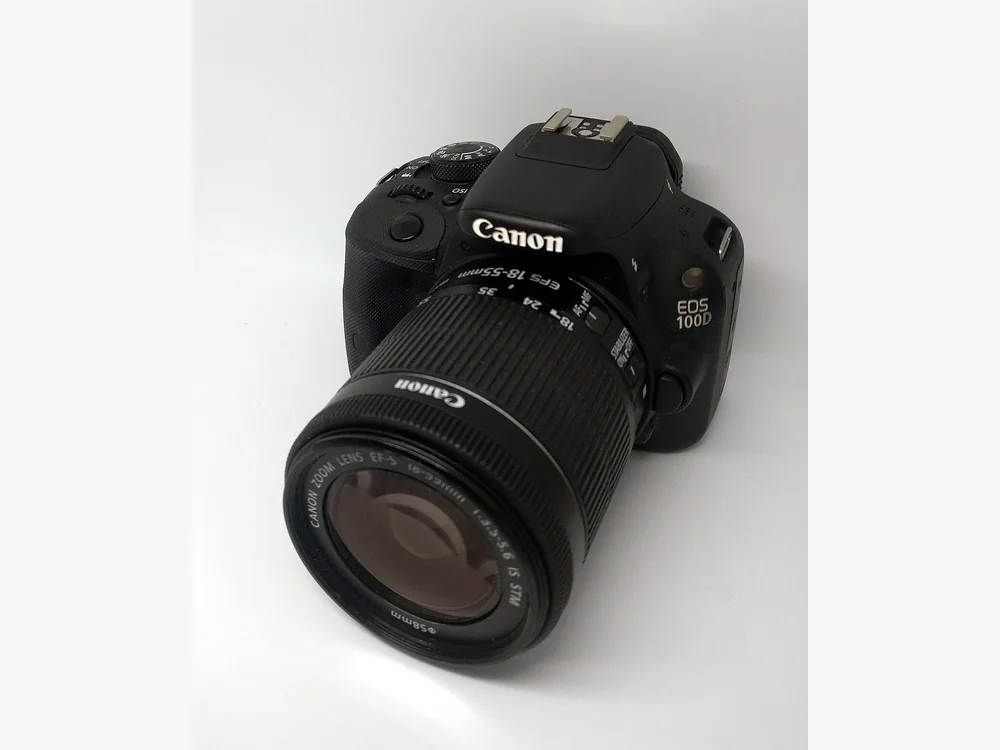

EOS 100D / Rebel SL1

Dimensions: 4.6 x 3.6 x 2.7 in (116.8 x 90.7 x 69.4 mm)
Weight: 14.4 oz (407 g)

APS-CCanon EF-S0.74 L envelope

View source

0.90–1.09 L

Standard

12 archived

Entry DSLR2020Archive

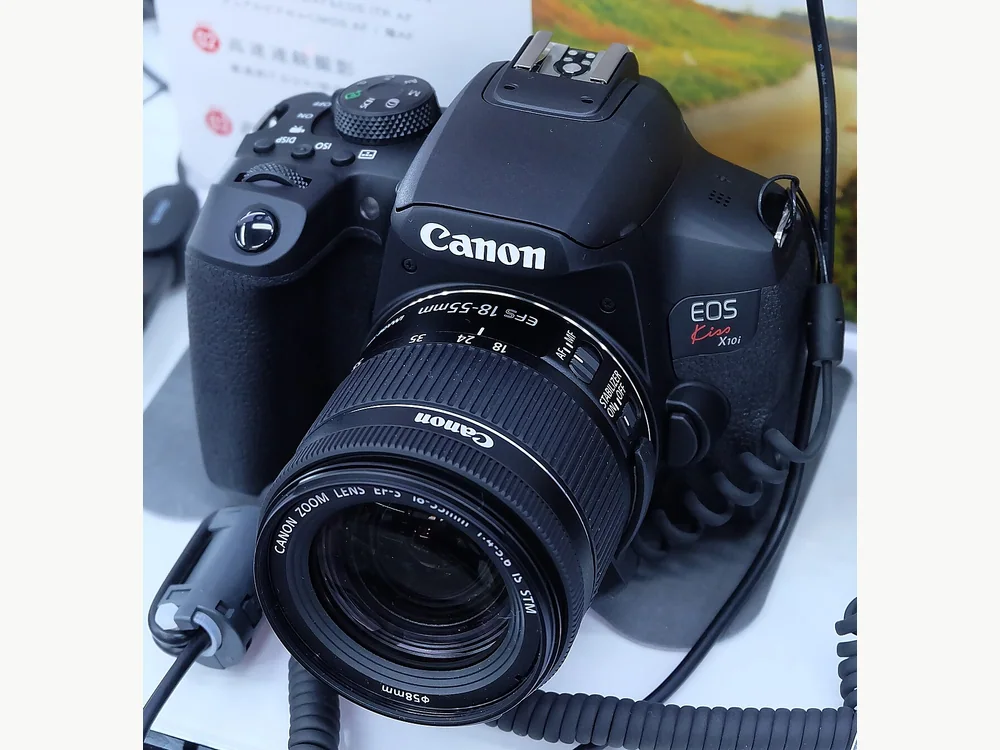

EOS 850D / Rebel T8i

Dimensions: 5.2 x 4.0 x 3.0 in (131 x 102.6 x 76.2 mm)
Weight: 18.2 oz (515 g)

APS-CCanon EF-S1.02 L envelope

View source

Entry DSLR2018Archive

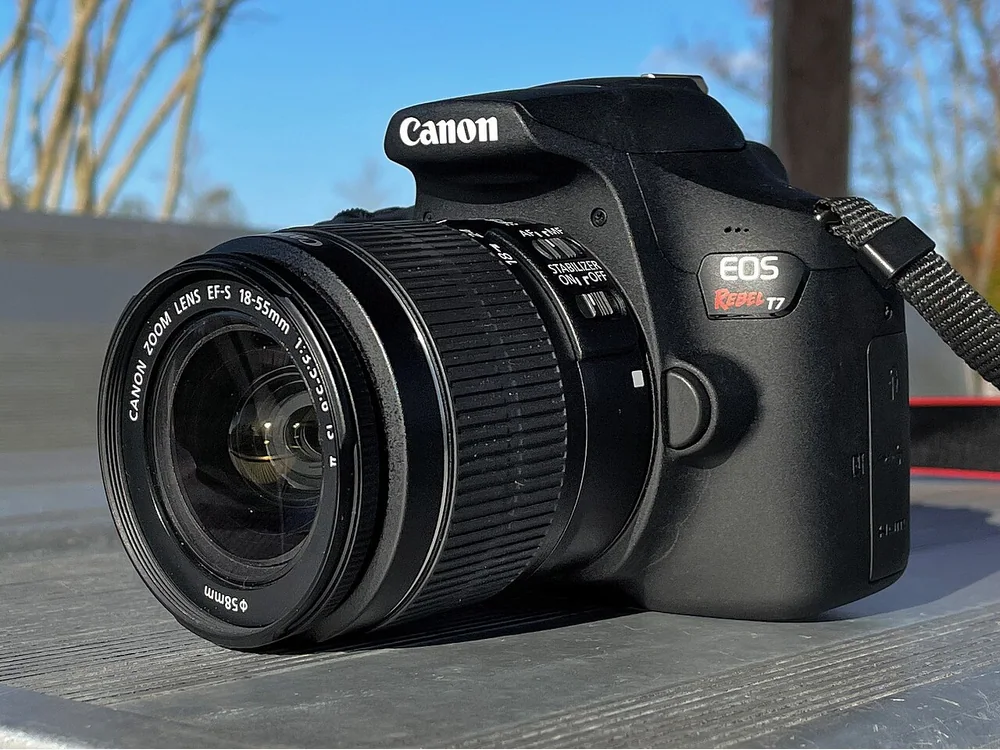

EOS 2000D / Rebel T7

Dimensions: 5.1 x 4.0 x 3.1 in (129 x 101.3 x 77.6 mm)
Weight: 16.8 oz (475 g)

APS-CCanon EF-S1.01 L envelope

View source

Entry DSLR2018Archive

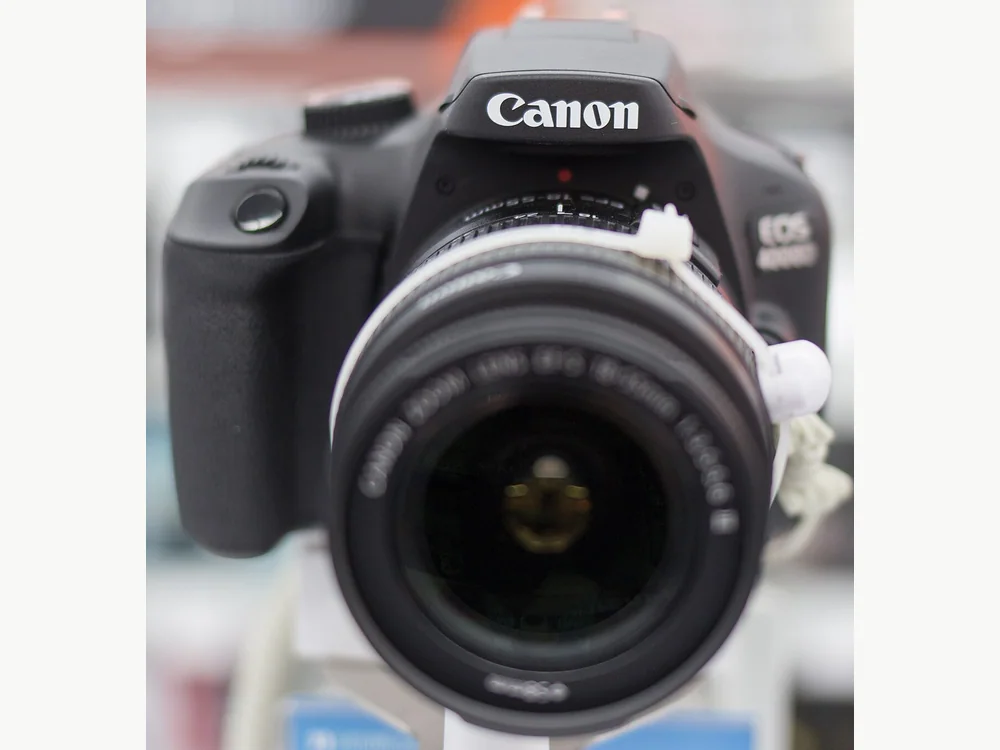

EOS 4000D

Dimensions: 5.1 x 4.0 x 3.0 in (129 x 101.6 x 77.1 mm)
Weight: 15.4 oz (436 g)

APS-CCanon EF-S1.01 L envelope

View source

Enthusiast DSLR2017Archive

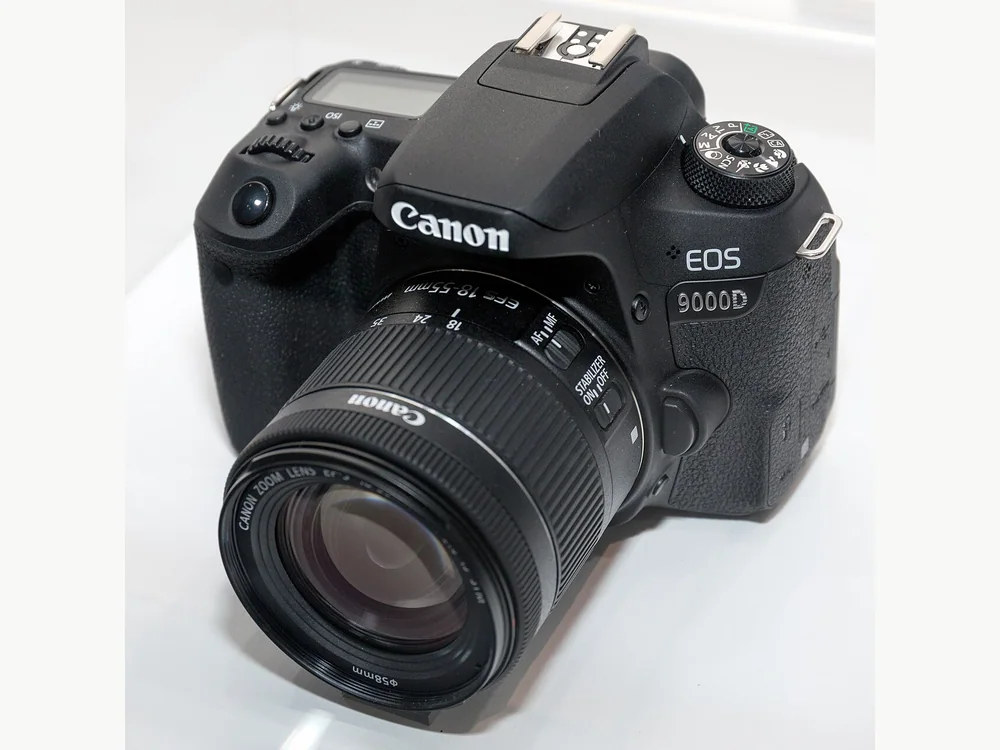

EOS 77D

Dimensions: 5.2 x 3.9 x 3.0 in (131 x 99.9 x 76.2 mm)
Weight: 19.0 oz (540 g)

APS-CCanon EF-S1.00 L envelope

View source

Entry DSLR2017Archive

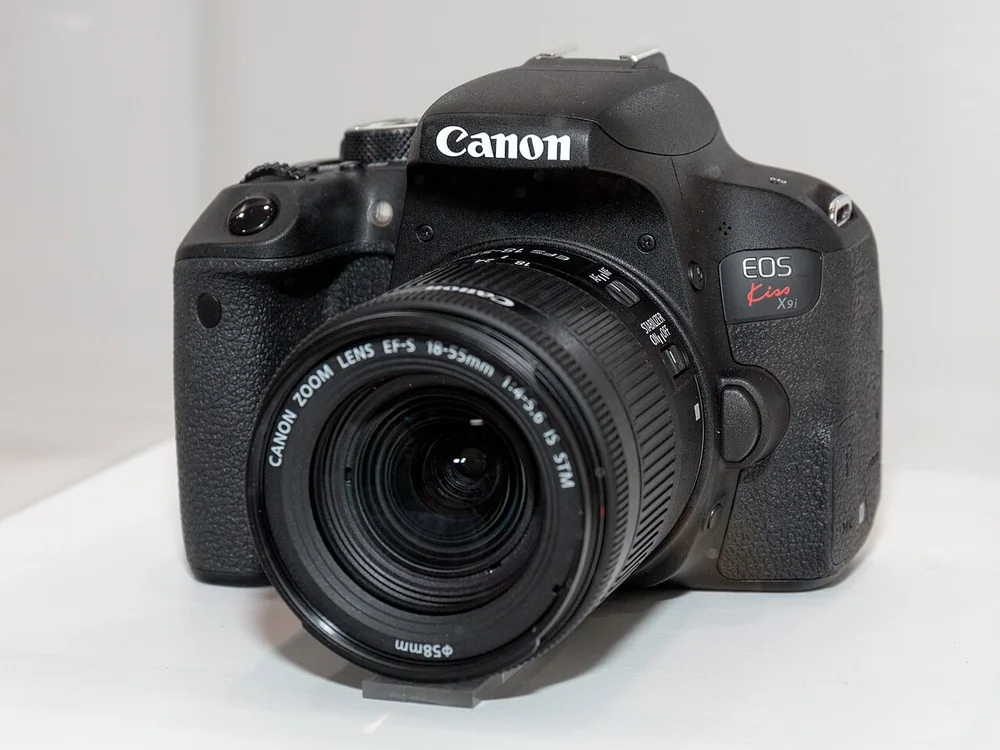

EOS 800D / Rebel T7i

Dimensions: 5.2 x 3.9 x 3.0 in (131 x 99.9 x 76.2 mm)
Weight: 18.8 oz (532 g)

APS-CCanon EF-S1.00 L envelope

View source

Entry DSLR2016Archive

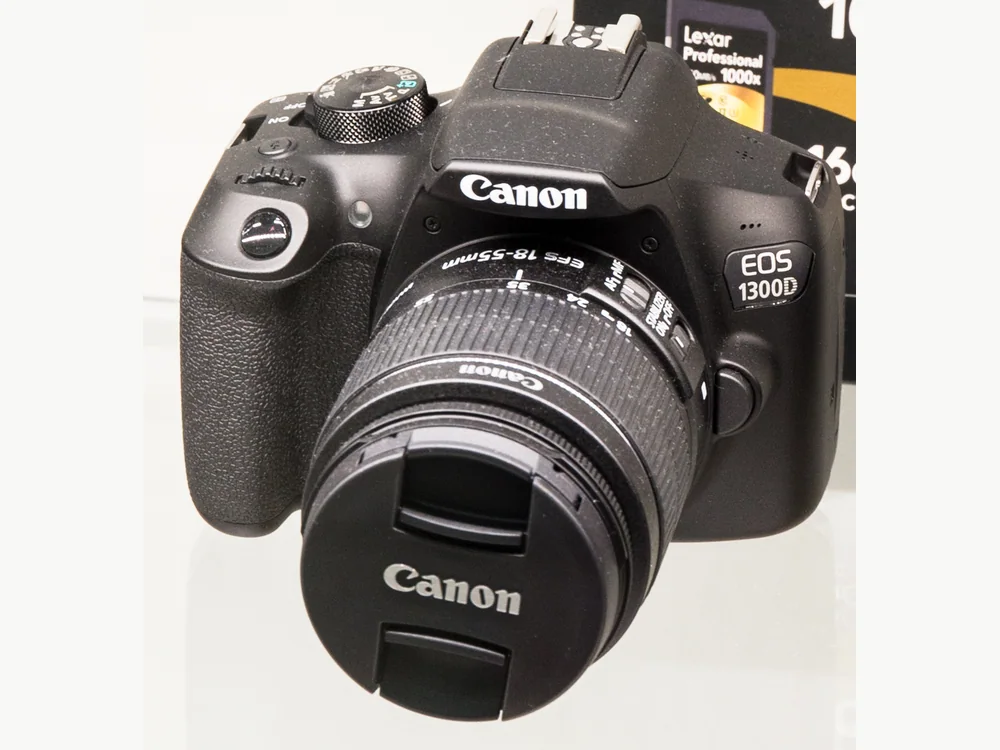

EOS 1300D / Rebel T6

Dimensions: 5.1 x 4.0 x 3.1 in (129 x 101.3 x 77.6 mm)
Weight: 17.1 oz (485 g)

APS-CCanon EF-S1.01 L envelope

View source

Entry DSLR2015Archive

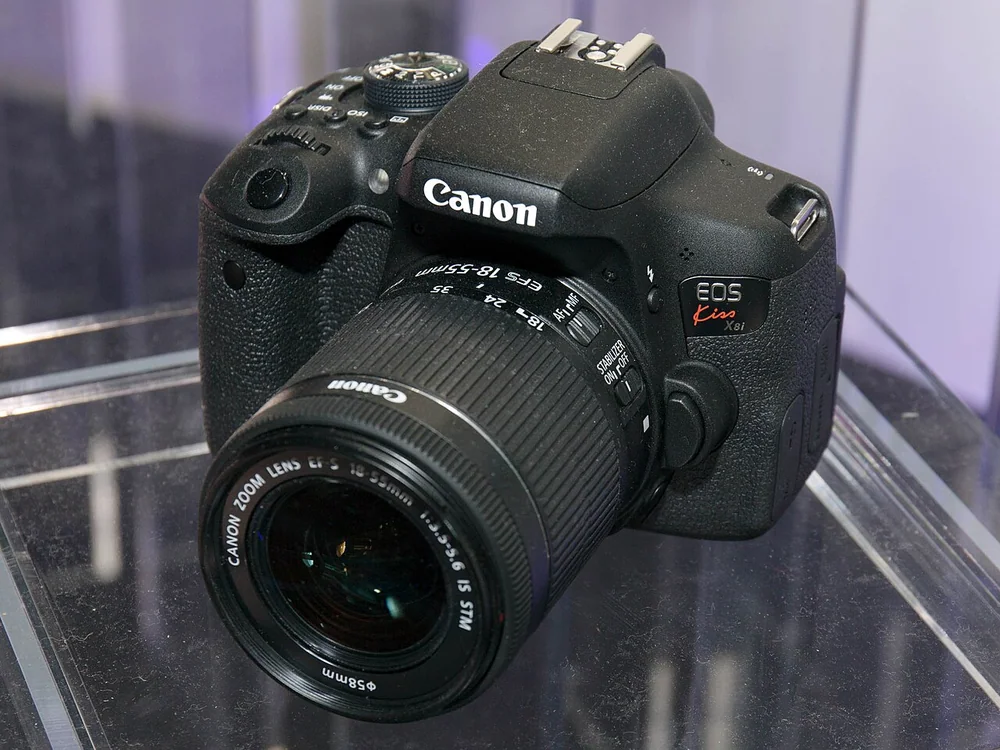

EOS 750D / Rebel T6i

Dimensions: 5.2 x 4.0 x 3.1 in (131.9 x 100.7 x 77.8 mm)
Weight: 19.6 oz (555 g)

APS-CCanon EF-S1.03 L envelope

View source

Entry DSLR2015Archive

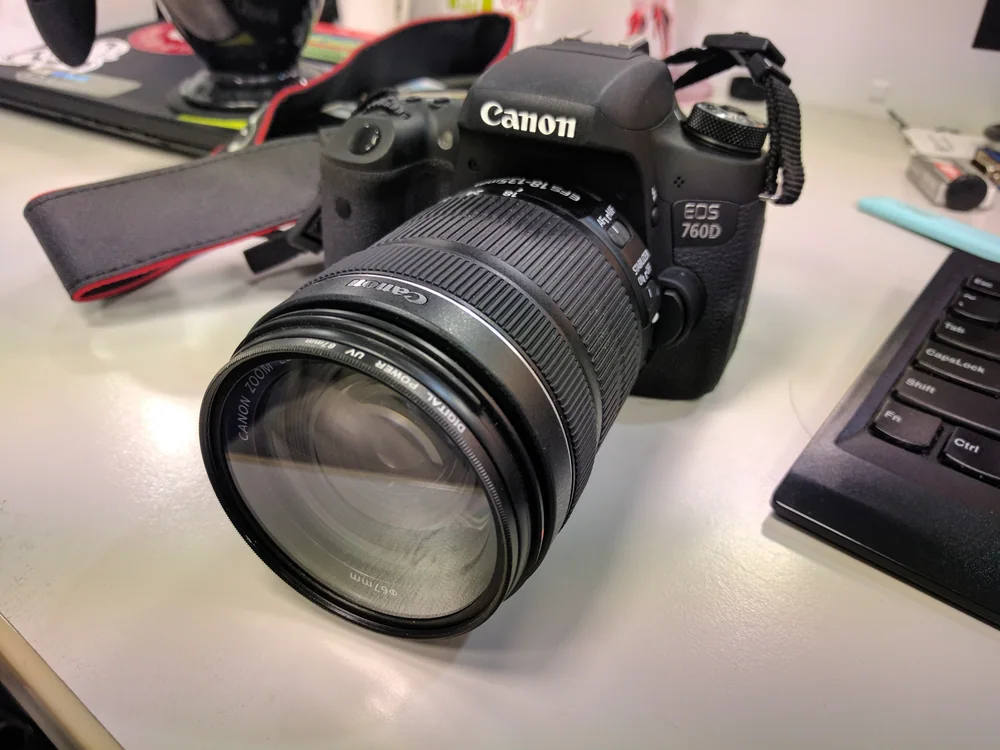

EOS 760D / Rebel T6s

Dimensions: 5.2 x 4.0 x 3.1 in (131.9 x 100.9 x 77.8 mm)
Weight: 19.9 oz (565 g)

APS-CCanon EF-S1.04 L envelope

View source

Premium bridge camera2015Archive

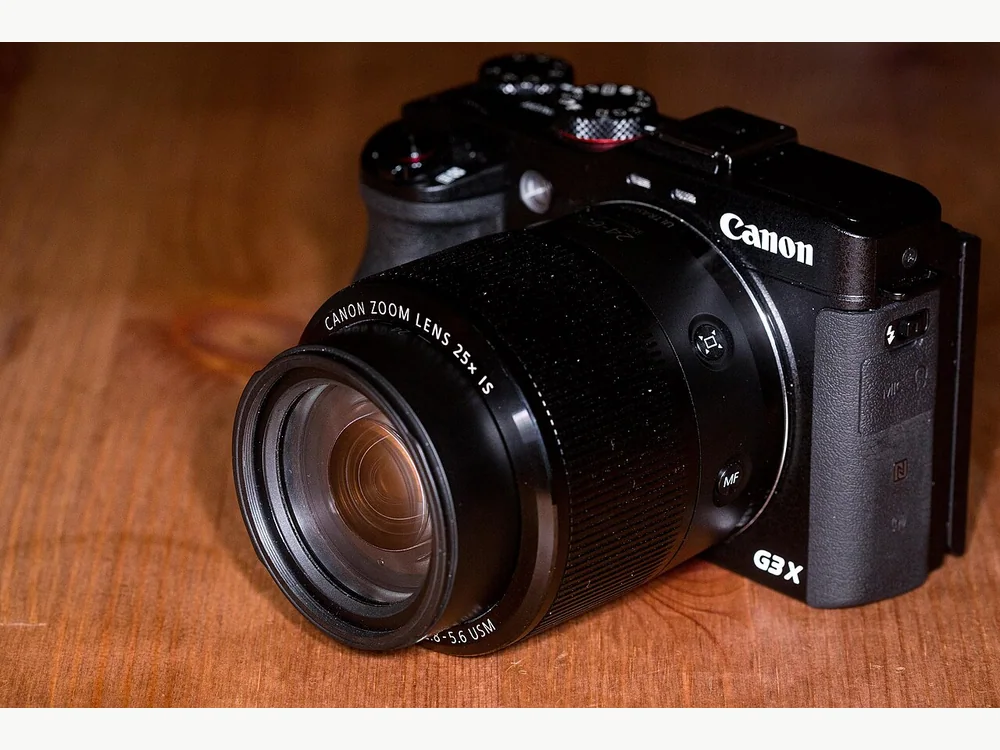

PowerShot G3 X

Dimensions: 4.9 x 3.0 x 4.1 in (123.3 x 76.5 x 105.3 mm)
Weight: 25.9 oz (733 g)

1-inchFixed 24–600mm equiv.0.99 L envelope

View source

Entry DSLR2014Archive

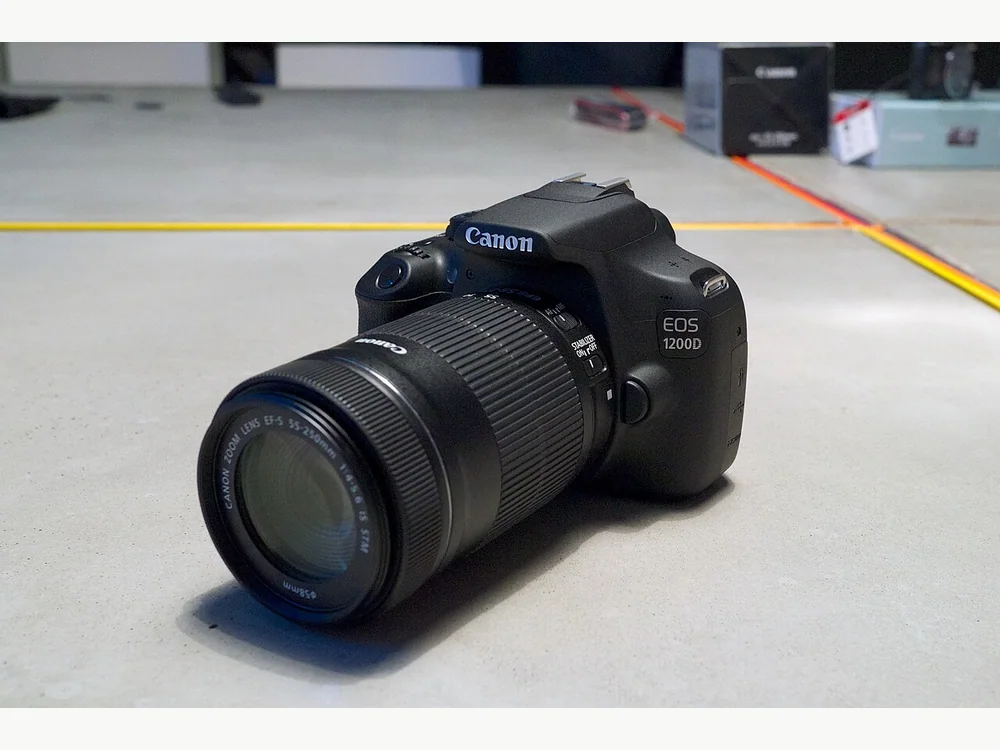

EOS 1200D / Rebel T5

Dimensions: 5.1 x 3.9 x 3.1 in (129.6 x 99.7 x 77.9 mm)
Weight: 16.9 oz (480 g)

APS-CCanon EF-S1.01 L envelope

View source

Entry DSLR2013Archive

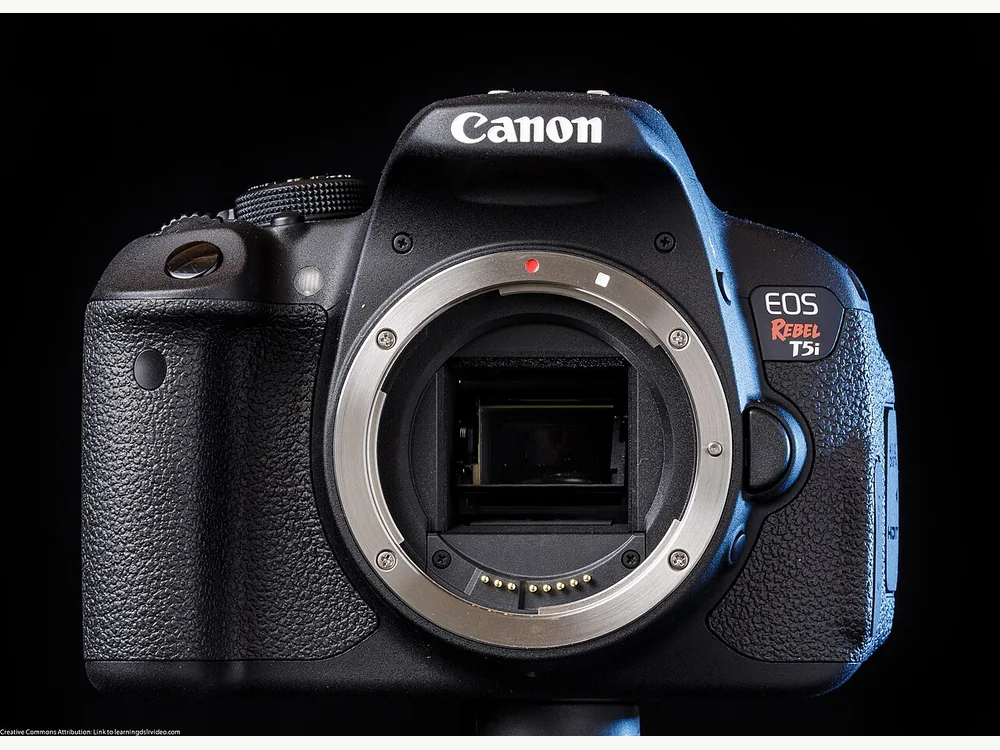

EOS 700D / Rebel T5i

Dimensions: 5.2 x 3.9 x 3.1 in (133.1 x 99.8 x 78.8 mm)
Weight: 20.5 oz (580 g)

APS-CCanon EF-S1.05 L envelope

View source

Entry DSLR2012Archive

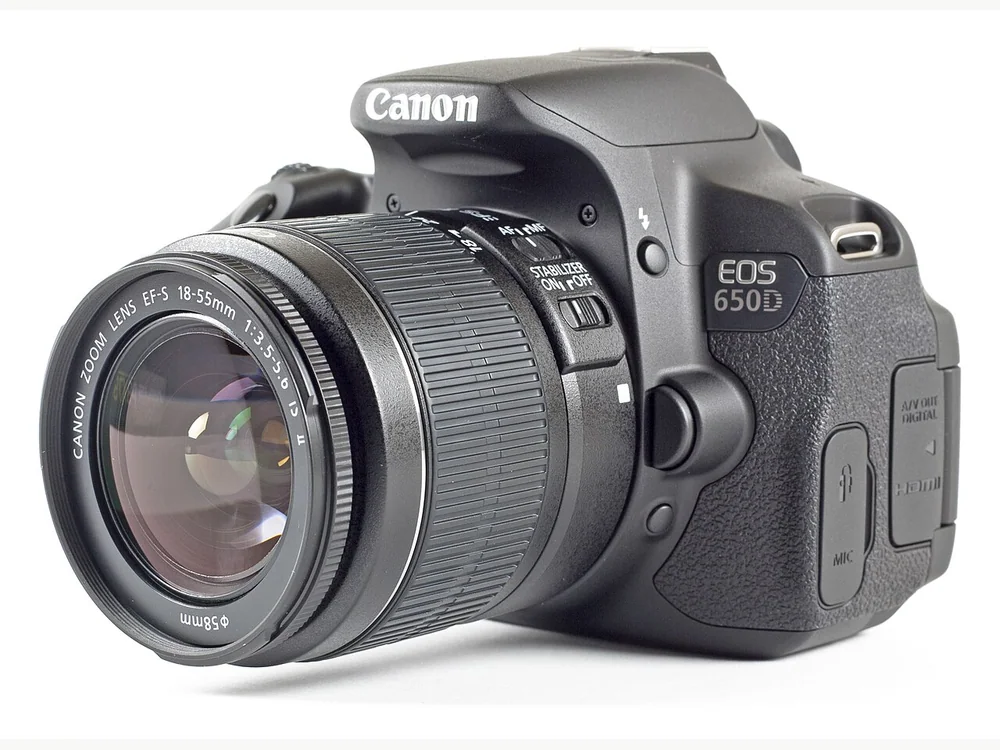

EOS 650D / Rebel T4i

Dimensions: 5.2 x 3.9 x 3.1 in (133.1 x 99.8 x 78.8 mm)
Weight: 20.3 oz (575 g)

APS-CCanon EF-S1.05 L envelope

View source

1.10–1.59 L

Large

15 archived

EOS R mirrorless2020Archive

EOS R5

Dimensions: 5.5 x 3.8 x 3.5 in (138.5 x 97.5 x 88.4 mm)
Weight: 26.0 oz (738 g)

Full frameCanon RF1.19 L envelope

View source

EOS R mirrorless2020Archive

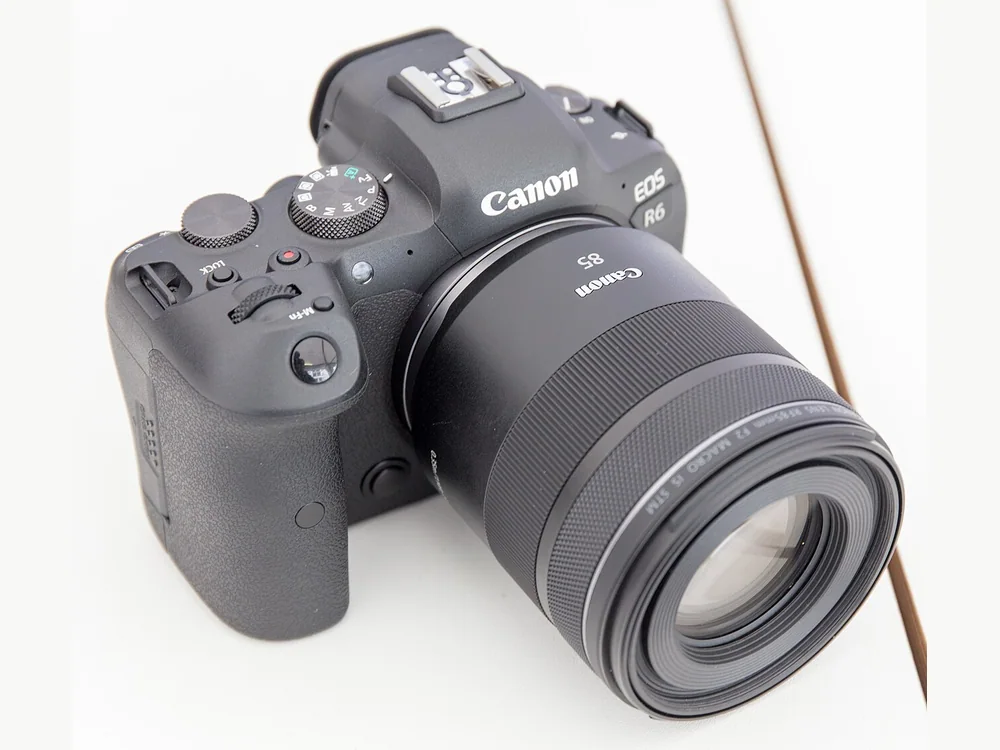

EOS R6

Dimensions: 5.4 x 3.8 x 3.5 in (138.4 x 97.5 x 88.4 mm)
Weight: 24.0 oz (680 g)

Full frameCanon RF1.19 L envelope

View source

Enthusiast DSLR2019Archive

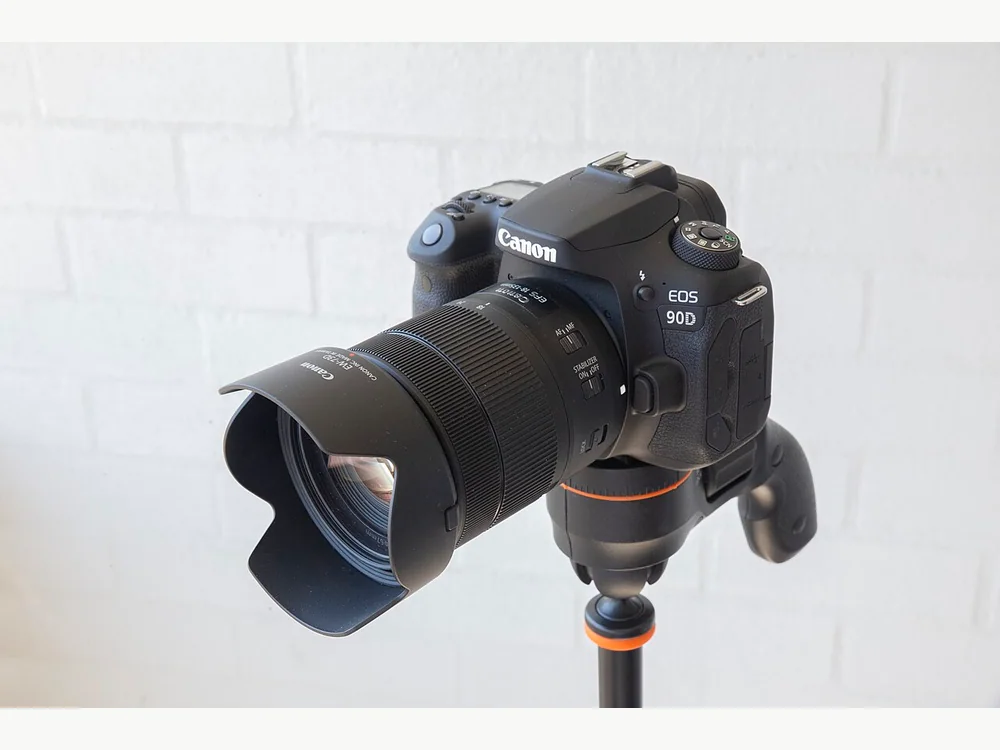

EOS 90D

Dimensions: 5.5 x 4.1 x 3.0 in (140.7 x 104.8 x 76.8 mm)
Weight: 24.7 oz (701 g)

APS-CCanon EF-S1.13 L envelope

View source

EOS R mirrorless2018Archive

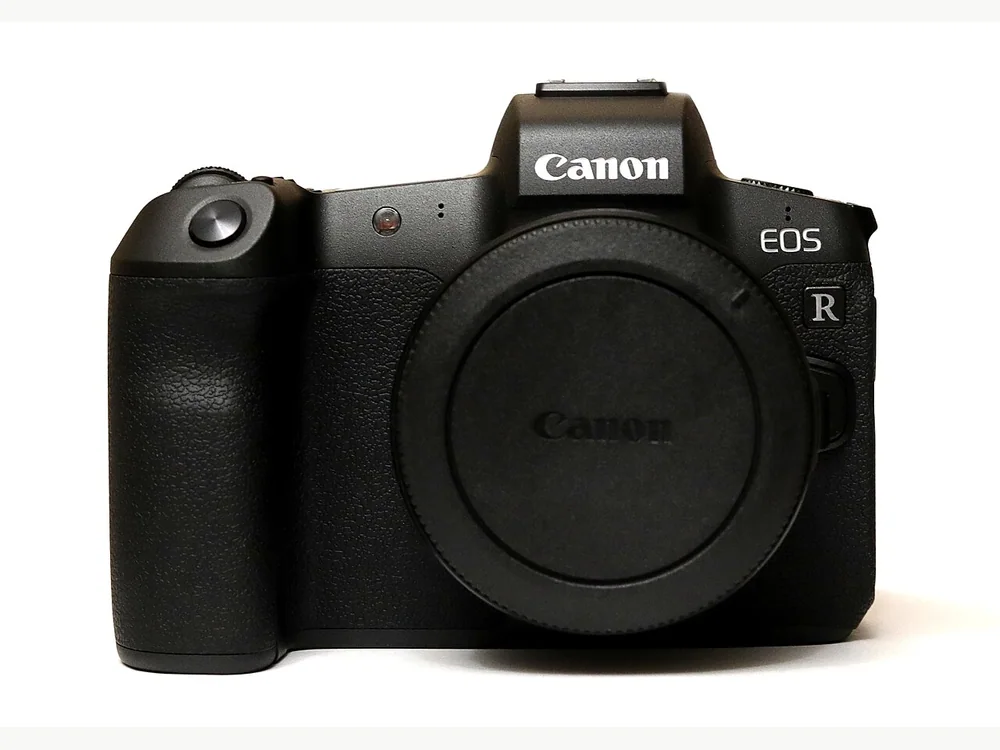

EOS R

Dimensions: 5.3 x 3.9 x 3.3 in (135.8 x 98.3 x 84.4 mm)
Weight: 23.3 oz (660 g)

Full frameCanon RF1.13 L envelope

View source

Full-frame DSLR2017Archive

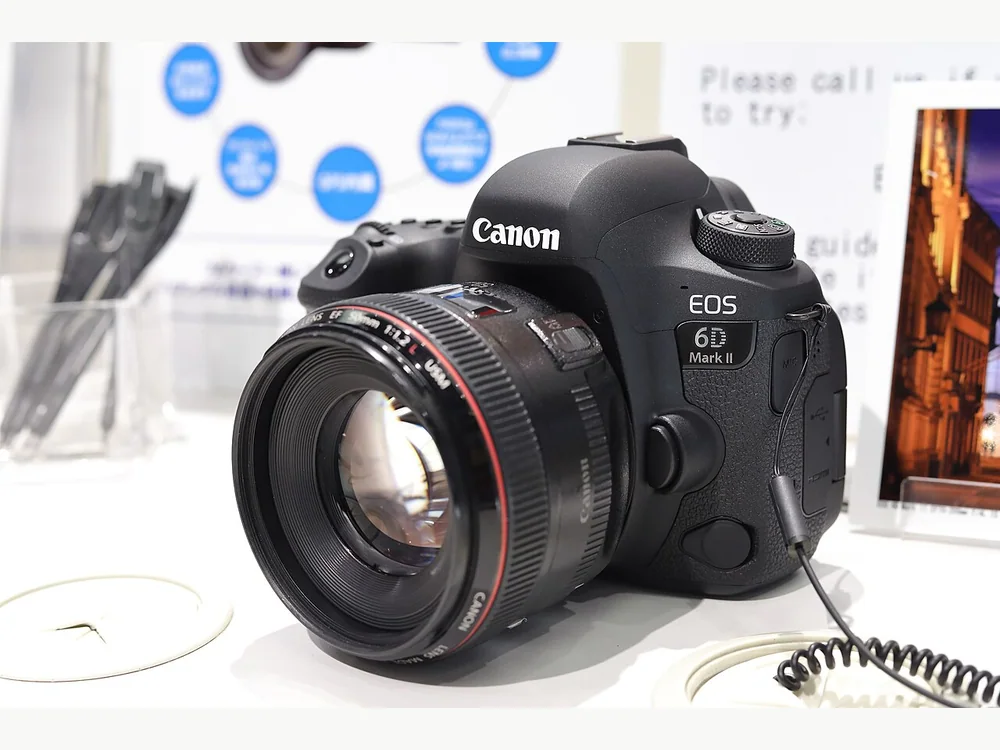

EOS 6D Mark II

Dimensions: 5.7 x 4.4 x 2.9 in (144 x 110.5 x 74.8 mm)
Weight: 27.0 oz (765 g)

Full frameCanon EF1.19 L envelope

View source

Professional DSLR2016Archive

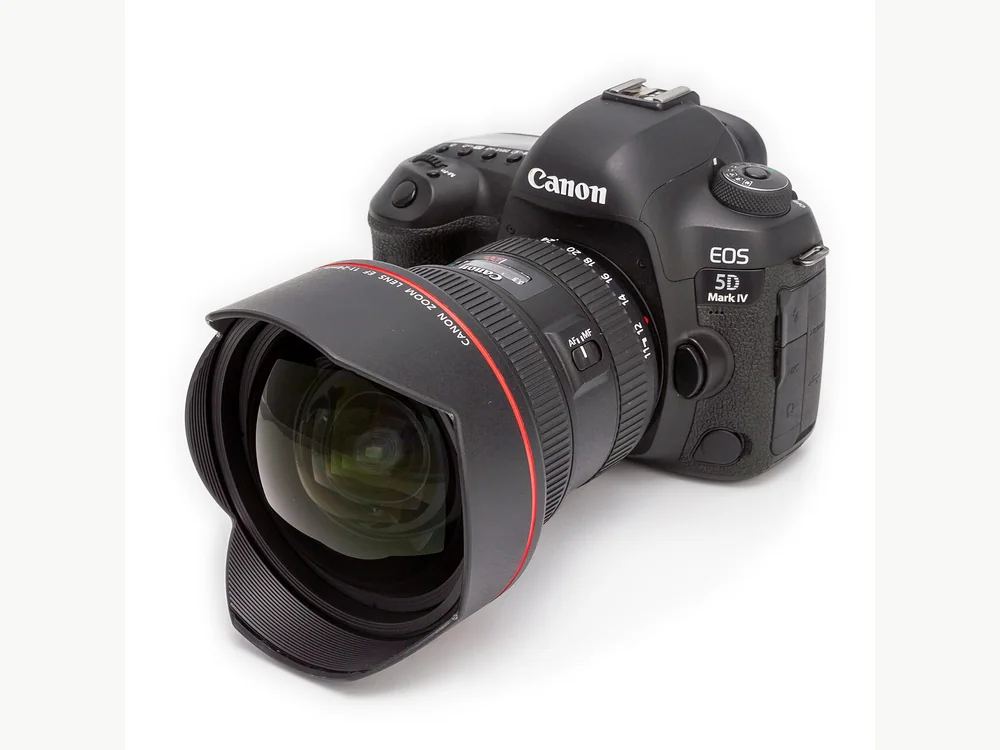

EOS 5D Mark IV

Dimensions: 5.9 x 4.6 x 3.0 in (150.7 x 116.4 x 75.9 mm)
Weight: 31.4 oz (890 g)

Full frameCanon EF1.33 L envelope

View source

Enthusiast DSLR2016Archive

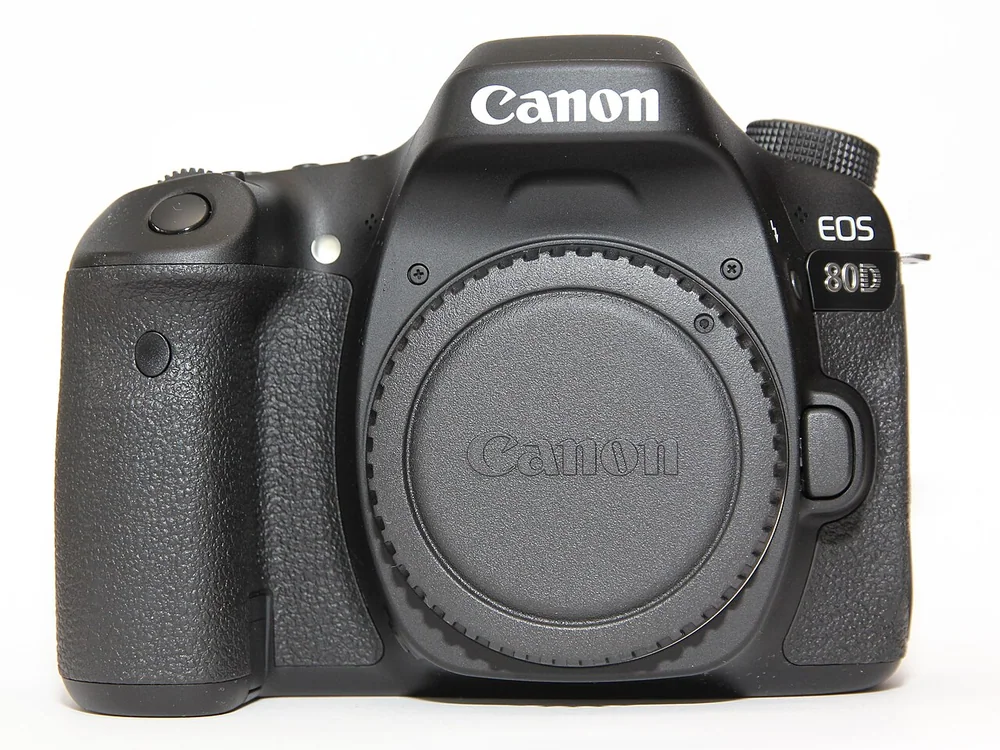

EOS 80D

Dimensions: 5.5 x 4.1 x 3.1 in (139 x 105.2 x 78.5 mm)
Weight: 25.8 oz (730 g)

APS-CCanon EF-S1.15 L envelope

View source

High-resolution DSLR2015Archive

EOS 5DS

Dimensions: 6.0 x 4.6 x 3.0 in (152 x 116.4 x 76.4 mm)
Weight: 32.8 oz (930 g)

Full frameCanon EF1.35 L envelope

View source

High-resolution DSLR2015Archive

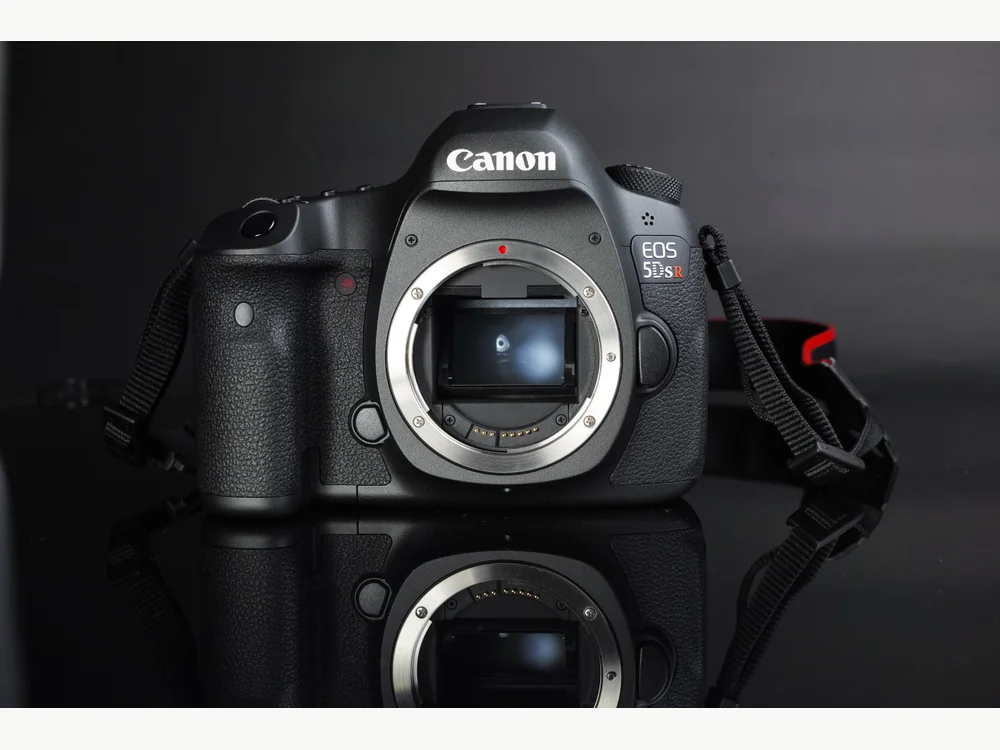

EOS 5DS R

Dimensions: 6.0 x 4.6 x 3.0 in (152 x 116.4 x 76.4 mm)
Weight: 32.8 oz (930 g)

Full frameCanon EF1.35 L envelope

View source

Enthusiast DSLR2014Archive

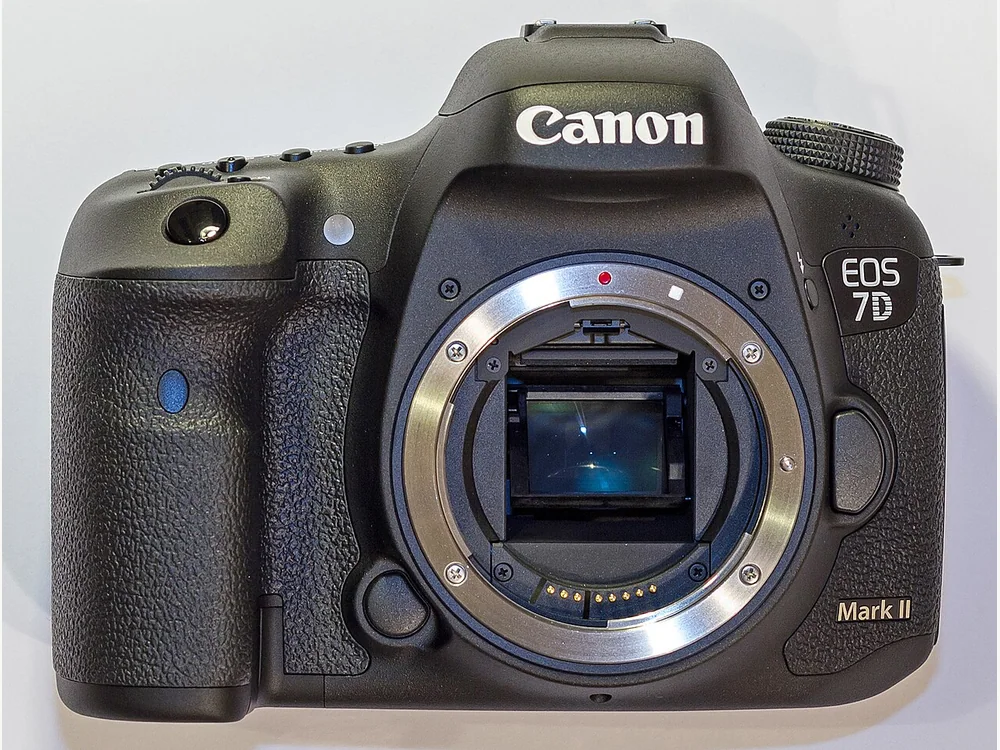

EOS 7D Mark II

Dimensions: 5.9 x 4.4 x 3.1 in (148.6 x 112.4 x 78.2 mm)
Weight: 32.1 oz (910 g)

APS-CCanon EF-S1.31 L envelope

View source

Bridge camera2014Archive

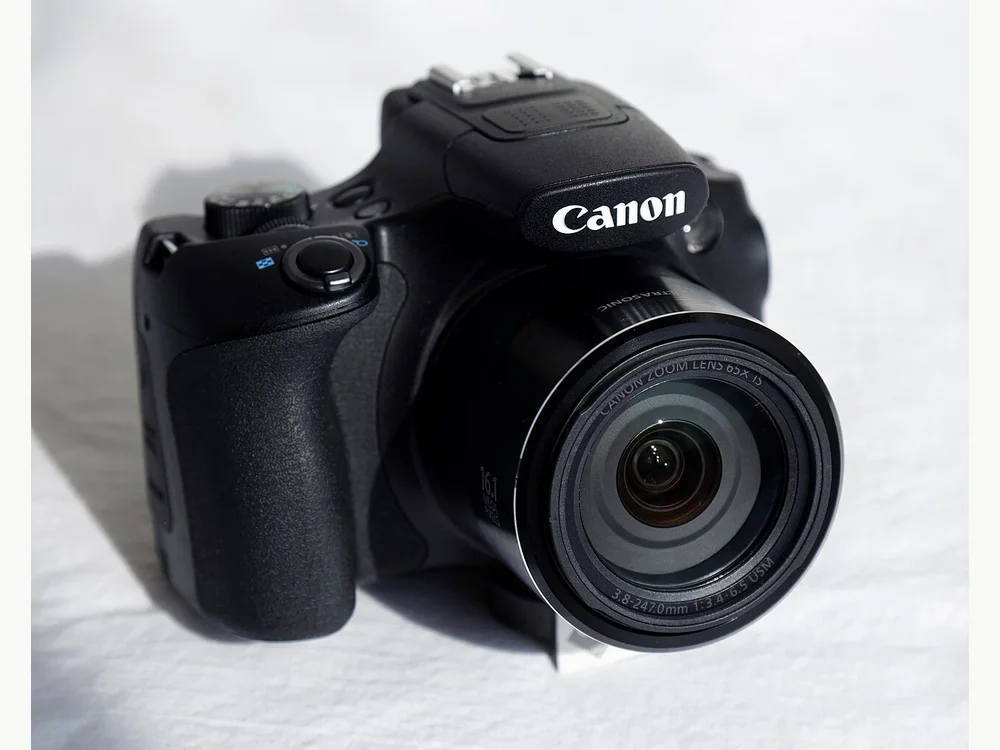

PowerShot SX60 HS

Dimensions: 5.0 x 3.6 x 4.5 in (127.6 x 92.6 x 114.3 mm)
Weight: 22.9 oz (650 g)

1/2.3 inFixed 21–1365mm equiv.1.35 L envelope

View source

Enthusiast DSLR2013Archive

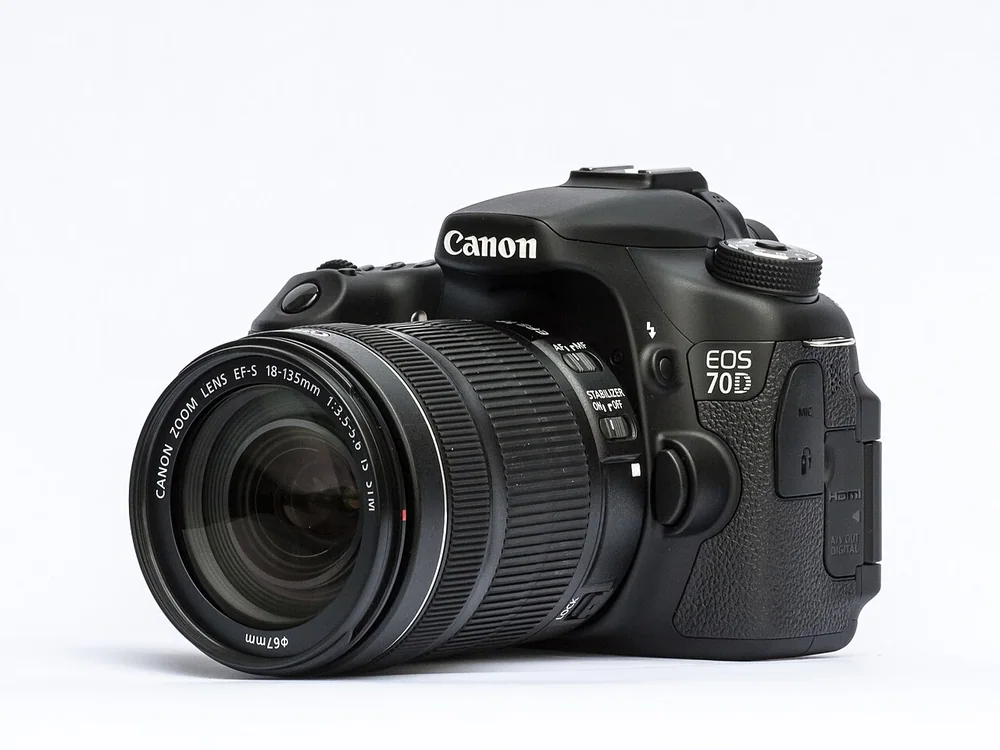

EOS 70D

Dimensions: 5.5 x 4.1 x 3.1 in (139 x 104.3 x 78.5 mm)
Weight: 26.6 oz (755 g)

APS-CCanon EF-S1.14 L envelope

View source

Professional DSLR2012Archive

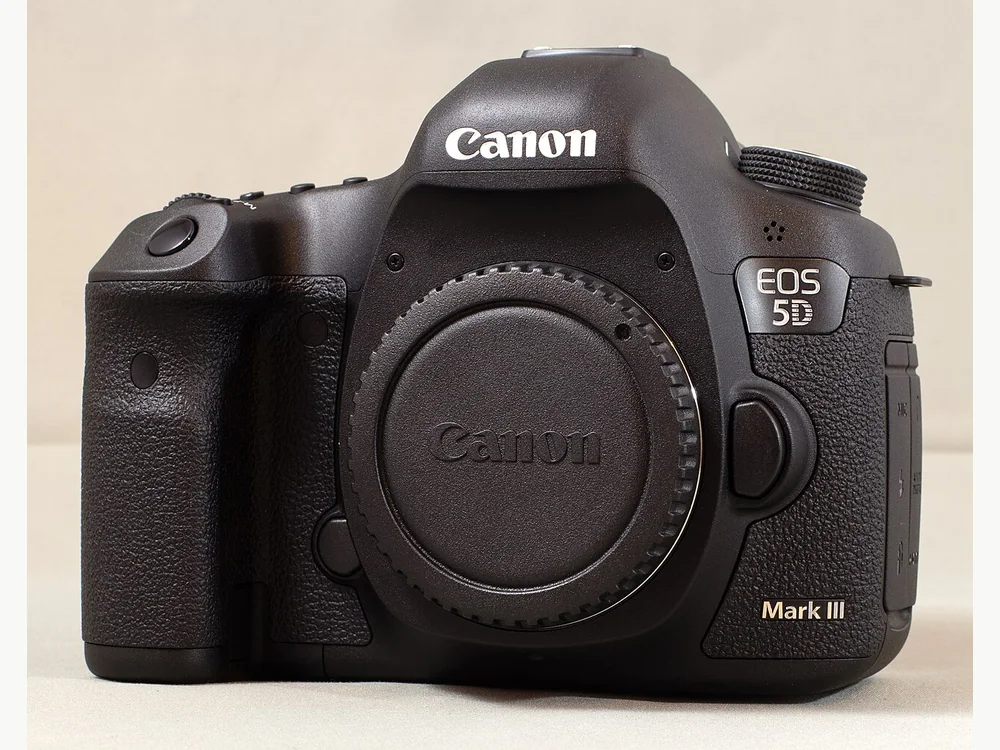

EOS 5D Mark III

Dimensions: 6.0 x 4.6 x 3.0 in (152 x 116.4 x 76.4 mm)
Weight: 33.5 oz (950 g)

Full frameCanon EF1.35 L envelope

View source

Full-frame DSLR2012Archive

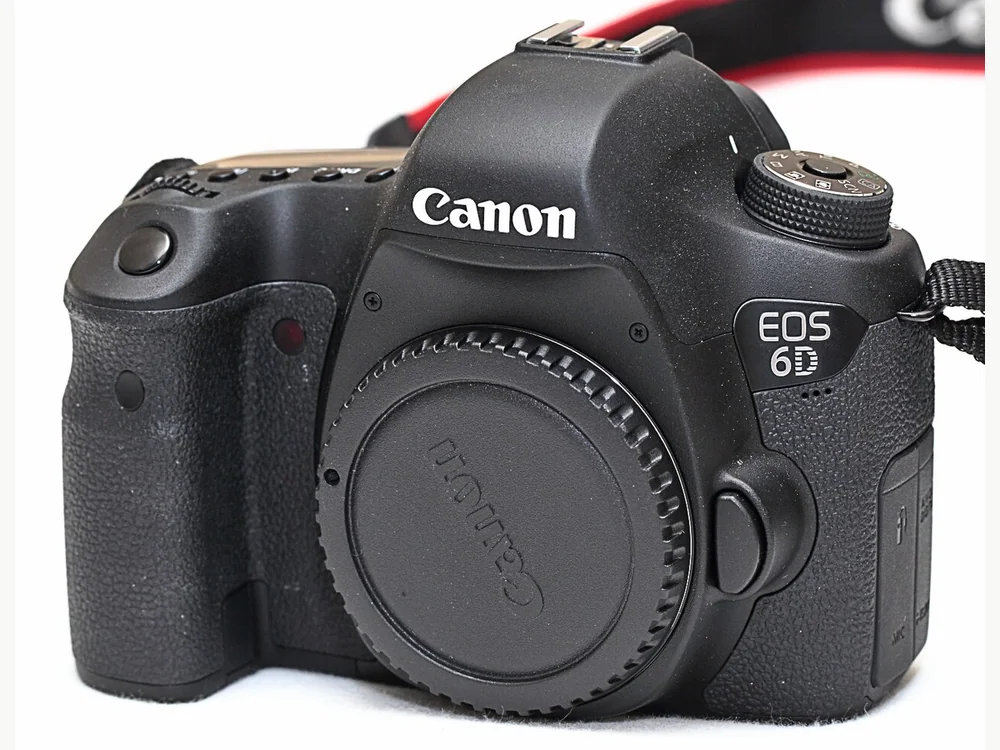

EOS 6D

Dimensions: 5.7 x 4.4 x 2.8 in (144.5 x 110.5 x 71.2 mm)
Weight: 27.2 oz (770 g)

Full frameCanon EF1.14 L envelope

View source

Bridge camera2012Archive

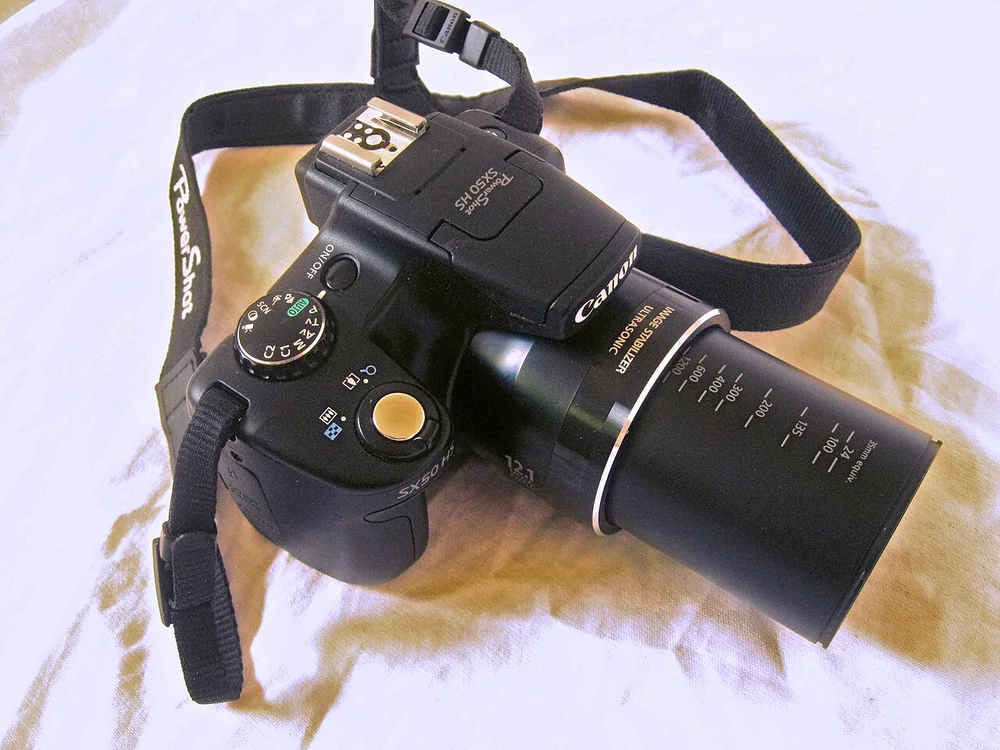

PowerShot SX50 HS

Dimensions: 4.8 x 3.4 x 4.2 in (122.5 x 87.3 x 105.5 mm)
Weight: 21.0 oz (595 g)

1/2.3 inFixed 24–1200mm equiv.1.13 L envelope

View source

1.60 L and over

Extra large

3 archived

Professional DSLR2020Archive

EOS-1D X Mark III

Dimensions: 6.2 x 6.6 x 3.3 in (158 x 167.6 x 82.6 mm)
Weight: 50.8 oz (1,440 g)

Full frameCanon EF2.19 L envelope

View source

Professional DSLR2016Archive

EOS-1D X Mark II

Dimensions: 6.2 x 6.6 x 3.3 in (158 x 167.6 x 82.6 mm)
Weight: 54.0 oz (1,530 g)

Full frameCanon EF2.19 L envelope

View source

Cinema DSLR2012Archive

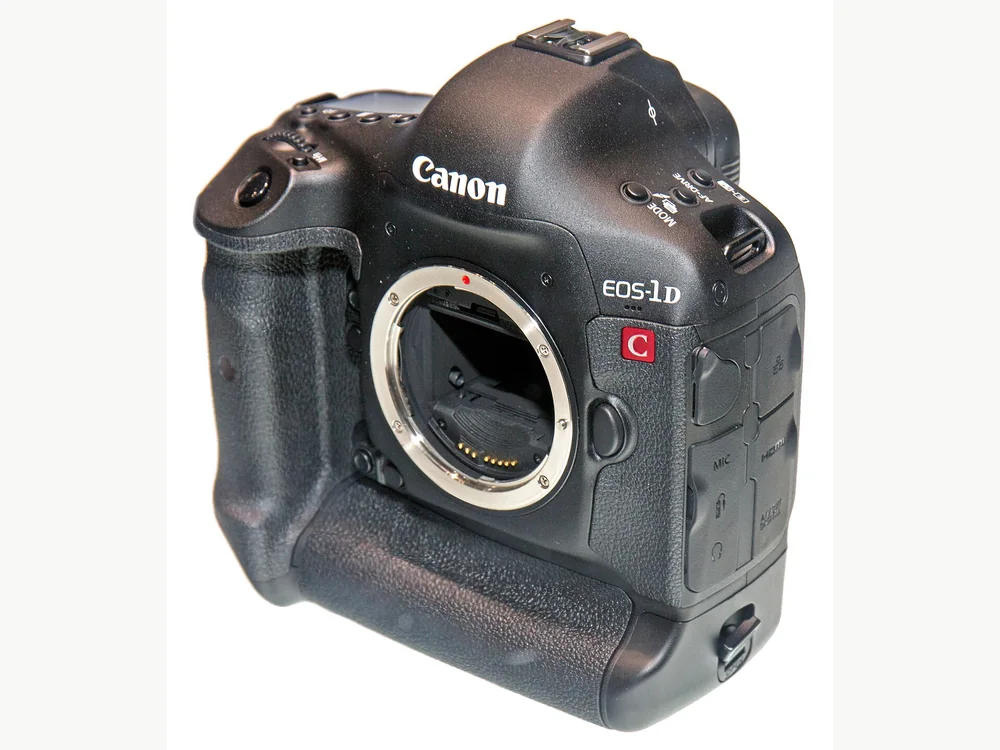

EOS-1D C

Dimensions: 6.2 x 6.4 x 3.3 in (158 x 163.6 x 82.7 mm)
Weight: 54.3 oz (1,540 g)

Full frameCanon EF2.14 L envelope

View source

Dimensions and weights link to manufacturer specifications or established references. Weights generally include the battery and memory card. Product ranges change, so use the linked source when millimetre-perfect fit is critical.
