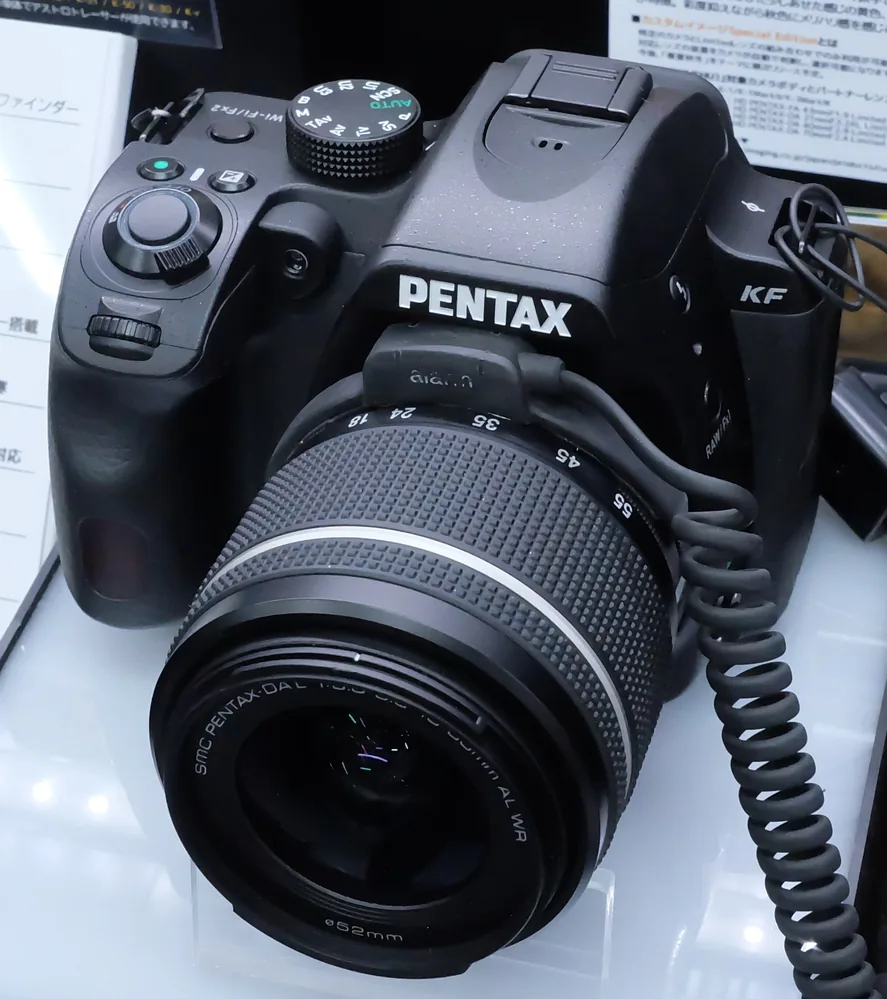

KF
- Dimensions
- 4.9 x 3.7 x 2.9 in (125.5 x 93 x 74 mm)
- Weight
- 24.1 oz (684 g)
APS-CPentax K0.86 L envelope
View source PENTAX / BODY SIZE GUIDE
Pentax cameras, sized for the bag
K and 645 DSLRs, Q mirrorless and Pentax fixed-lens cameras. Body-only dimensions are shown width x height x depth, and cameras are grouped by their rectangular envelope for straightforward comparison.
3current models
20archive models
0.70–0.89 L
1 cameraSmall
0.90–1.09 L
1 cameraStandard

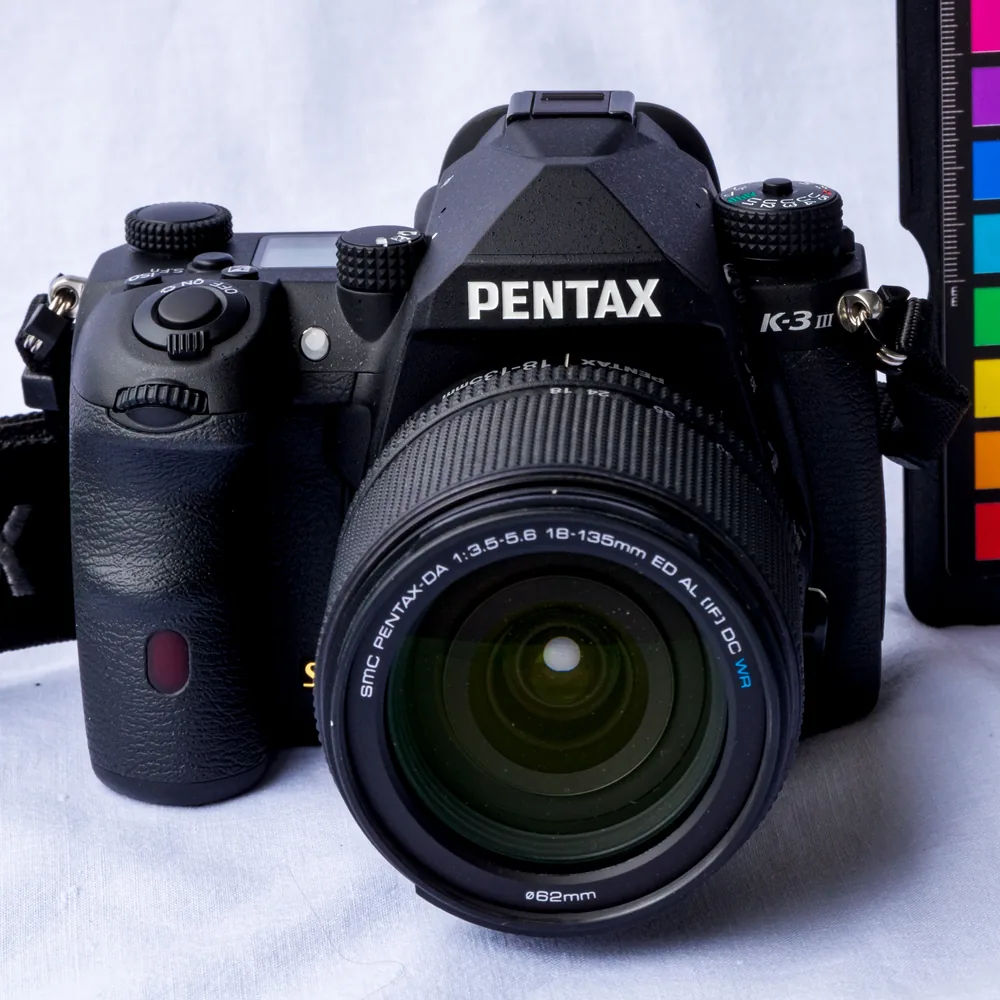

K-3 Mark III
- Dimensions
- 5.3 x 4.1 x 2.9 in (134.5 x 103.5 x 73.5 mm)
- Weight
- 28.9 oz (820 g)
APS-CPentax K1.02 L envelope
View source 1.10–1.59 L
1 cameraLarge

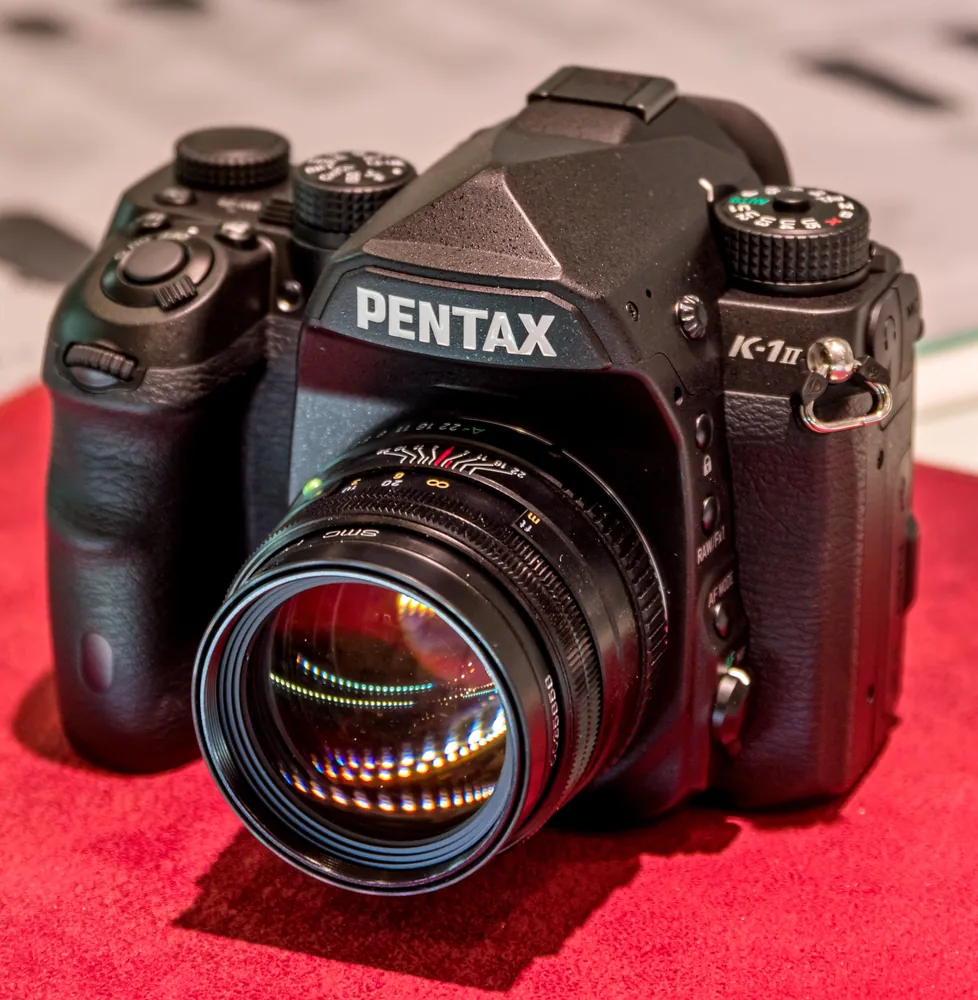

K-1 Mark II
- Dimensions
- 5.4 x 4.3 x 3.4 in (136.5 x 110 x 85.5 mm)
- Weight
- 35.6 oz (1,010 g)
Full framePentax K1.28 L envelope
View source ARCHIVE REFERENCE / NEWEST FIRST
20 camerasPentax archive
Under 0.70 L
6 archivedCompact

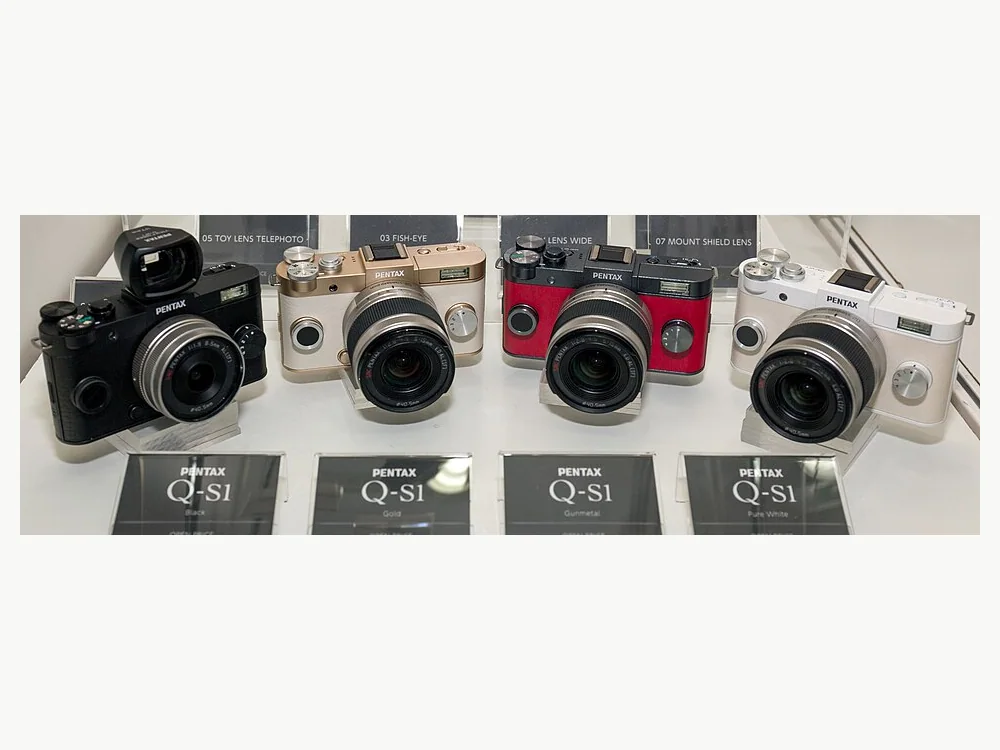

Q-S1
- Dimensions
- 4.1 x 2.3 x 1.3 in (105 x 58 x 34 mm)
- Weight
- 7.2 oz (203 g)
1/1.7 inPentax Q0.21 L envelope
View source MX-1
- Dimensions
- 4.8 x 2.4 x 2.0 in (122.5 x 60 x 51.5 mm)
- Weight
- 13.8 oz (391 g)
1/1.7 inFixed 28–112mm equiv.0.38 L envelope
View source

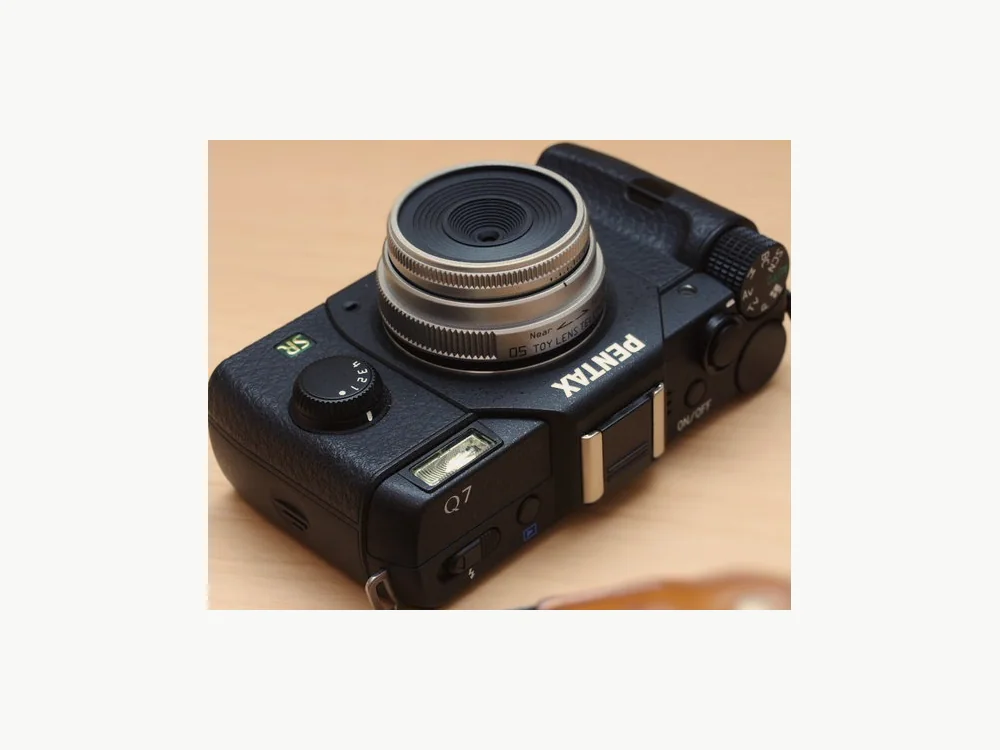

Q7
- Dimensions
- 4.0 x 2.3 x 1.3 in (102 x 58 x 33.5 mm)
- Weight
- 7.1 oz (200 g)
1/1.7 inPentax Q0.20 L envelope
View source WG-3
- Dimensions
- 4.9 x 2.5 x 1.3 in (125 x 64.5 x 32 mm)
- Weight
- 8.1 oz (229 g)
1/2.3 inFixed 25–100mm equiv.0.26 L envelope
View source Optio WG-2
- Dimensions
- 4.8 x 2.4 x 1.2 in (122.5 x 61.5 x 29.5 mm)
- Weight
- 6.8 oz (194 g)
1/2.3 inFixed 28–140mm equiv.0.22 L envelope
View source

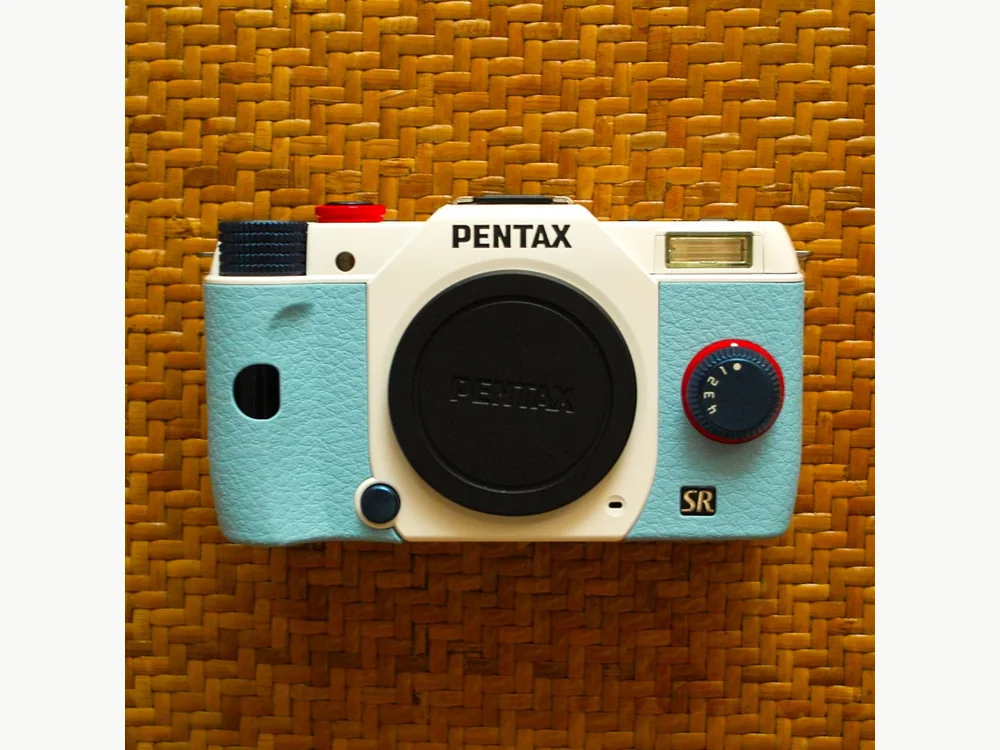

Q10
- Dimensions
- 4.0 x 2.3 x 1.3 in (102 x 58 x 33.5 mm)
- Weight
- 7.1 oz (200 g)
1/2.3 inPentax Q0.20 L envelope
View source 0.70–0.89 L
5 archivedSmall

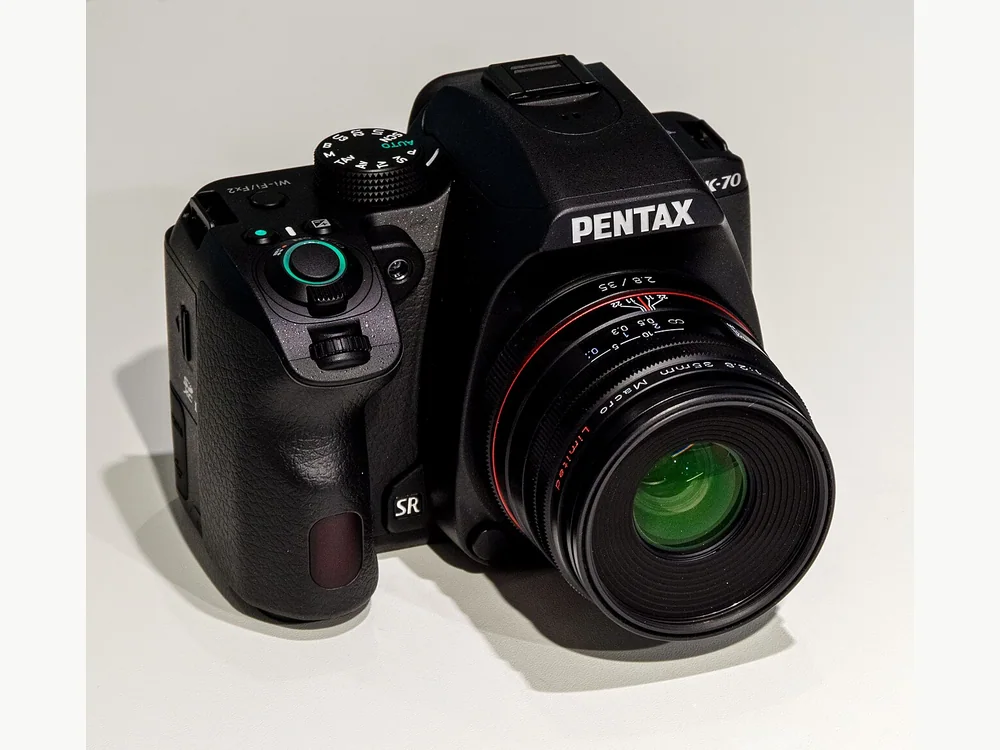

K-70
- Dimensions
- 4.9 x 3.7 x 2.9 in (125.5 x 93 x 74 mm)
- Weight
- 24.3 oz (688 g)
APS-CPentax K0.86 L envelope
View source

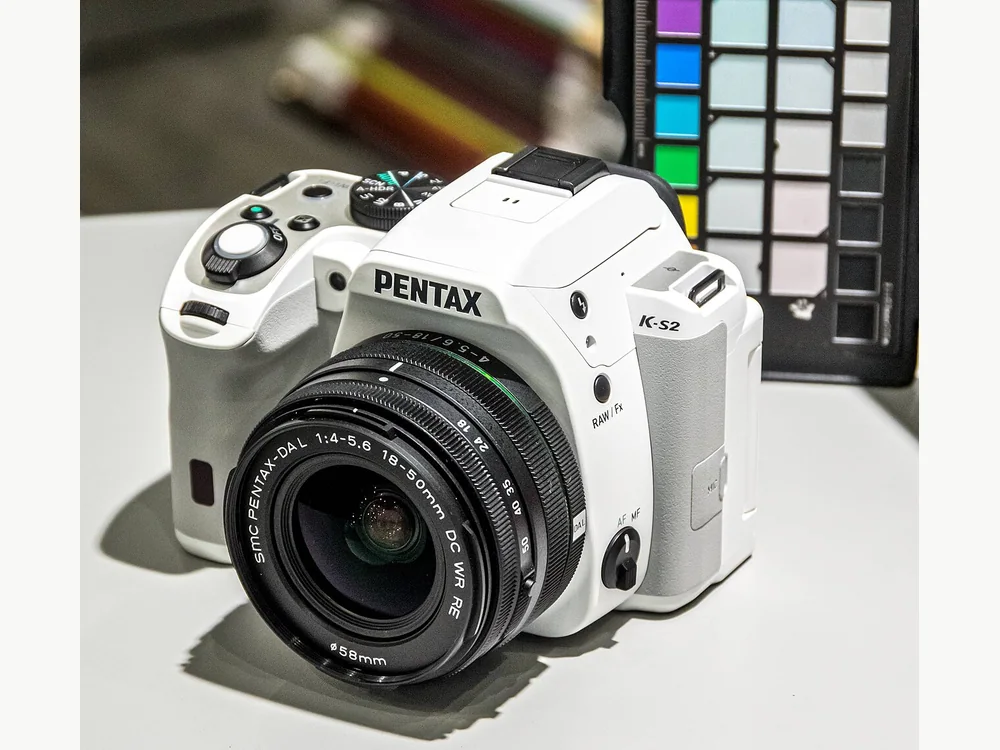

K-S2
- Dimensions
- 4.8 x 3.6 x 2.9 in (122.5 x 91 x 72.5 mm)
- Weight
- 23.9 oz (678 g)
APS-CPentax K0.81 L envelope
View source

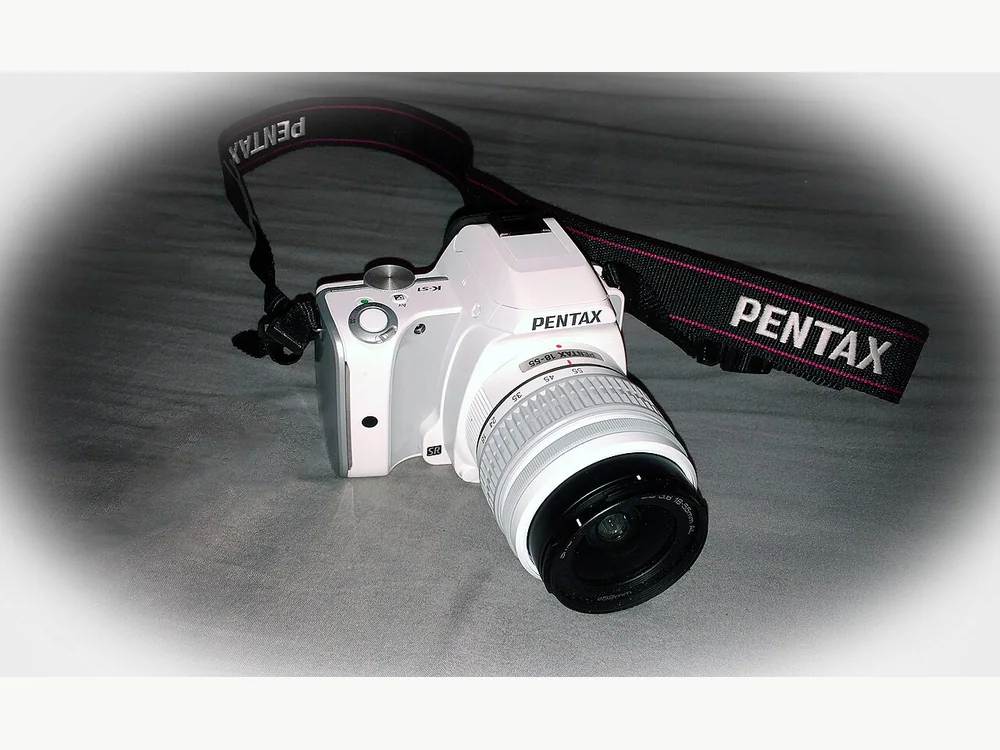

K-S1
- Dimensions
- 4.7 x 3.6 x 2.7 in (120 x 92.5 x 69.5 mm)
- Weight
- 19.7 oz (558 g)
APS-CPentax K0.77 L envelope
View source

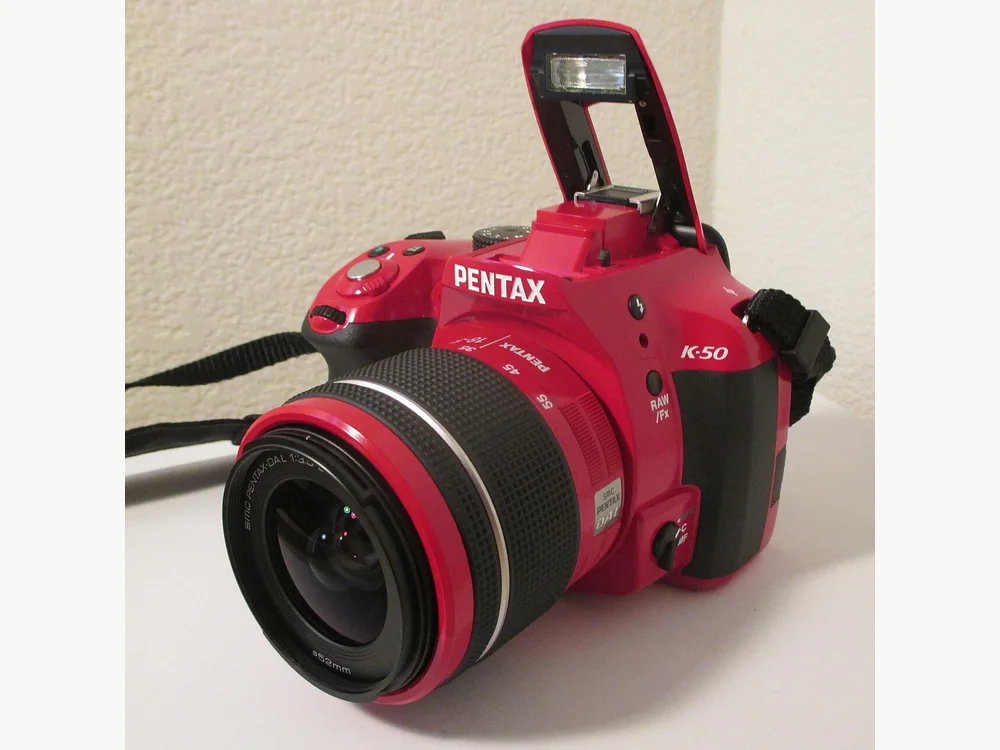

K-50
- Dimensions
- 5.1 x 3.8 x 2.8 in (129 x 96.5 x 70 mm)
- Weight
- 22.9 oz (650 g)
APS-CPentax K0.87 L envelope
View source

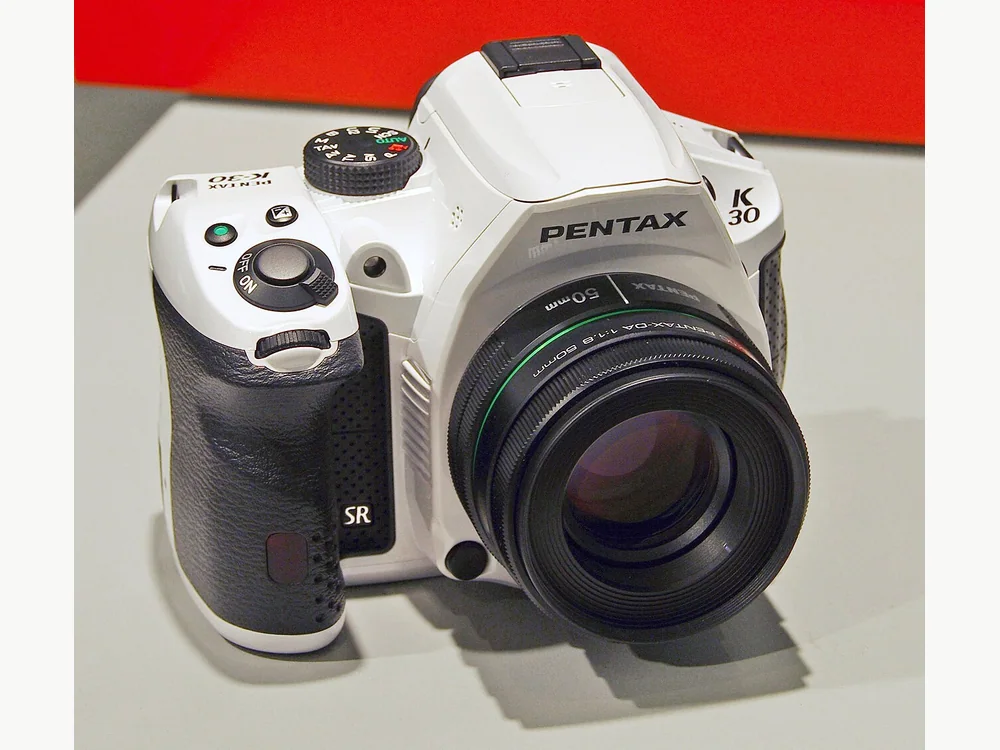

K-30
- Dimensions
- 5.1 x 3.8 x 2.8 in (128.5 x 96.5 x 71.5 mm)
- Weight
- 22.9 oz (650 g)
APS-CPentax K0.89 L envelope
View source 0.90–1.09 L
7 archivedStandard

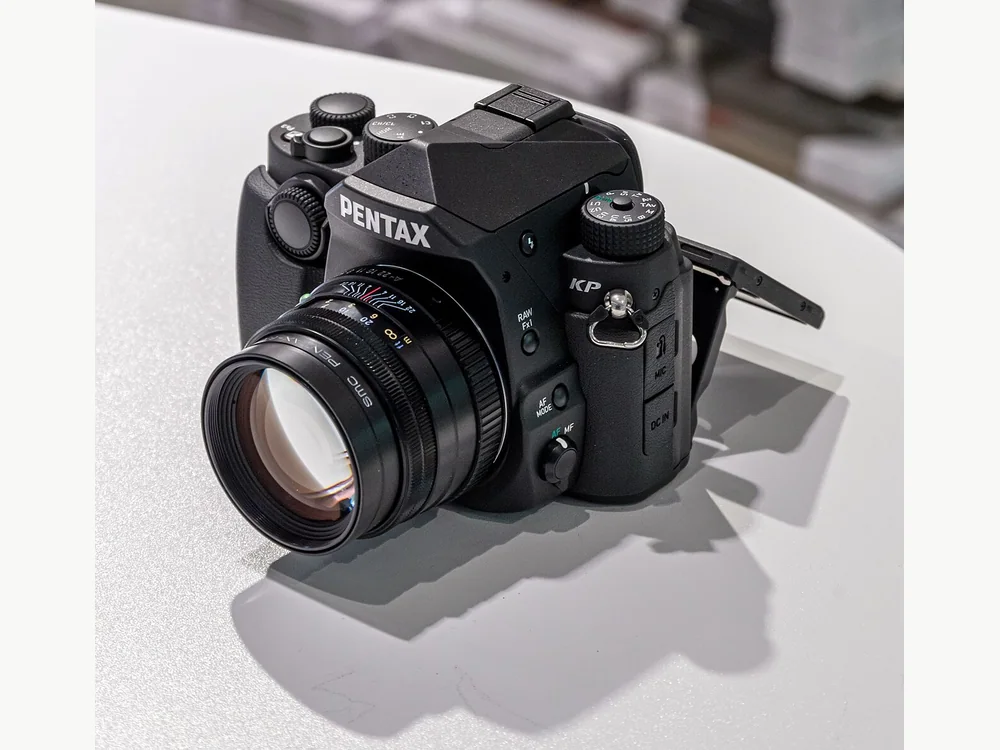

KP
- Dimensions
- 5.2 x 4.0 x 3.0 in (131.5 x 101 x 76 mm)
- Weight
- 24.8 oz (703 g)
APS-CPentax K1.01 L envelope
View source

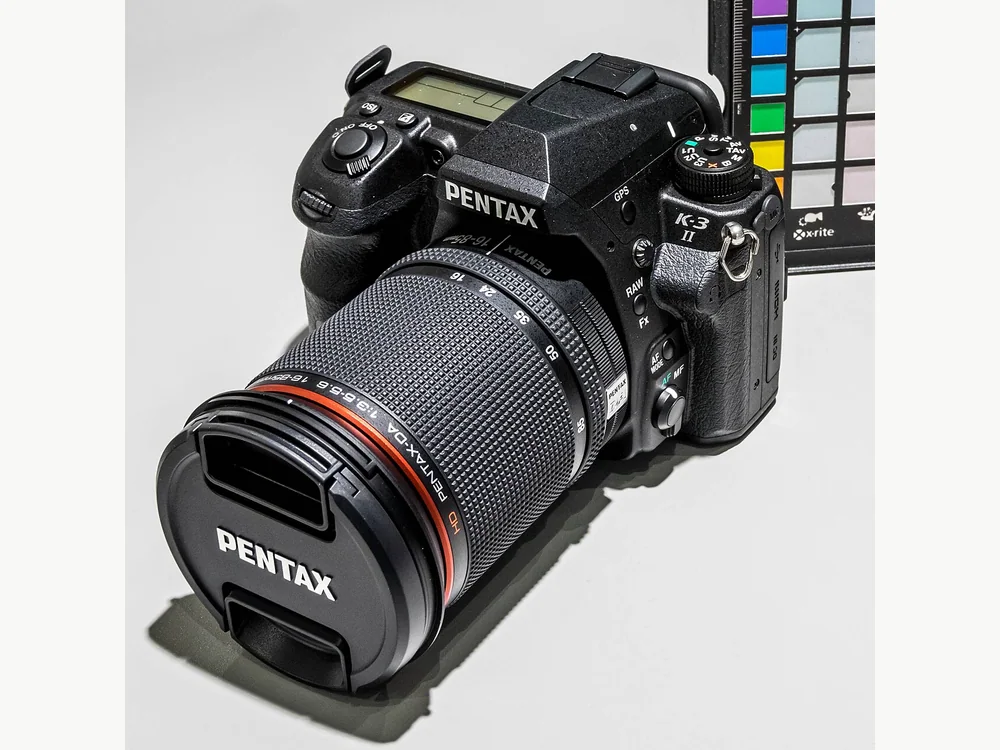

K-3 II
- Dimensions
- 5.2 x 4.0 x 3.1 in (131.5 x 102.5 x 77.5 mm)
- Weight
- 27.7 oz (785 g)
APS-CPentax K1.04 L envelope
View source XG-1
- Dimensions
- 4.7 x 3.5 x 3.8 in (119 x 89 x 97.5 mm)
- Weight
- 20.0 oz (567 g)
1/2.3 inFixed 24–1248mm equiv.1.03 L envelope
View source

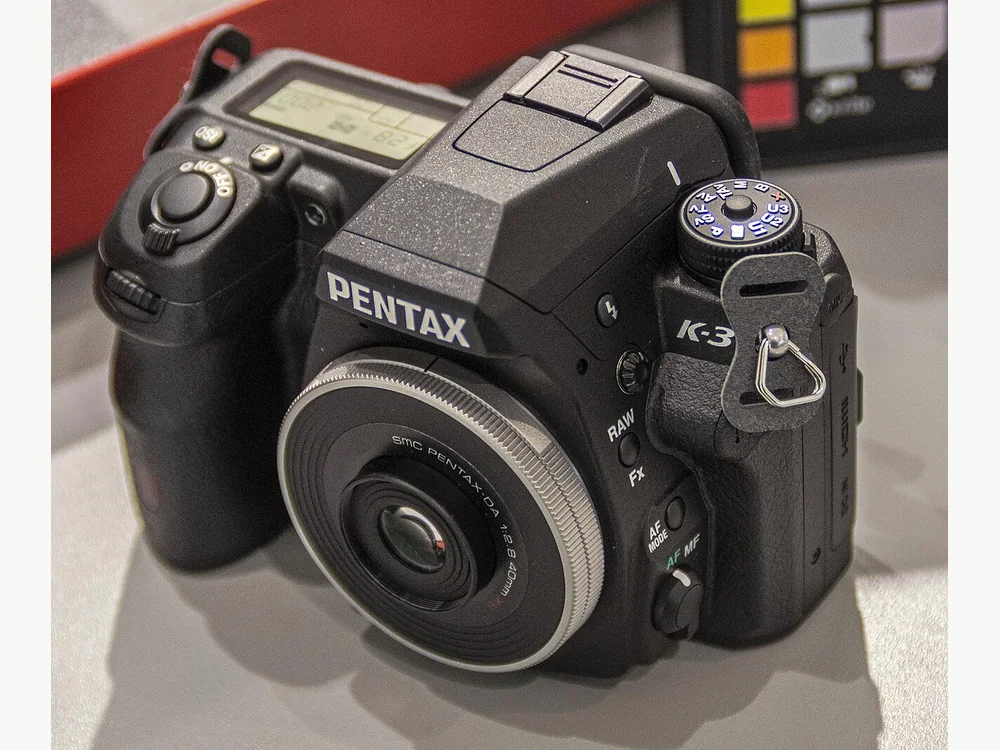

K-3
- Dimensions
- 5.2 x 3.9 x 3.1 in (131.5 x 100 x 77.5 mm)
- Weight
- 28.2 oz (800 g)
APS-CPentax K1.02 L envelope
View source

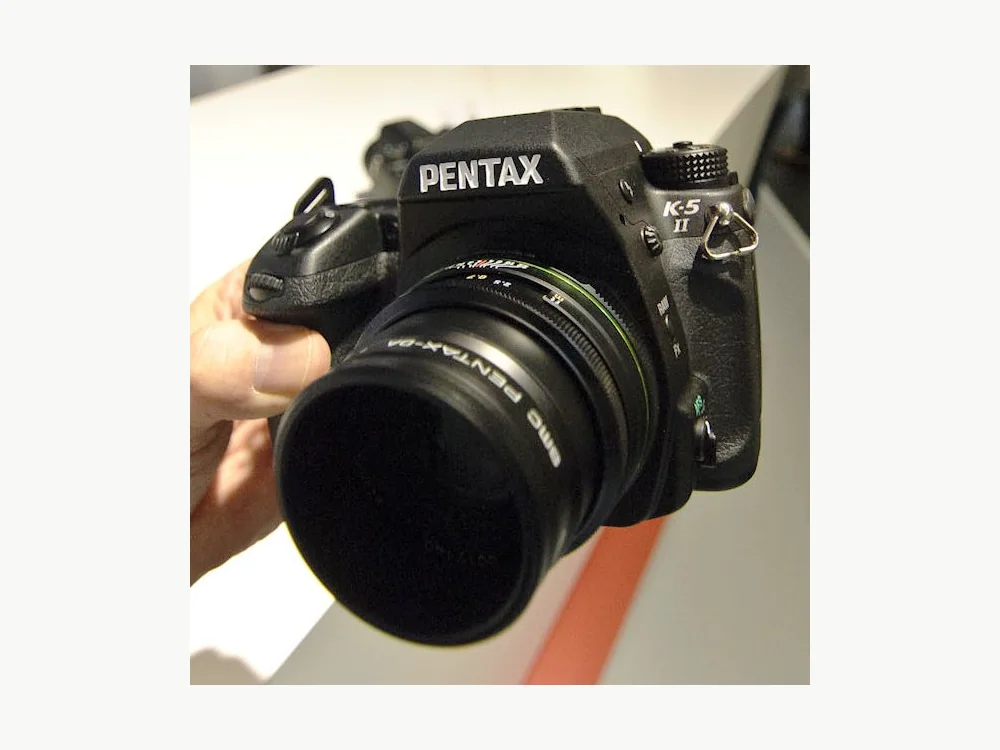

K-5 II
- Dimensions
- 5.2 x 3.8 x 2.9 in (131 x 97 x 72.5 mm)
- Weight
- 26.8 oz (760 g)
APS-CPentax K0.92 L envelope
View source

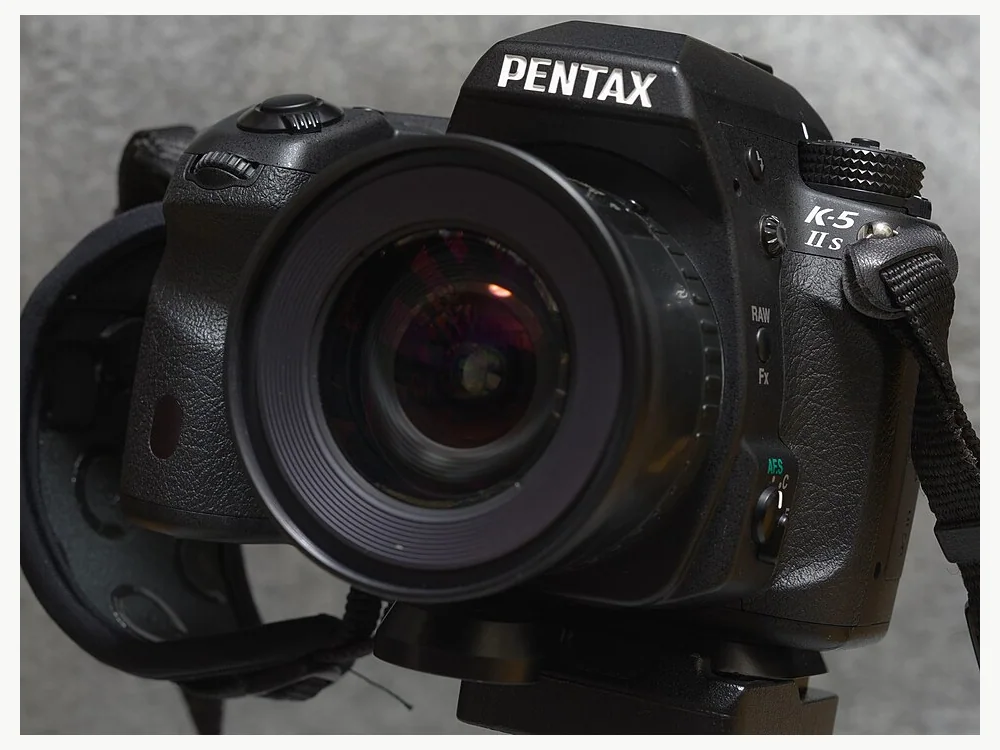

K-5 IIs
- Dimensions
- 5.2 x 3.8 x 2.9 in (131 x 97 x 72.5 mm)
- Weight
- 26.8 oz (760 g)
APS-CPentax K0.92 L envelope
View source X-5
- Dimensions
- 4.7 x 3.4 x 4.2 in (119 x 86 x 107 mm)
- Weight
- 21.1 oz (599 g)
1/2.3 inFixed 22.3–580mm equiv.1.10 L envelope
View source 1.10–1.59 L
1 archivedLarge
K-1
- Dimensions
- 5.4 x 4.3 x 3.4 in (136.5 x 110 x 85.5 mm)
- Weight
- 35.6 oz (1,010 g)
Full framePentax K1.28 L envelope
View source 1.60 L and over
1 archivedExtra large

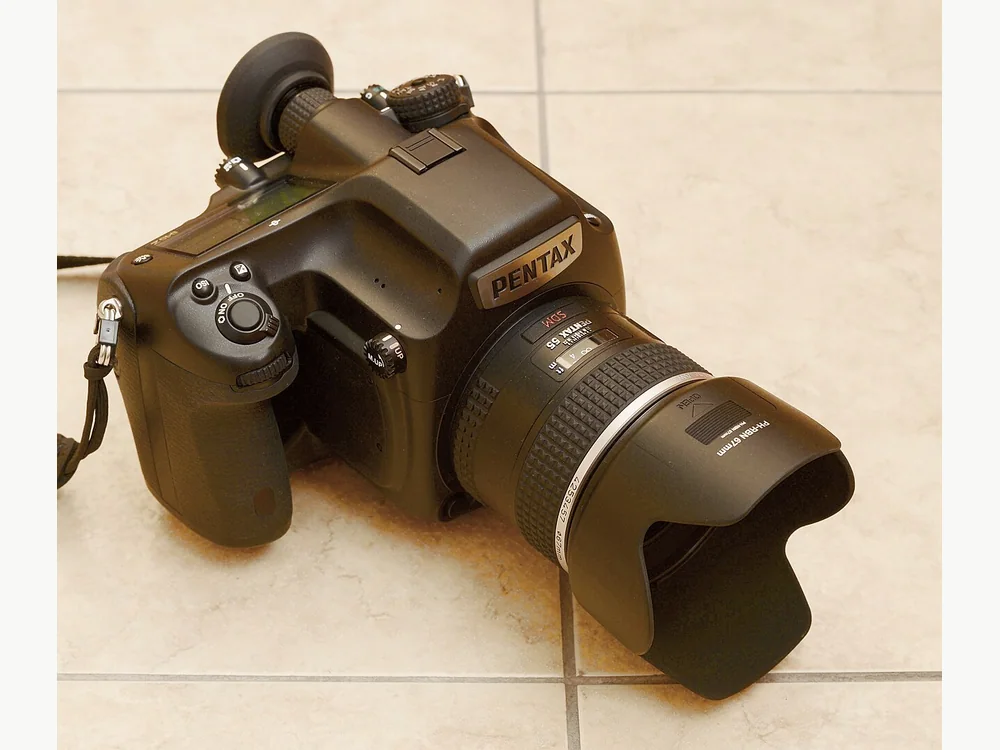

645Z
- Dimensions
- 6.1 x 4.6 x 4.8 in (156 x 117 x 123 mm)
- Weight
- 54.7 oz (1,550 g)
Medium formatPentax 6452.24 L envelope
View source Dimensions and weights link to manufacturer specifications or established references. Weights generally include the battery and memory card. Product ranges change, so use the linked source when millimetre-perfect fit is critical.
