OM SYSTEM / OLYMPUS / BODY SIZE GUIDE

OM System / Olympus cameras, sized for the bag

OM System and Olympus interchangeable-lens and fixed-lens cameras. Body-only dimensions are shown width x height x depth, and cameras are grouped by their rectangular envelope for straightforward comparison.

6current models

34archive models

Under 0.70 L

Compact

5 cameras

Tough waterproof compact2023Current

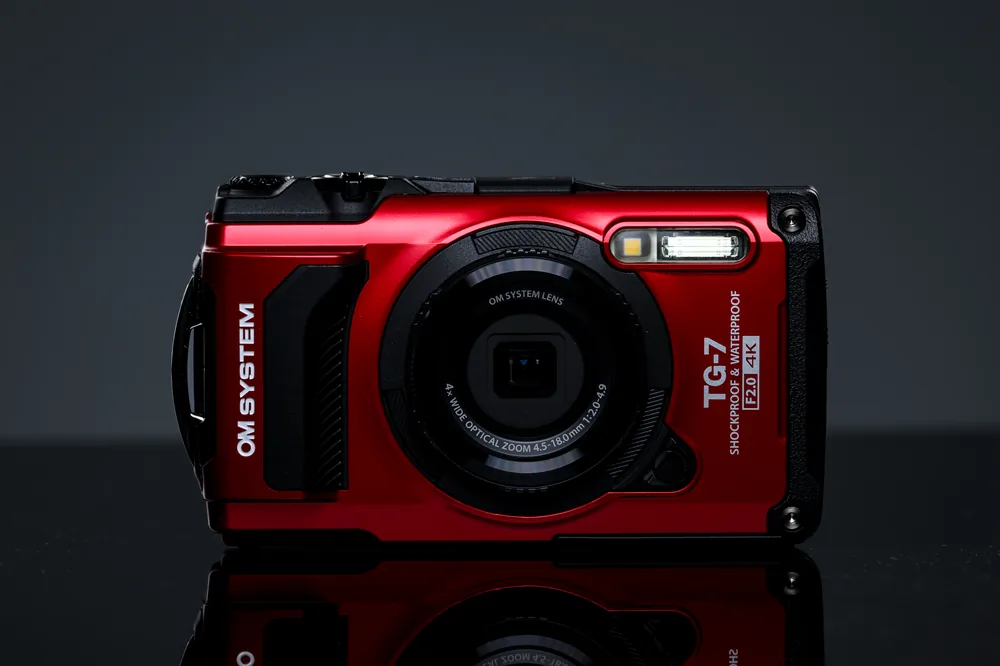

TG-7

Dimensions: 4.5 x 2.6 x 1.3 in (113.9 x 65.8 x 32.7 mm)
Weight: 8.8 oz (249 g)

1/2.3 inFixed 25–100mm equiv.0.25 L envelope

View source

Olympus PEN2021Current

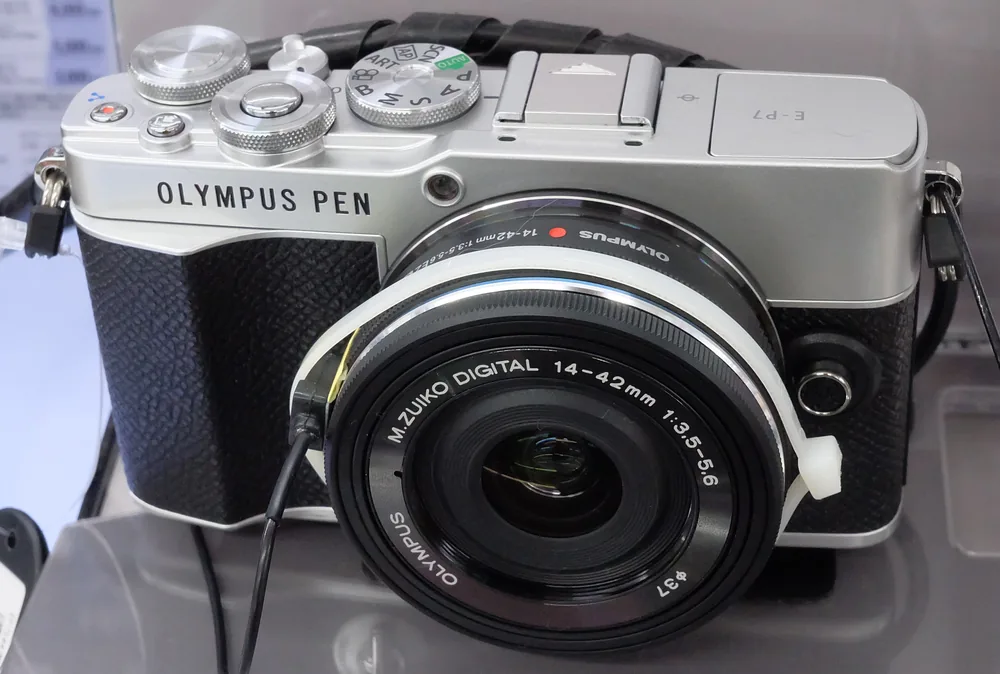

PEN E-P7

Dimensions: 4.7 x 2.7 x 1.5 in (118.3 x 68.5 x 38.1 mm)
Weight: 11.9 oz (337 g)

Micro Four ThirdsMicro Four Thirds0.31 L envelope

View source

Olympus OM-D2020Current

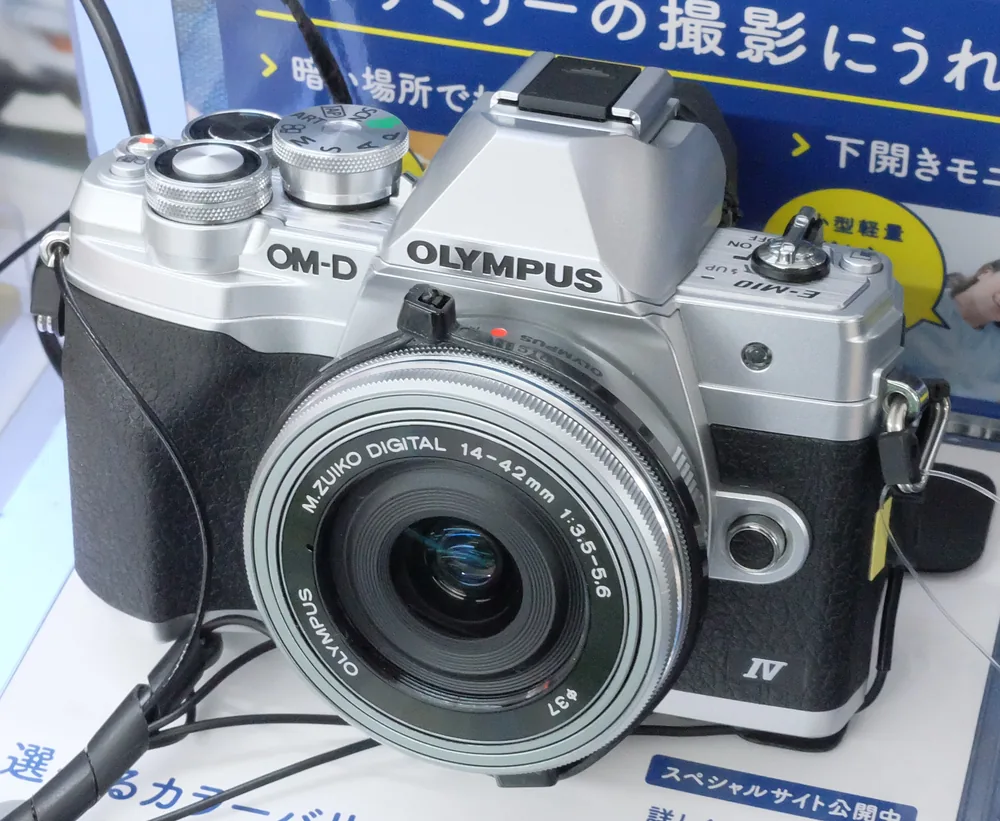

E-M10 Mark IV

Dimensions: 4.8 x 3.3 x 1.9 in (121.7 x 84.6 x 49 mm)
Weight: 13.5 oz (383 g)

Micro Four ThirdsMicro Four Thirds0.50 L envelope

View source

OM System mirrorless2025Current

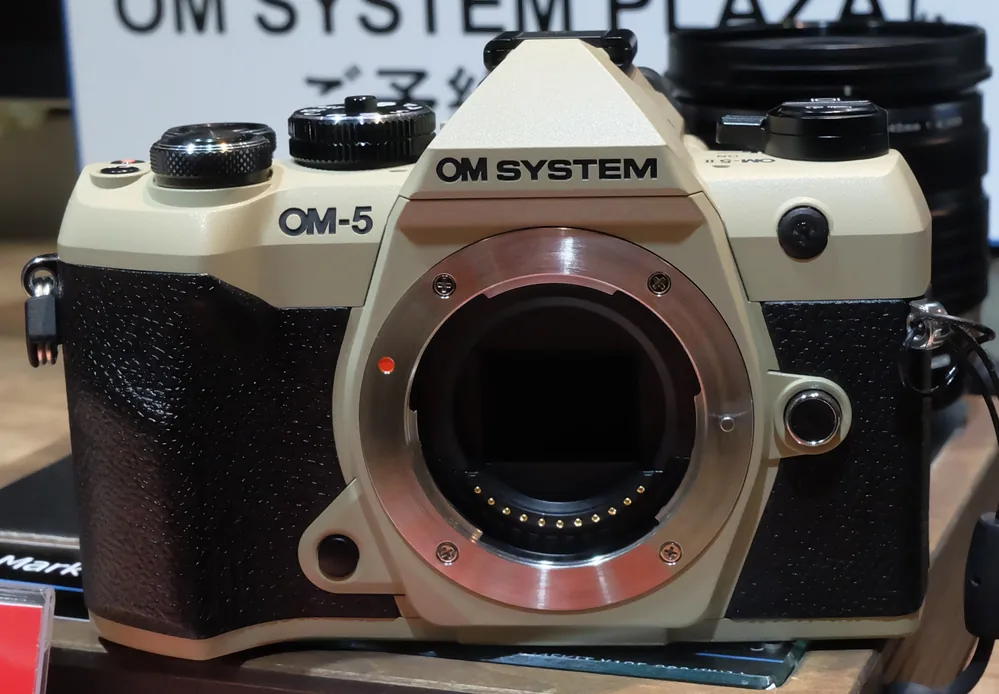

OM-5 Mark II

Dimensions: 4.9 x 3.4 x 2.0 in (125.3 x 85.2 x 52 mm)
Weight: 14.7 oz (418 g)

Micro Four ThirdsMicro Four Thirds0.56 L envelope

View source

OM System mirrorless2025Current

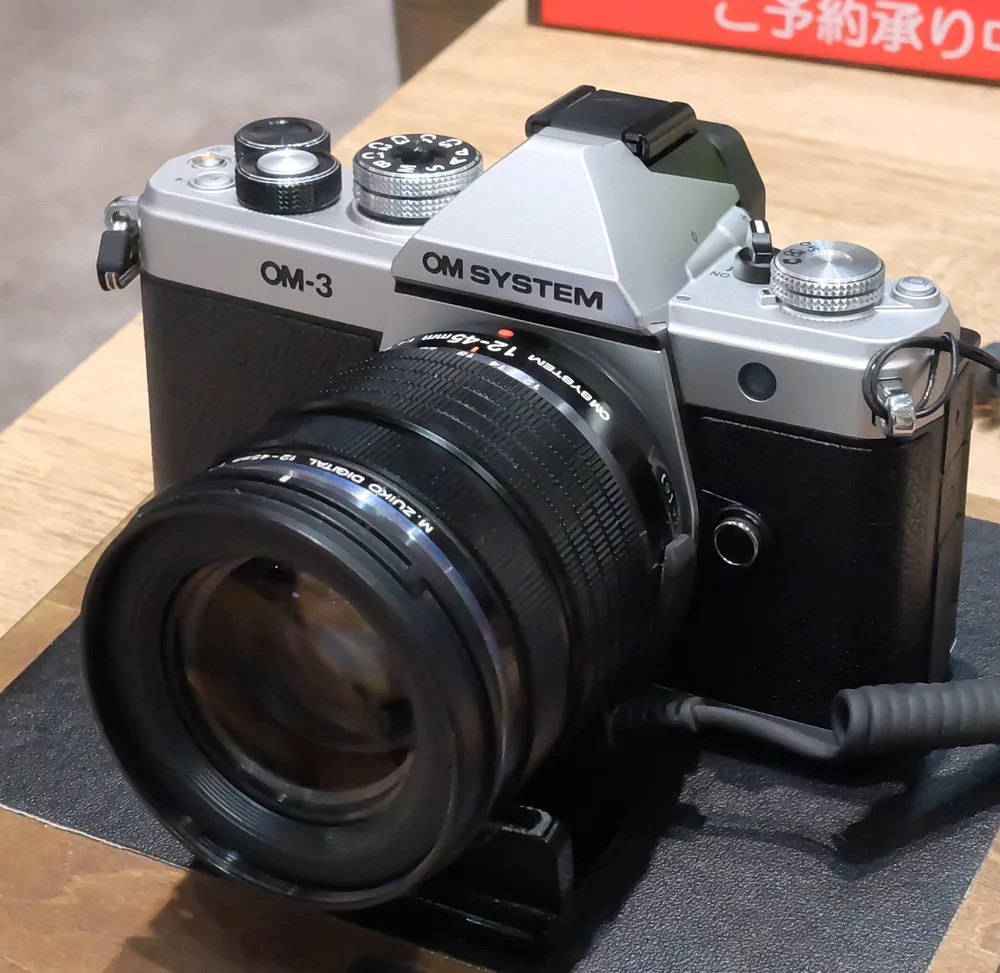

OM-3

Dimensions: 5.5 x 3.5 x 1.8 in (139.3 x 88.9 x 45.8 mm)
Weight: 17.5 oz (496 g)

Micro Four ThirdsMicro Four Thirds0.57 L envelope

View source

0.70–0.89 L

Small

1 camera

Professional mirrorless2024Current

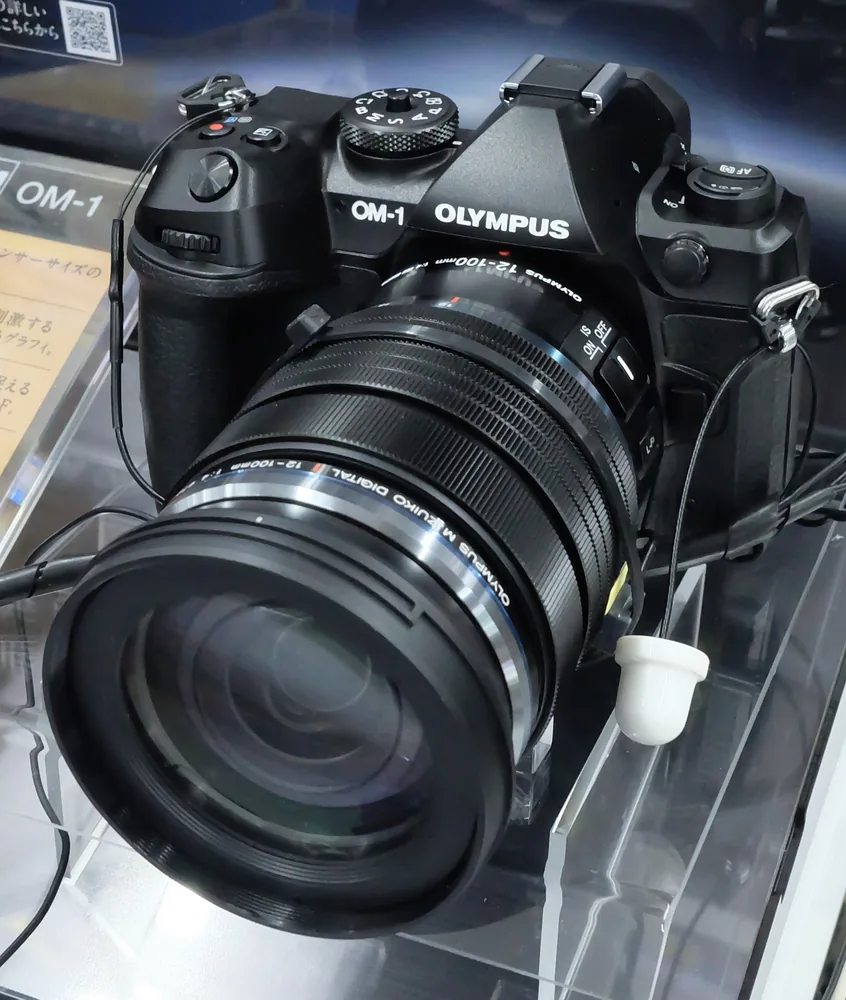

OM-1 Mark II

Dimensions: 5.3 x 3.6 x 2.9 in (134.8 x 91.6 x 72.7 mm)
Weight: 21.1 oz (599 g)

Micro Four ThirdsMicro Four Thirds0.90 L envelope

View source

ARCHIVE REFERENCE / NEWEST FIRST

OM System / Olympus archive

34 cameras

Under 0.70 L

Compact

28 archived

OM System mirrorless2022Archive

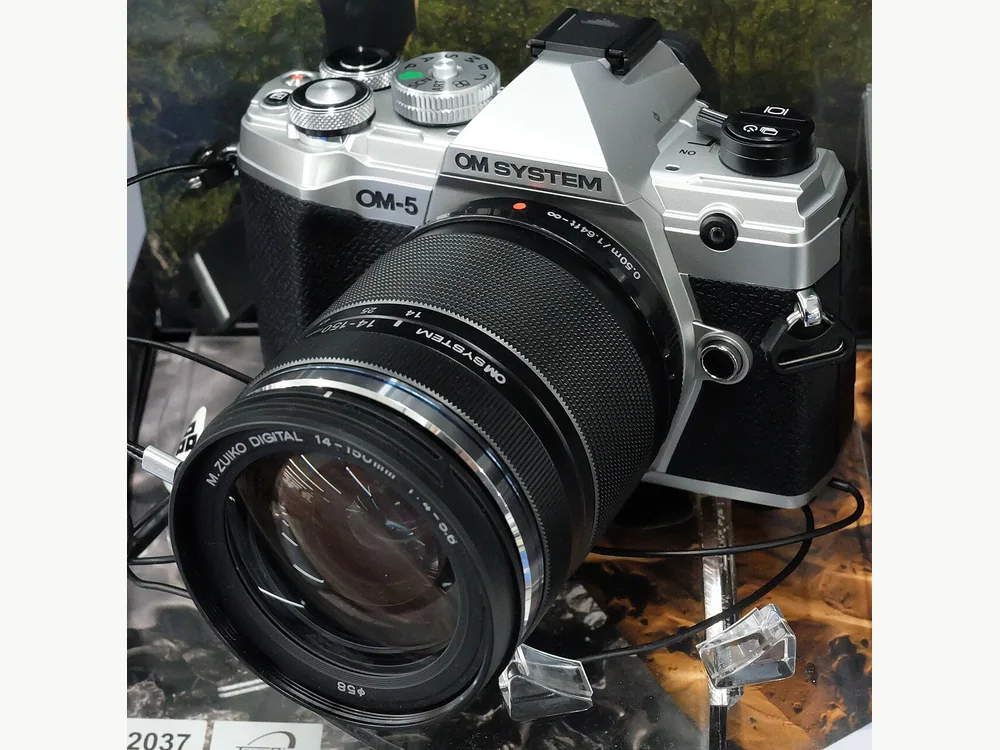

OM-5

Dimensions: 4.9 x 3.4 x 2.0 in (125.3 x 85.2 x 49.7 mm)
Weight: 14.6 oz (414 g)

Micro Four ThirdsMicro Four Thirds0.53 L envelope

View source

Olympus OM-D2019Archive

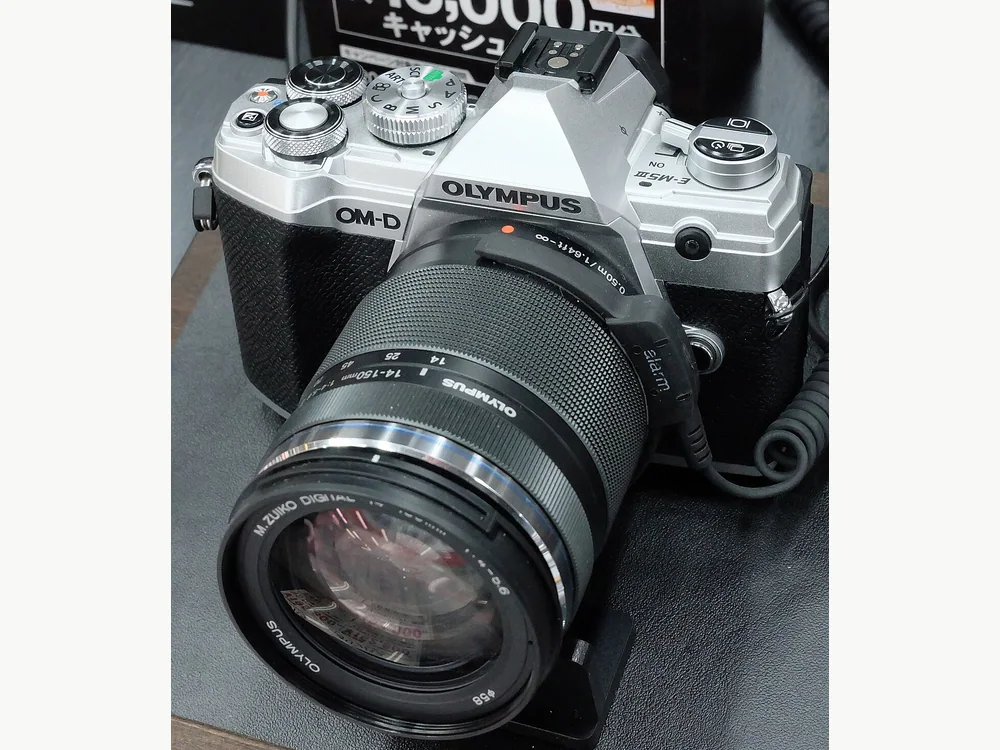

OM-D E-M5 Mark III

Dimensions: 4.9 x 3.4 x 2.0 in (125.3 x 85.2 x 49.7 mm)
Weight: 14.6 oz (414 g)

Micro Four ThirdsMicro Four Thirds0.53 L envelope

View source

Olympus PEN2019Archive

PEN E-PL10

Dimensions: 4.6 x 2.7 x 1.5 in (117.1 x 68 x 39 mm)
Weight: 13.4 oz (380 g)

Micro Four ThirdsMicro Four Thirds0.31 L envelope

View source

Tough waterproof compact2019Archive

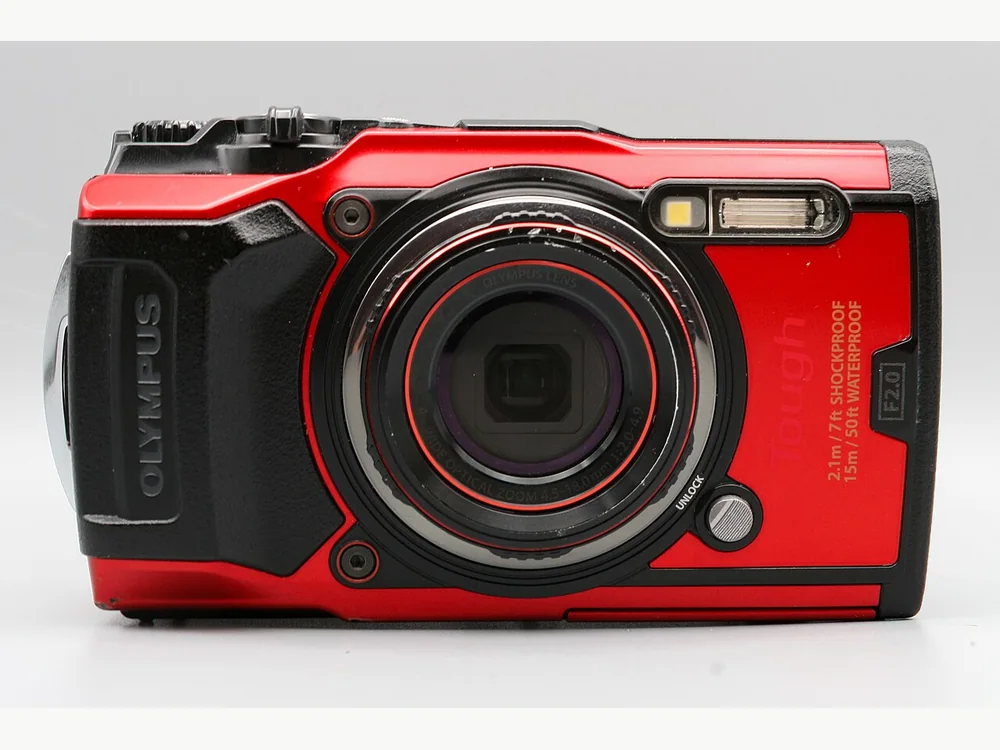

TG-6

Dimensions: 4.4 x 2.6 x 1.3 in (113 x 66 x 32.4 mm)
Weight: 8.9 oz (253 g)

1/2.3 inFixed 25–100mm equiv.0.24 L envelope

View source

Olympus PEN2018Archive

PEN E-PL9

Dimensions: 4.6 x 2.7 x 1.5 in (117.1 x 68 x 39 mm)
Weight: 13.4 oz (380 g)

Micro Four ThirdsMicro Four Thirds0.31 L envelope

View source

Olympus OM-D2017Archive

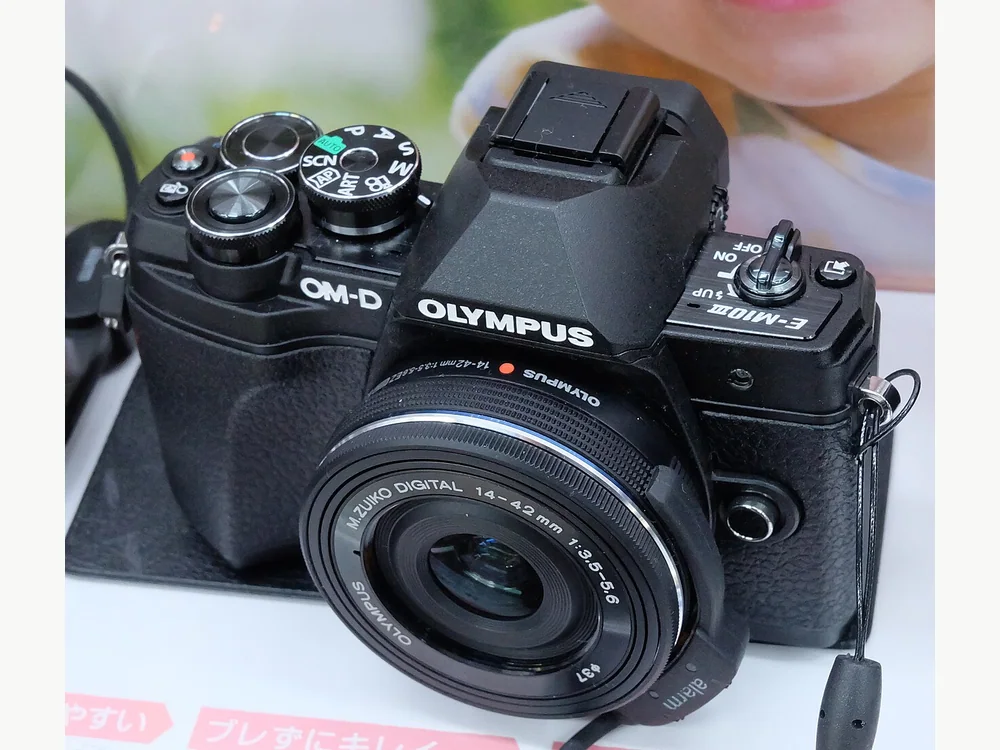

OM-D E-M10 Mark III

Dimensions: 4.8 x 3.3 x 1.9 in (121.5 x 83.6 x 49.5 mm)
Weight: 14.5 oz (410 g)

Micro Four ThirdsMicro Four Thirds0.50 L envelope

View source

Tough waterproof compact2017Archive

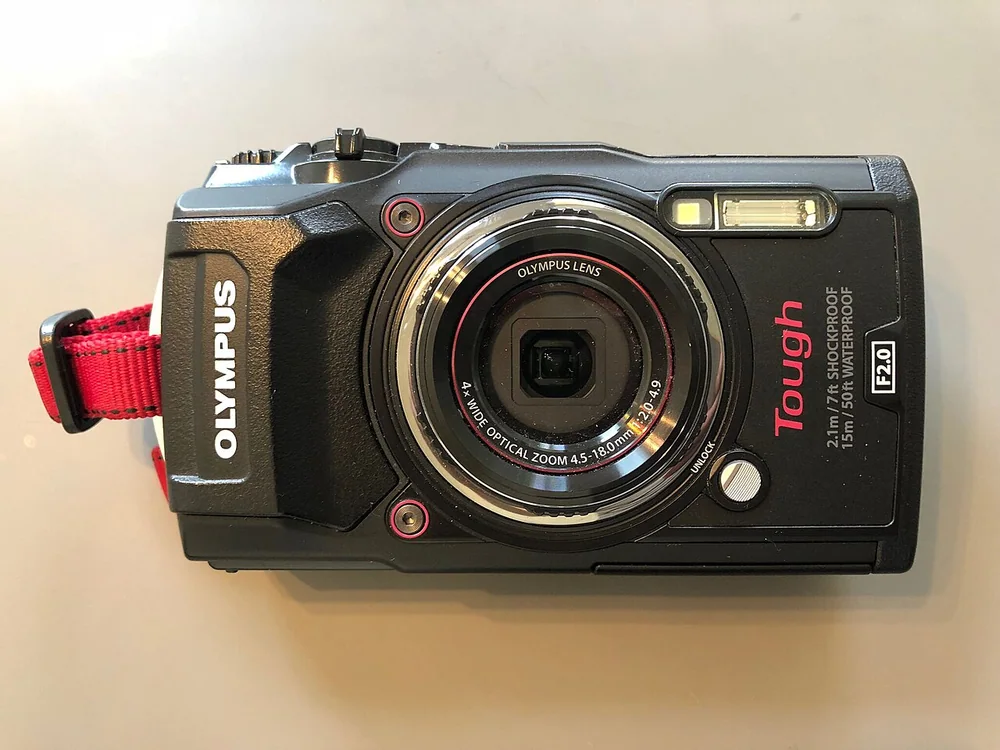

TG-5

Dimensions: 4.4 x 2.6 x 1.3 in (113 x 66 x 31.9 mm)
Weight: 8.8 oz (250 g)

1/2.3 inFixed 25–100mm equiv.0.24 L envelope

View source

Olympus PEN2016Archive

PEN E-PL8

Dimensions: 4.6 x 2.7 x 1.5 in (117.1 x 68.3 x 38.4 mm)
Weight: 13.2 oz (374 g)

Micro Four ThirdsMicro Four Thirds0.31 L envelope

View source

Olympus PEN2016Archive

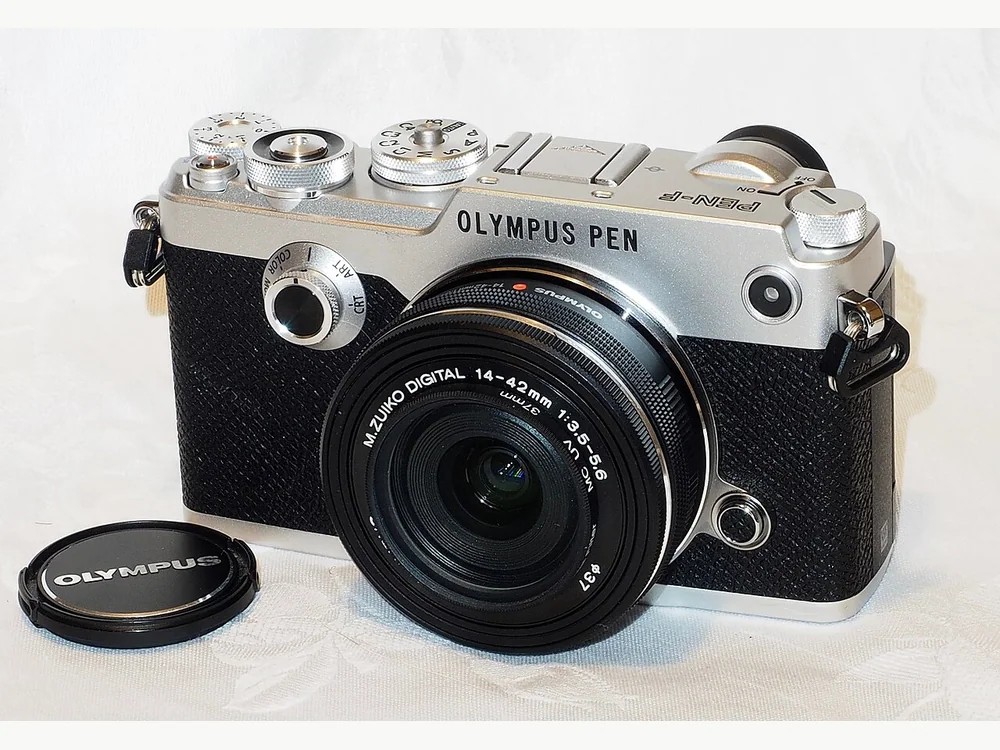

PEN-F

Dimensions: 4.9 x 2.8 x 1.5 in (124.8 x 72.1 x 37.3 mm)
Weight: 15.1 oz (427 g)

Micro Four ThirdsMicro Four Thirds0.34 L envelope

View source

Open-platform camera2015Archive

Olympus AIR A01

Dimensions: 2.2 x 2.2 x 1.7 in (56.9 x 57.1 x 43.6 mm)
Weight: 5.2 oz (147 g)

Micro Four ThirdsMicro Four Thirds0.14 L envelope

View source

Olympus OM-D2015Archive

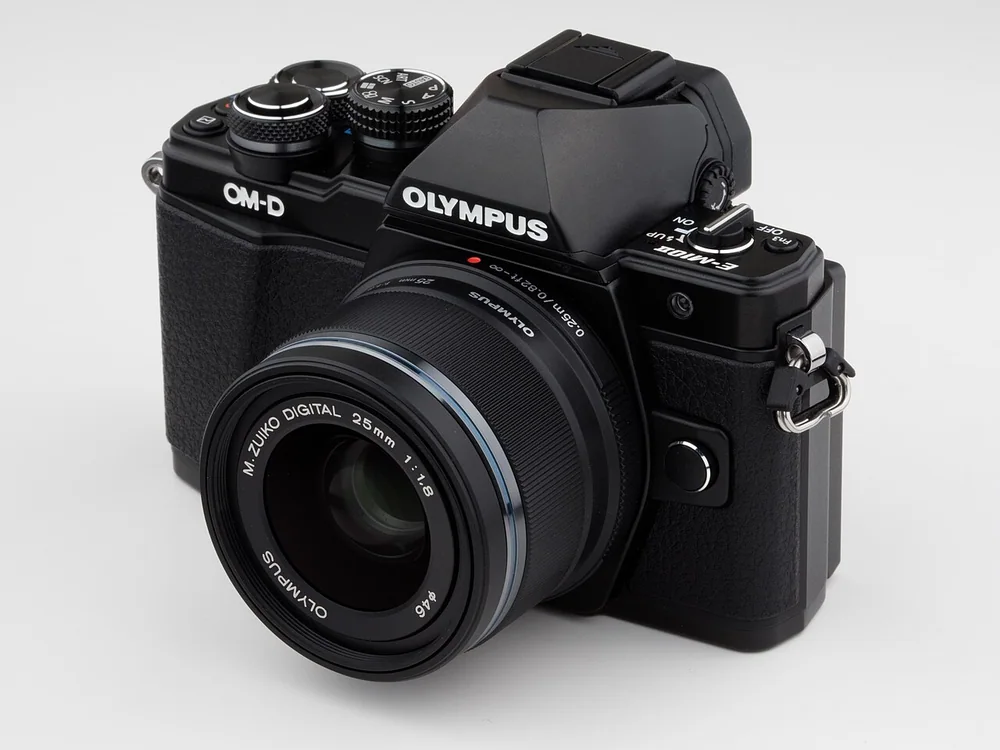

OM-D E-M10 Mark II

Dimensions: 4.7 x 3.3 x 1.8 in (119.5 x 83.1 x 46.7 mm)
Weight: 13.8 oz (390 g)

Micro Four ThirdsMicro Four Thirds0.46 L envelope

View source

Olympus OM-D2015Archive

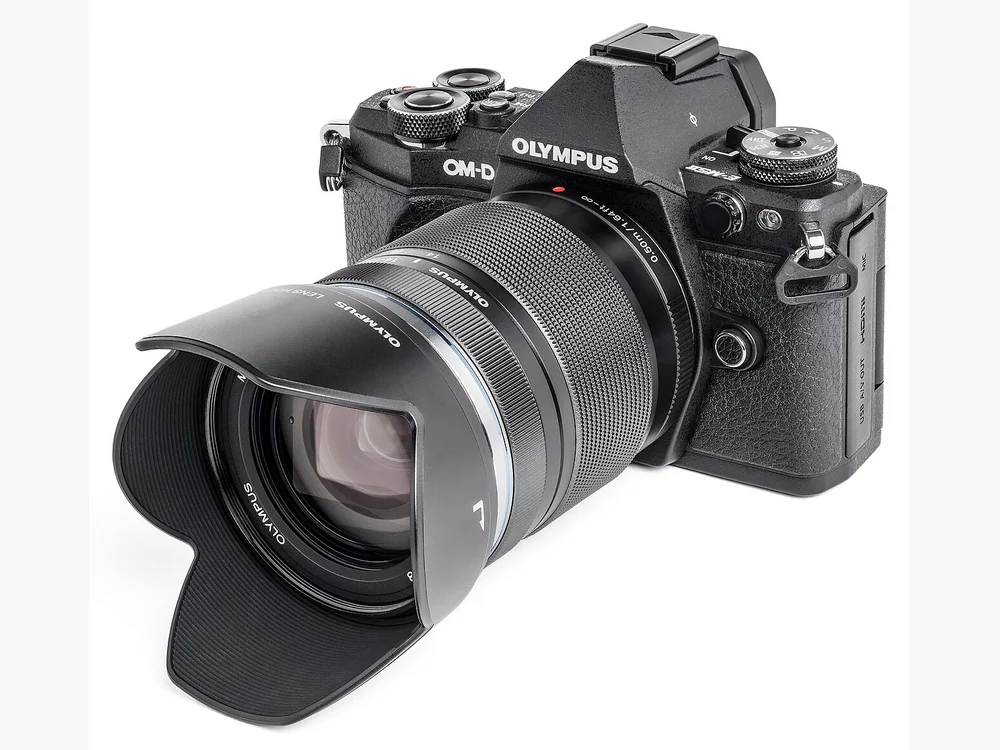

OM-D E-M5 Mark II

Dimensions: 4.9 x 3.3 x 1.8 in (123.7 x 85 x 44.5 mm)
Weight: 16.5 oz (469 g)

Micro Four ThirdsMicro Four Thirds0.47 L envelope

View source

Travel zoom compact2015Archive

SH-2

Dimensions: 4.3 x 2.5 x 1.7 in (108.8 x 63.2 x 42.4 mm)
Weight: 9.6 oz (271 g)

1/2.3 inFixed 25–600mm equiv.0.29 L envelope

View source

Tough waterproof compact2015Archive

TG-4

Dimensions: 4.4 x 2.6 x 1.2 in (111.5 x 65.9 x 31.2 mm)
Weight: 8.7 oz (247 g)

1/2.3 inFixed 25–100mm equiv.0.23 L envelope

View source

Olympus OM-D2014Archive

OM-D E-M10

Dimensions: 4.7 x 3.2 x 1.8 in (119.1 x 82.3 x 45.9 mm)
Weight: 14.0 oz (396 g)

Micro Four ThirdsMicro Four Thirds0.45 L envelope

View source

Olympus PEN2014Archive

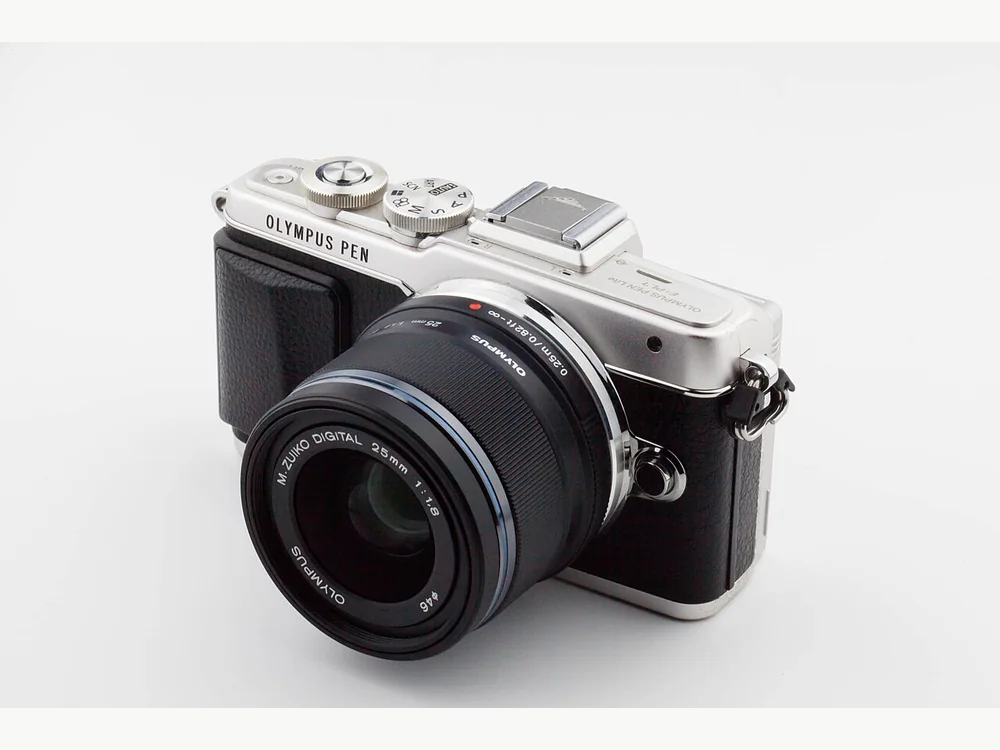

PEN E-PL7

Dimensions: 4.5 x 2.6 x 1.5 in (114.9 x 67 x 38.4 mm)
Weight: 12.6 oz (357 g)

Micro Four ThirdsMicro Four Thirds0.30 L envelope

View source

Travel zoom compact2014Archive

SH-1

Dimensions: 4.3 x 2.5 x 1.7 in (108.8 x 63.2 x 42.4 mm)
Weight: 9.6 oz (271 g)

1/2.3 inFixed 25–600mm equiv.0.29 L envelope

View source

Premium bridge camera2014Archive

Stylus 1s

Dimensions: 4.6 x 3.4 x 2.2 in (116.2 x 87 x 56.5 mm)
Weight: 14.2 oz (402 g)

1/1.7 inFixed 28–300mm equiv.0.57 L envelope

View source

Tough waterproof compact2014Archive

TG-3

Dimensions: 4.4 x 2.6 x 1.2 in (111.5 x 65.9 x 31.2 mm)
Weight: 8.7 oz (247 g)

1/2.3 inFixed 25–100mm equiv.0.23 L envelope

View source

Olympus PEN2013Archive

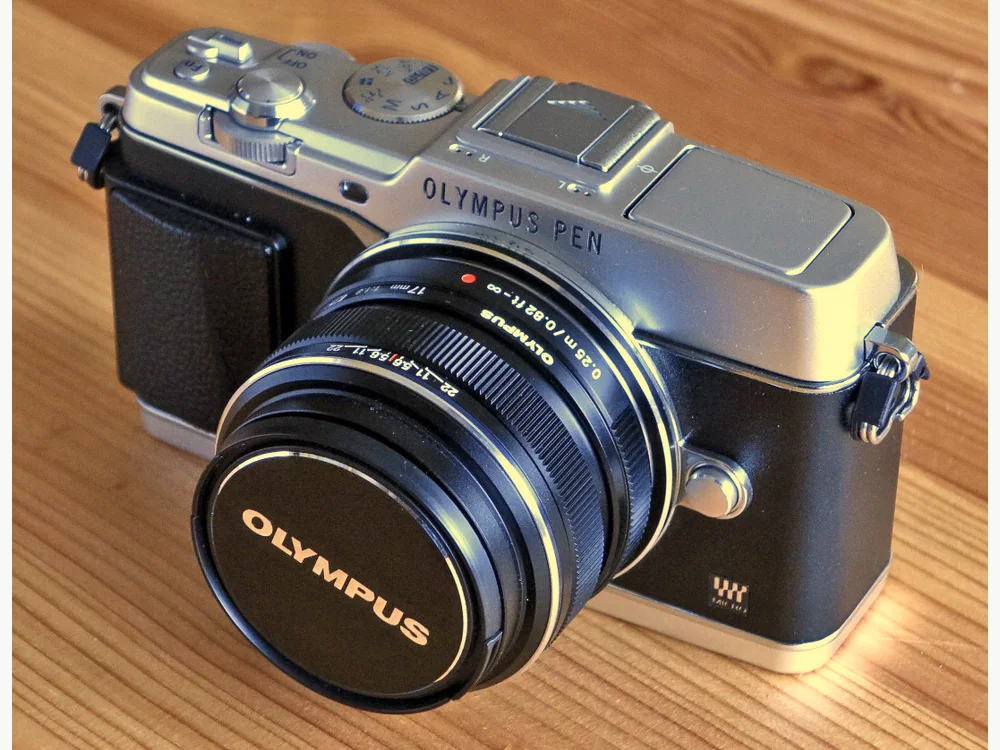

PEN E-P5

Dimensions: 4.8 x 2.7 x 1.5 in (122.3 x 68.9 x 37.2 mm)
Weight: 14.8 oz (420 g)

Micro Four ThirdsMicro Four Thirds0.31 L envelope

View source

Olympus PEN2013Archive

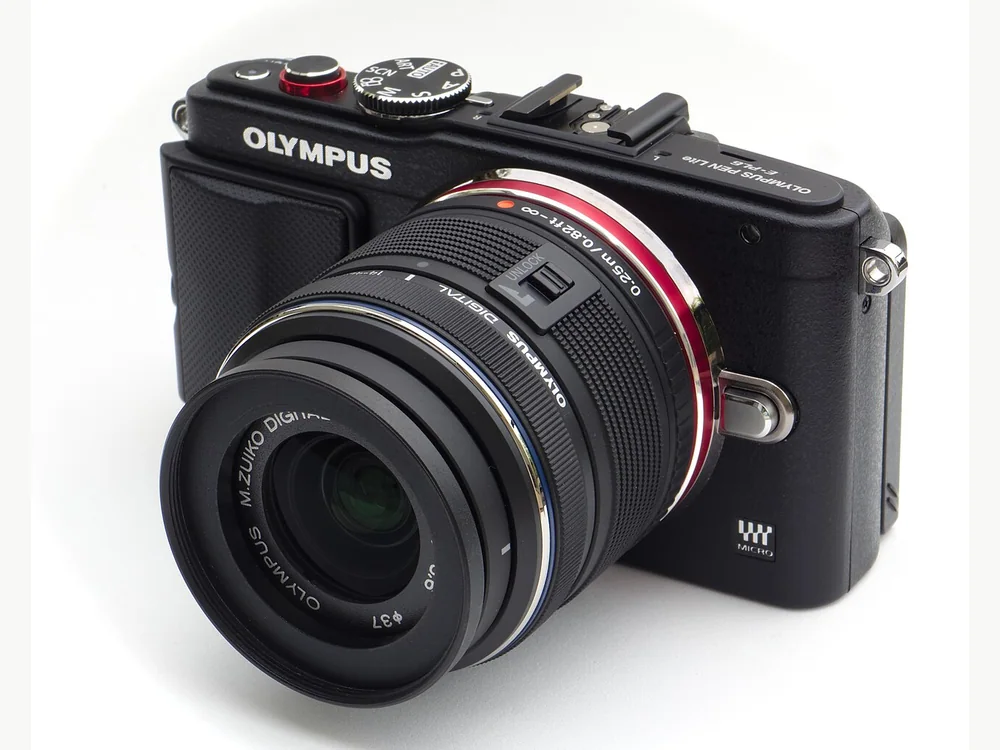

PEN E-PL6

Dimensions: 4.4 x 2.5 x 1.5 in (110.5 x 63.7 x 38.2 mm)
Weight: 11.5 oz (325 g)

Micro Four ThirdsMicro Four Thirds0.27 L envelope

View source

Premium bridge camera2013Archive

Stylus 1

Dimensions: 4.6 x 3.4 x 2.2 in (116.2 x 87 x 56.5 mm)
Weight: 14.2 oz (402 g)

1/1.7 inFixed 28–300mm equiv.0.57 L envelope

View source

Tough waterproof compact2013Archive

TG-2 iHS

Dimensions: 4.4 x 2.6 x 1.1 in (111.5 x 66.5 x 29.1 mm)
Weight: 8.1 oz (230 g)

1/2.3 inFixed 25–100mm equiv.0.22 L envelope

View source

Olympus OM-D2012Archive

OM-D E-M5

Dimensions: 4.8 x 3.5 x 1.6 in (121 x 89.6 x 41.9 mm)
Weight: 15.0 oz (425 g)

Micro Four ThirdsMicro Four Thirds0.45 L envelope

View source

Olympus PEN2012Archive

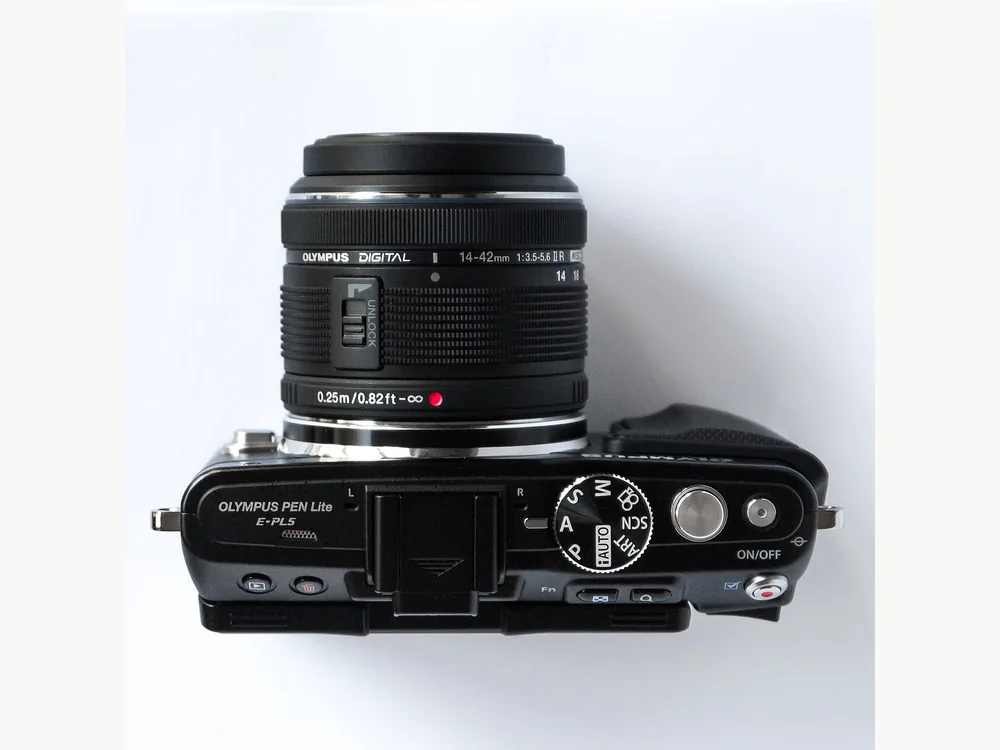

PEN E-PL5

Dimensions: 4.4 x 2.5 x 1.5 in (110.5 x 63.7 x 38.2 mm)
Weight: 11.5 oz (325 g)

Micro Four ThirdsMicro Four Thirds0.27 L envelope

View source

Olympus PEN2012Archive

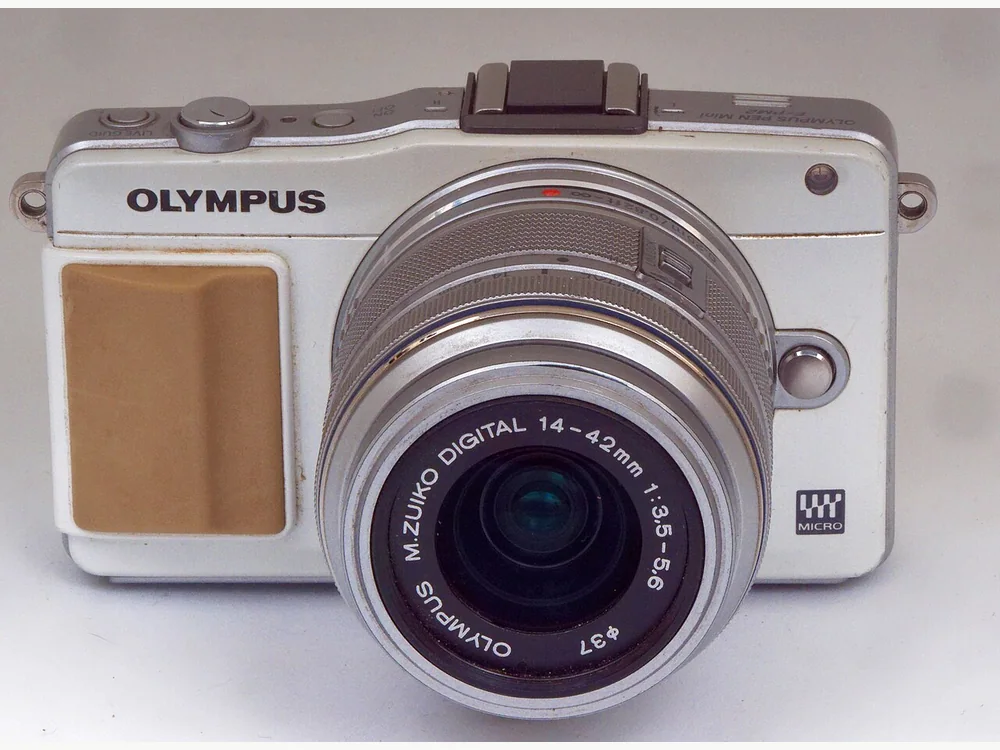

PEN E-PM2

Dimensions: 4.3 x 2.5 x 1.3 in (109.8 x 64.2 x 33.8 mm)
Weight: 9.5 oz (269 g)

Micro Four ThirdsMicro Four Thirds0.24 L envelope

View source

Tough waterproof compact2012Archive

TG-1 iHS

Dimensions: 4.4 x 2.6 x 1.1 in (111.5 x 66.5 x 29.1 mm)
Weight: 8.1 oz (230 g)

1/2.3 inFixed 25–100mm equiv.0.22 L envelope

View source

Enthusiast compact2012Archive

XZ-2

Dimensions: 4.4 x 2.6 x 1.9 in (113 x 65.4 x 48 mm)
Weight: 12.2 oz (346 g)

1/1.7 inFixed 28–112mm equiv.0.35 L envelope

View source

0.70–0.89 L

Small

4 archived

Professional mirrorless2022Archive

OM-1

Dimensions: 5.3 x 3.6 x 2.9 in (134.8 x 91.6 x 72.7 mm)
Weight: 21.1 oz (599 g)

Micro Four ThirdsMicro Four Thirds0.90 L envelope

View source

Professional mirrorless2020Archive

OM-D E-M1 Mark III

Dimensions: 5.3 x 3.6 x 2.7 in (134.1 x 90.9 x 68.9 mm)
Weight: 20.5 oz (580 g)

Micro Four ThirdsMicro Four Thirds0.84 L envelope

View source

Professional mirrorless2016Archive

OM-D E-M1 Mark II

Dimensions: 5.3 x 3.6 x 2.7 in (134.1 x 90.9 x 68.9 mm)
Weight: 20.2 oz (574 g)

Micro Four ThirdsMicro Four Thirds0.84 L envelope

View source

Professional mirrorless2013Archive

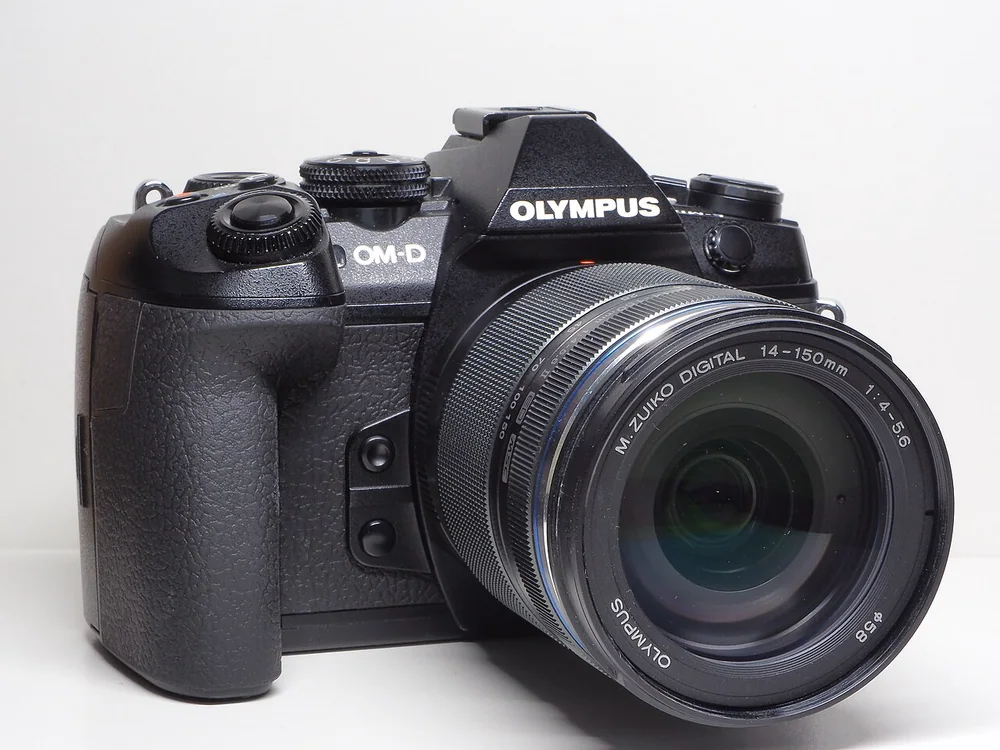

OM-D E-M1

Dimensions: 5.1 x 3.7 x 2.5 in (130.4 x 93.5 x 63.1 mm)
Weight: 17.5 oz (497 g)

Micro Four ThirdsMicro Four Thirds0.77 L envelope

View source

1.10–1.59 L

Large

2 archived

Professional mirrorless2019Archive

OM-D E-M1X

Dimensions: 5.7 x 5.8 x 3.0 in (144.4 x 146.8 x 75.4 mm)
Weight: 35.2 oz (997 g)

Micro Four ThirdsMicro Four Thirds1.60 L envelope

View source

Bridge camera2014Archive

SP-100EE

Dimensions: 4.8 x 3.6 x 5.2 in (121.2 x 91.3 x 133.2 mm)
Weight: 20.8 oz (589 g)

1/2.3 inFixed 24–1200mm equiv.1.47 L envelope

View source

Dimensions and weights link to manufacturer specifications or established references. Weights generally include the battery and memory card. Product ranges change, so use the linked source when millimetre-perfect fit is critical.
