PANASONIC LUMIX / BODY SIZE GUIDE

Panasonic Lumix cameras, sized for the bag

Lumix G and S bodies plus Lumix fixed-lens cameras. Body-only dimensions are shown width x height x depth, and cameras are grouped by their rectangular envelope for straightforward comparison.

10current models

42archive models

Under 0.70 L

Compact

4 cameras

Premium travel zoom2018Current

Lumix TZ200 / ZS200

Dimensions: 4.4 x 2.6 x 1.8 in (111.2 x 66.4 x 45.2 mm)
Weight: 12.0 oz (340 g)

1-inchFixed 24–360mm equiv.0.33 L envelope

View source

Lumix S mirrorless2024Current

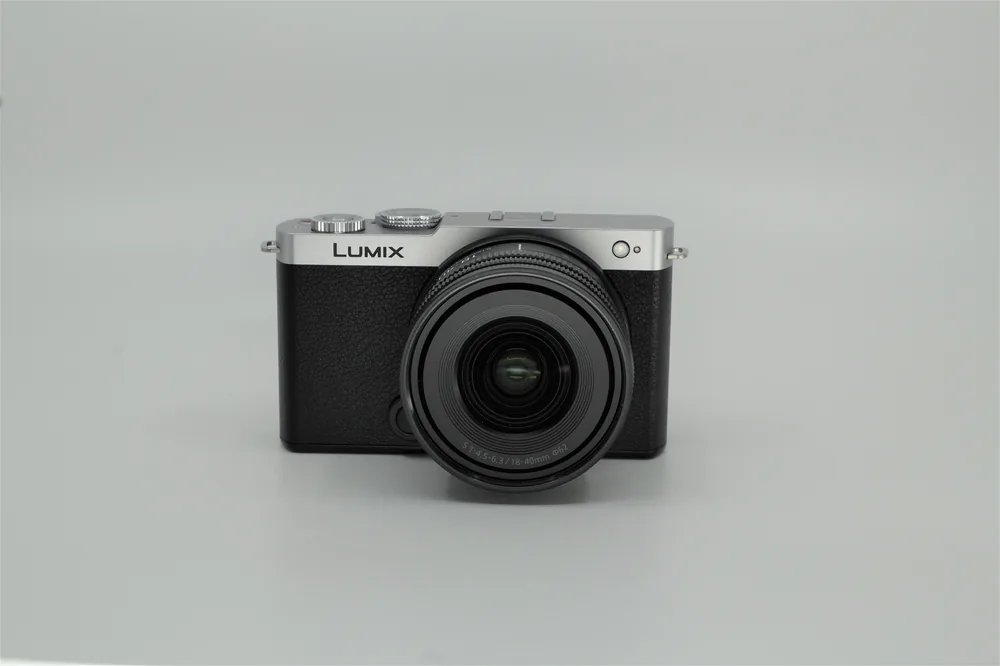

Lumix S9

Dimensions: 5.0 x 2.9 x 1.8 in (126 x 73.9 x 46.7 mm)
Weight: 17.1 oz (486 g)

Full frameLeica L0.43 L envelope

View source

Premium compact2018Current

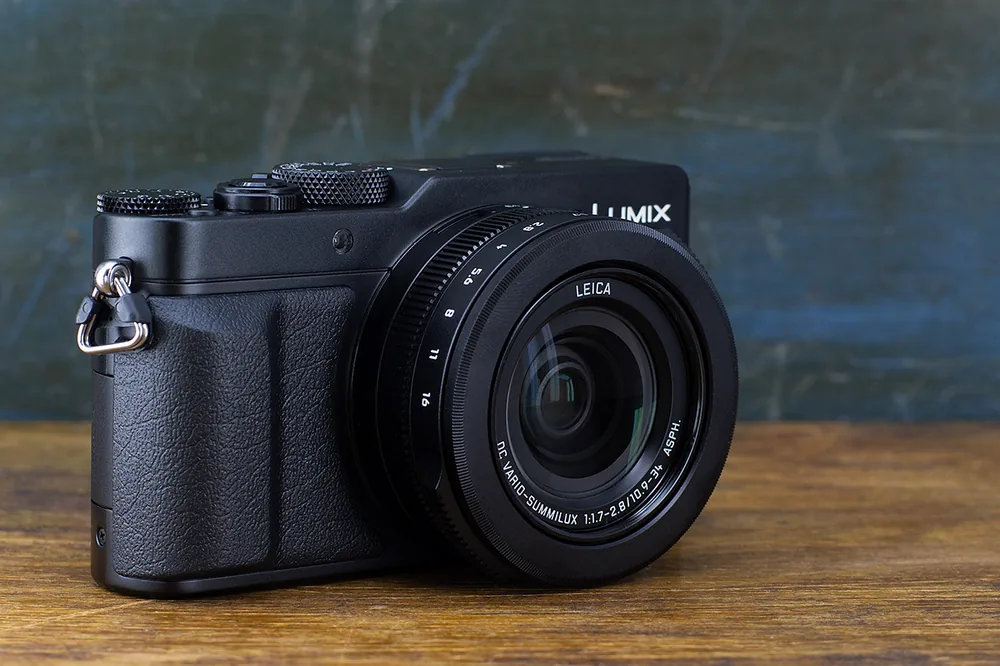

Lumix LX100 II

Dimensions: 4.5 x 2.6 x 2.5 in (115 x 66.2 x 64.2 mm)
Weight: 13.8 oz (392 g)

Four ThirdsFixed 24–75mm equiv.0.49 L envelope

View source

Lumix G mirrorless2024Current

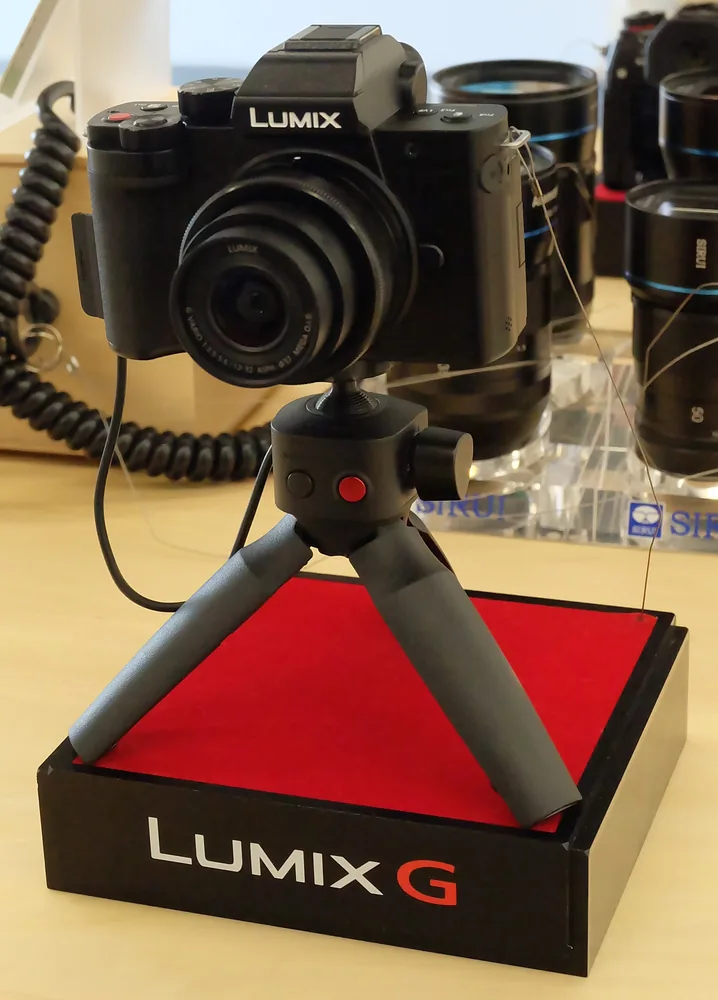

Lumix G100D

Dimensions: 4.6 x 3.3 x 2.1 in (115.6 x 83.1 x 54.2 mm)
Weight: 12.2 oz (346 g)

Micro Four ThirdsMicro Four Thirds0.52 L envelope

View source

1.10–1.59 L

Large

5 cameras

Lumix G mirrorless2023Current

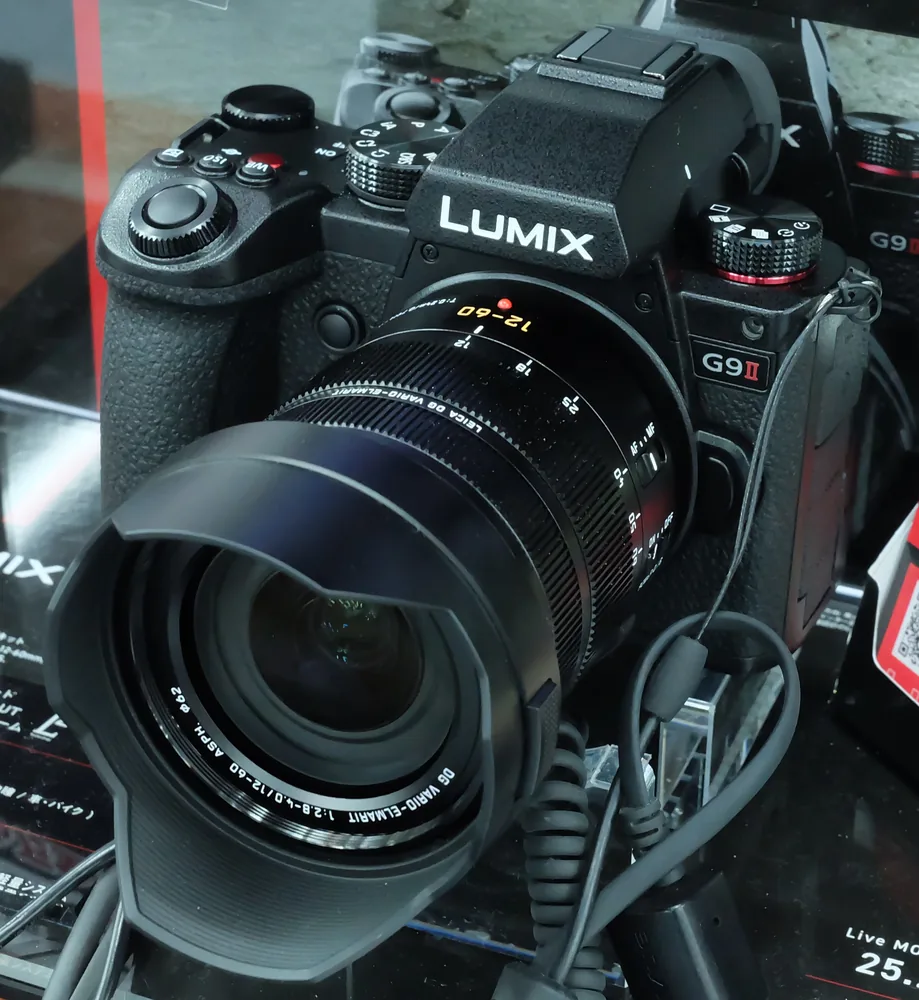

Lumix G9II

Dimensions: 5.3 x 4.0 x 3.5 in (134.3 x 102.3 x 90.1 mm)
Weight: 23.2 oz (658 g)

Micro Four ThirdsMicro Four Thirds1.24 L envelope

View source

Lumix S mirrorless2023Current

Lumix S5II

Dimensions: 5.3 x 4.0 x 3.5 in (134.3 x 102.3 x 90.1 mm)
Weight: 26.1 oz (740 g)

Full frameLeica L1.24 L envelope

View source

Lumix S video2023Current

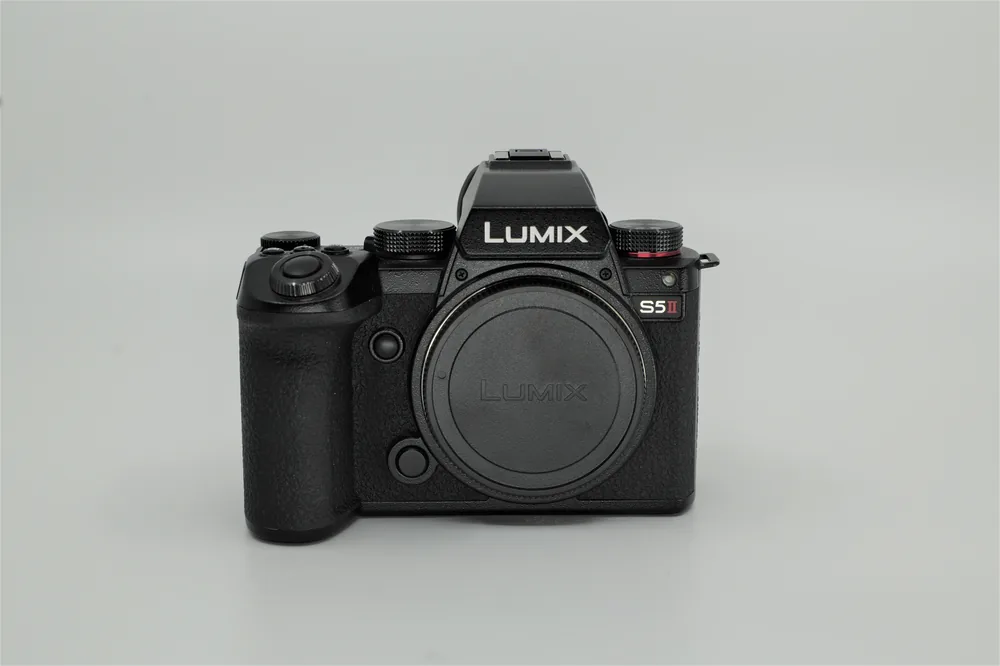

Lumix S5IIX

Dimensions: 5.3 x 4.0 x 3.5 in (134.3 x 102.3 x 90.1 mm)
Weight: 26.1 oz (740 g)

Full frameLeica L1.24 L envelope

View source

Lumix S mirrorless2025Current

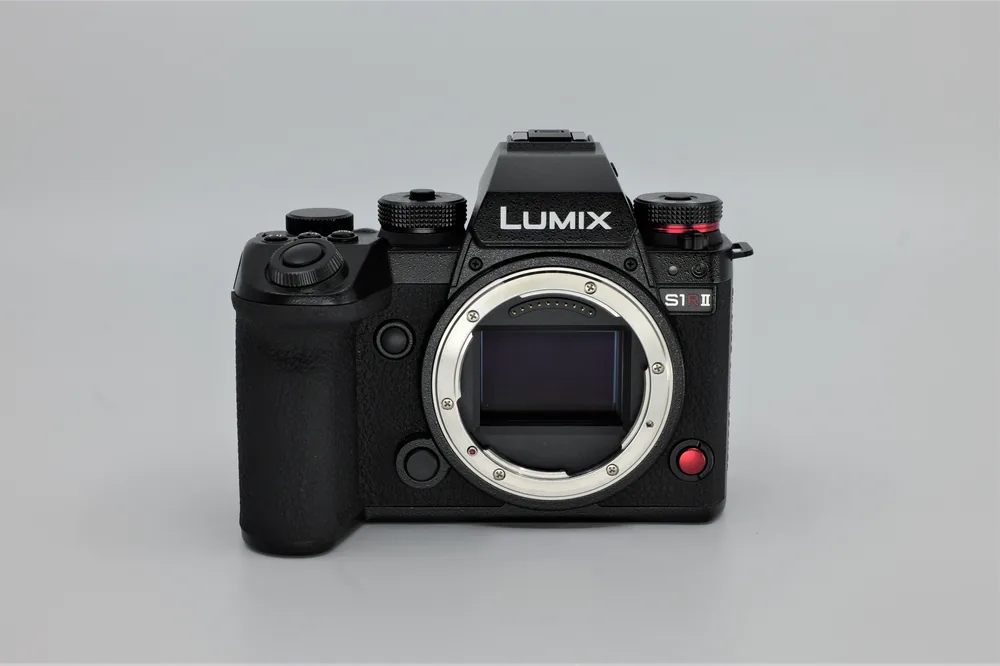

Lumix S1RII

Dimensions: 5.3 x 4.0 x 3.6 in (134.3 x 102.3 x 91.8 mm)
Weight: 28.0 oz (795 g)

Full frameLeica L1.26 L envelope

View source

Lumix G video2024Current

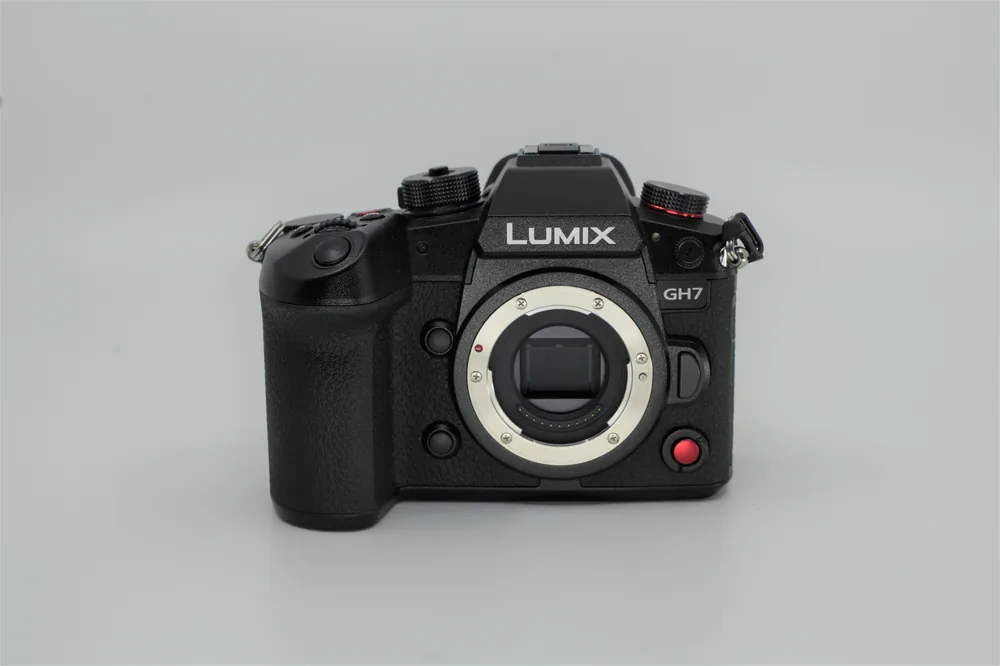

Lumix GH7

Dimensions: 5.4 x 3.9 x 3.9 in (138.4 x 100.3 x 99.6 mm)
Weight: 28.4 oz (805 g)

Micro Four ThirdsMicro Four Thirds1.38 L envelope

View source

1.60 L and over

Extra large

1 camera

Premium bridge camera2019Current

Lumix FZ1000 II

Dimensions: 5.4 x 3.8 x 5.2 in (136.2 x 97.2 x 131.5 mm)
Weight: 28.6 oz (810 g)

1-inchFixed 25–400mm equiv.1.74 L envelope

View source

ARCHIVE REFERENCE / NEWEST FIRST

Panasonic Lumix archive

42 cameras

Under 0.70 L

Compact

22 archived

Lumix box cinema2021Archive

Lumix BS1H

Dimensions: 3.7 x 3.7 x 3.1 in (93 x 93 x 78.8 mm)
Weight: 20.6 oz (585 g)

Full frameLeica L0.68 L envelope

View source

Lumix box cinema2020Archive

Lumix BGH1

Dimensions: 3.7 x 3.7 x 3.1 in (93 x 93 x 78 mm)
Weight: 19.2 oz (545 g)

Micro Four ThirdsMicro Four Thirds0.67 L envelope

View source

Lumix G mirrorless2020Archive

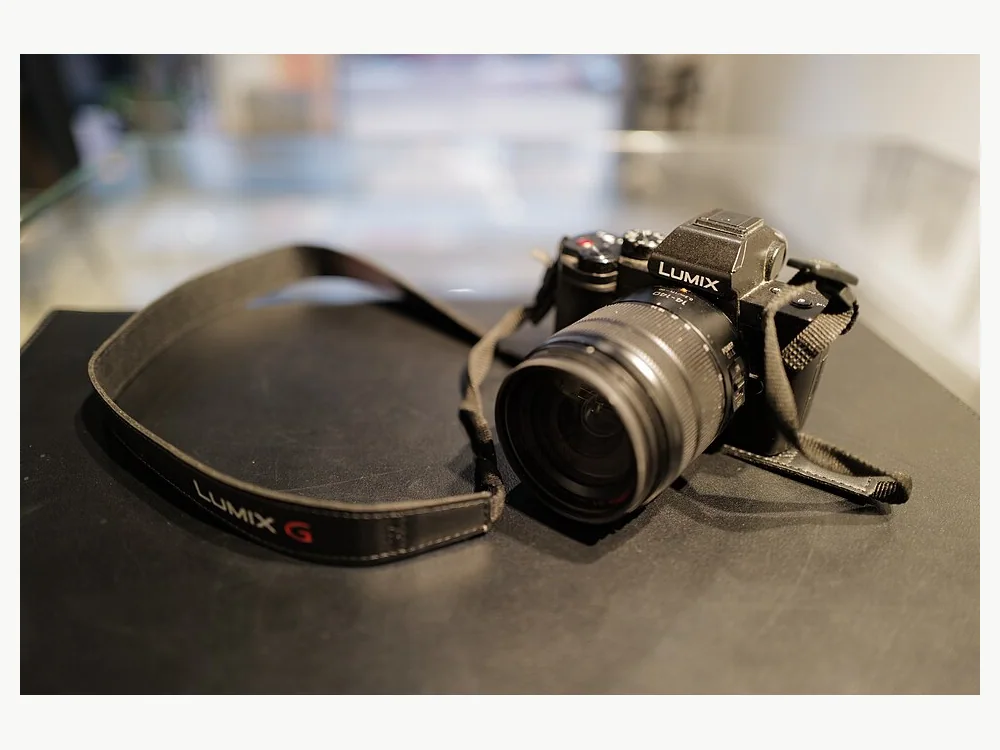

Lumix G100

Dimensions: 4.6 x 3.2 x 2.1 in (115.6 x 82.5 x 54.2 mm)
Weight: 12.4 oz (352 g)

Micro Four ThirdsMicro Four Thirds0.52 L envelope

View source

Waterproof compact2018Archive

Lumix FT7 / TS7

Dimensions: 4.6 x 3.0 x 1.5 in (116.7 x 76.1 x 37.3 mm)
Weight: 11.3 oz (319 g)

1/2.3 inFixed 28–128mm equiv.0.33 L envelope

View source

Lumix GX mirrorless2018Archive

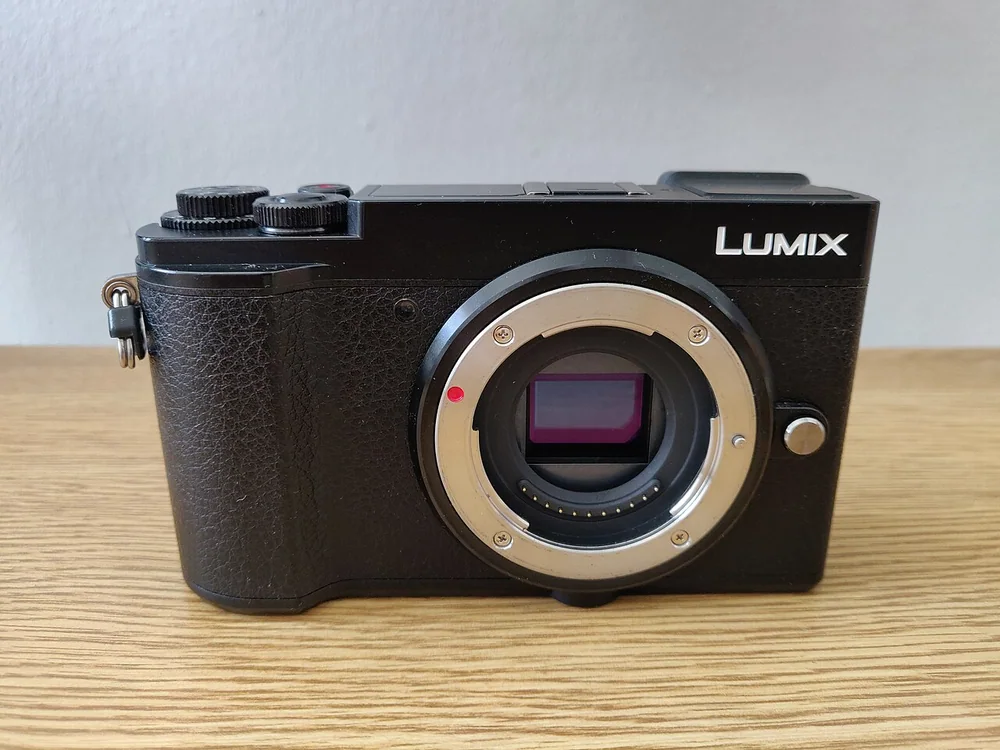

Lumix GX9

Dimensions: 4.9 x 2.8 x 1.8 in (124 x 72.1 x 46.8 mm)
Weight: 15.9 oz (450 g)

Micro Four ThirdsMicro Four Thirds0.42 L envelope

View source

Travel zoom compact2017Archive

Lumix TZ90 / ZS70

Dimensions: 4.4 x 2.6 x 1.6 in (112 x 67.3 x 41.2 mm)
Weight: 11.4 oz (322 g)

1/2.3 inFixed 24–720mm equiv.0.31 L envelope

View source

Lumix GX mirrorless2016Archive

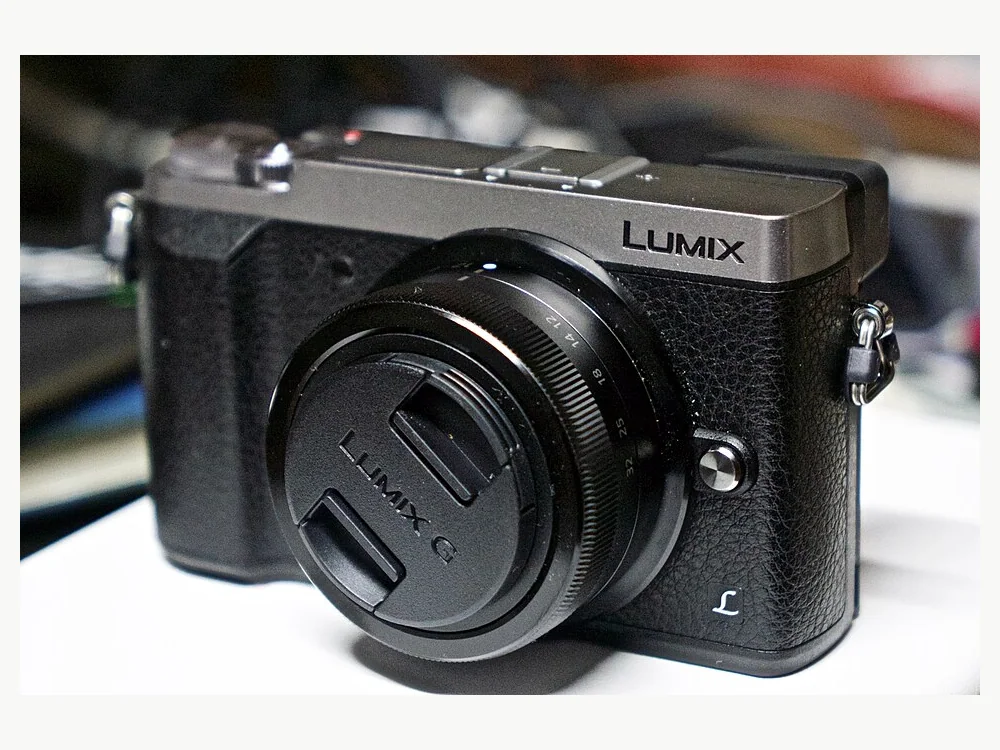

Lumix GX80 / GX85

Dimensions: 4.8 x 2.8 x 1.7 in (122 x 70.6 x 43.9 mm)
Weight: 15.0 oz (426 g)

Micro Four ThirdsMicro Four Thirds0.38 L envelope

View source

Premium compact2016Archive

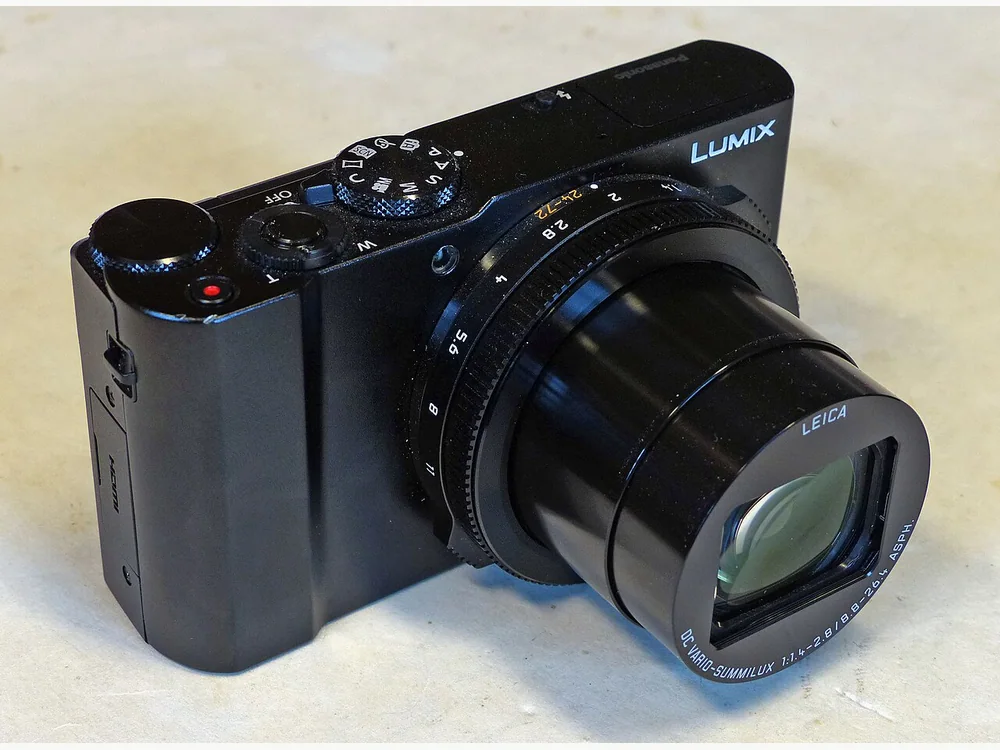

Lumix LX10 / LX15

Dimensions: 4.2 x 2.4 x 1.7 in (105.5 x 60 x 42 mm)
Weight: 10.9 oz (310 g)

1-inchFixed 24–72mm equiv.0.27 L envelope

View source

Premium travel zoom2016Archive

Lumix TZ100 / ZS100

Dimensions: 4.4 x 2.5 x 1.7 in (110.5 x 64.5 x 44.3 mm)
Weight: 11.0 oz (312 g)

1-inchFixed 25–250mm equiv.0.32 L envelope

View source

Travel zoom compact2016Archive

Lumix TZ80 / ZS60

Dimensions: 4.4 x 2.5 x 1.5 in (112 x 64 x 38 mm)
Weight: 9.9 oz (282 g)

1/2.3 inFixed 24–720mm equiv.0.27 L envelope

View source

Lumix GF mirrorless2015Archive

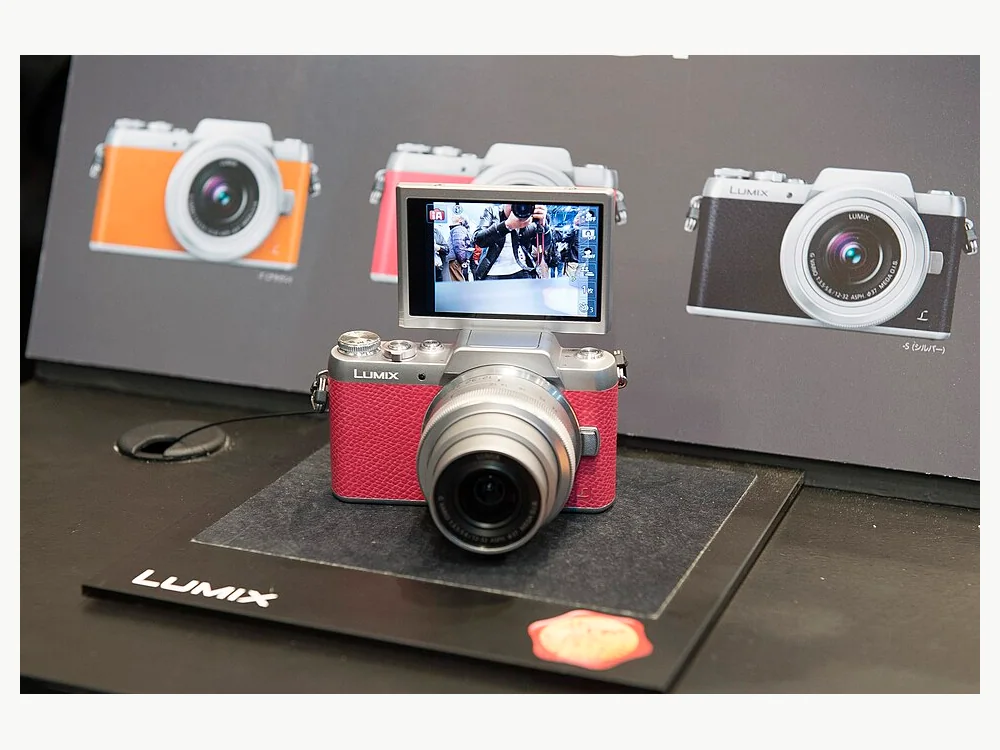

Lumix GF7

Dimensions: 4.2 x 2.5 x 1.3 in (106.5 x 64.6 x 33.3 mm)
Weight: 9.4 oz (266 g)

Micro Four ThirdsMicro Four Thirds0.23 L envelope

View source

Lumix GX mirrorless2015Archive

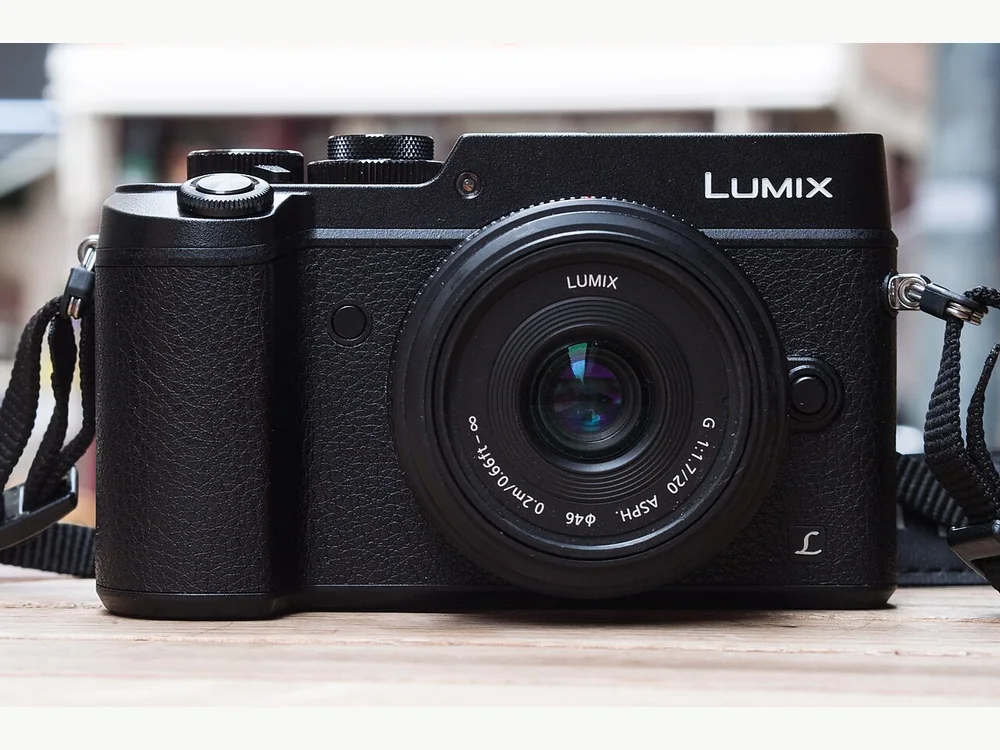

Lumix GX8

Dimensions: 5.2 x 3.1 x 2.5 in (133.2 x 77.9 x 63.1 mm)
Weight: 17.2 oz (487 g)

Micro Four ThirdsMicro Four Thirds0.65 L envelope

View source

Travel zoom compact2015Archive

Lumix TZ70 / ZS50

Dimensions: 4.4 x 2.5 x 1.4 in (110.7 x 64.6 x 34.4 mm)
Weight: 8.6 oz (243 g)

1/2.3 inFixed 24–720mm equiv.0.25 L envelope

View source

Lumix GM mirrorless2014Archive

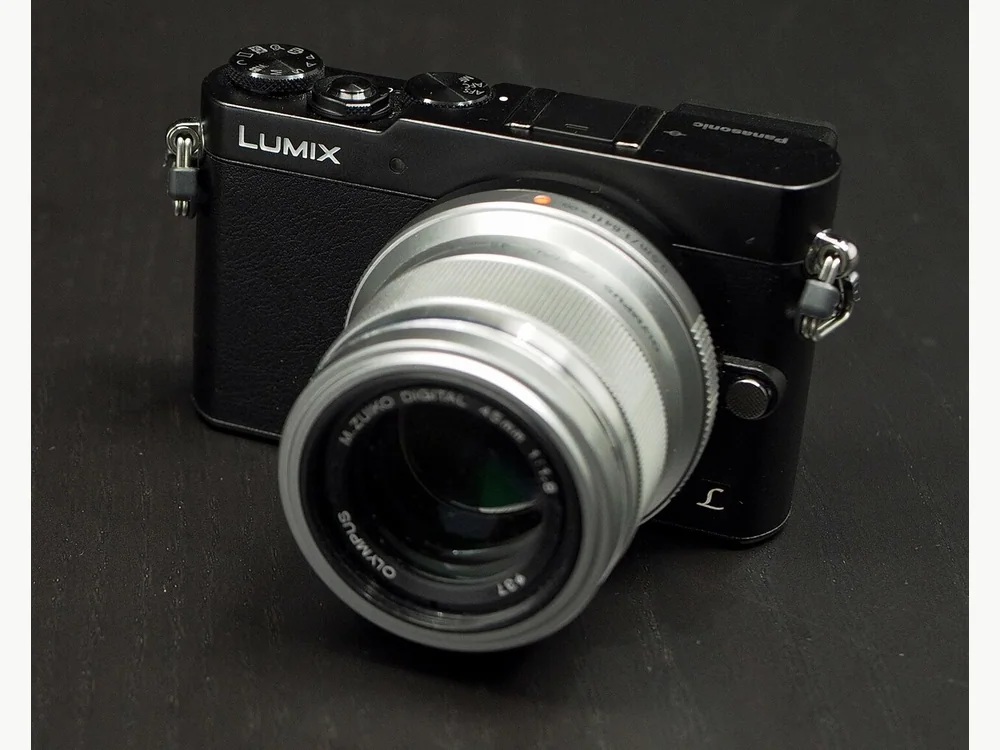

Lumix GM5

Dimensions: 3.9 x 2.3 x 1.4 in (98.5 x 59.5 x 36.1 mm)
Weight: 7.4 oz (211 g)

Micro Four ThirdsMicro Four Thirds0.21 L envelope

View source

Premium compact2014Archive

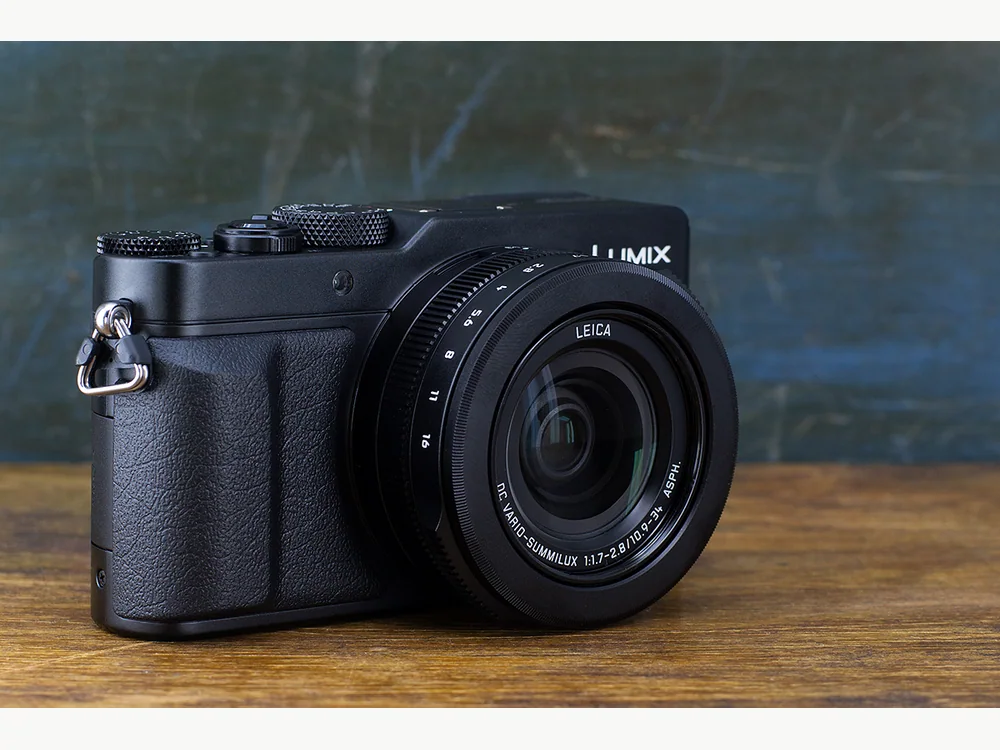

Lumix LX100

Dimensions: 4.5 x 2.6 x 2.2 in (114.8 x 66.2 x 55 mm)
Weight: 13.9 oz (393 g)

Four ThirdsFixed 24–75mm equiv.0.42 L envelope

View source

Travel zoom compact2014Archive

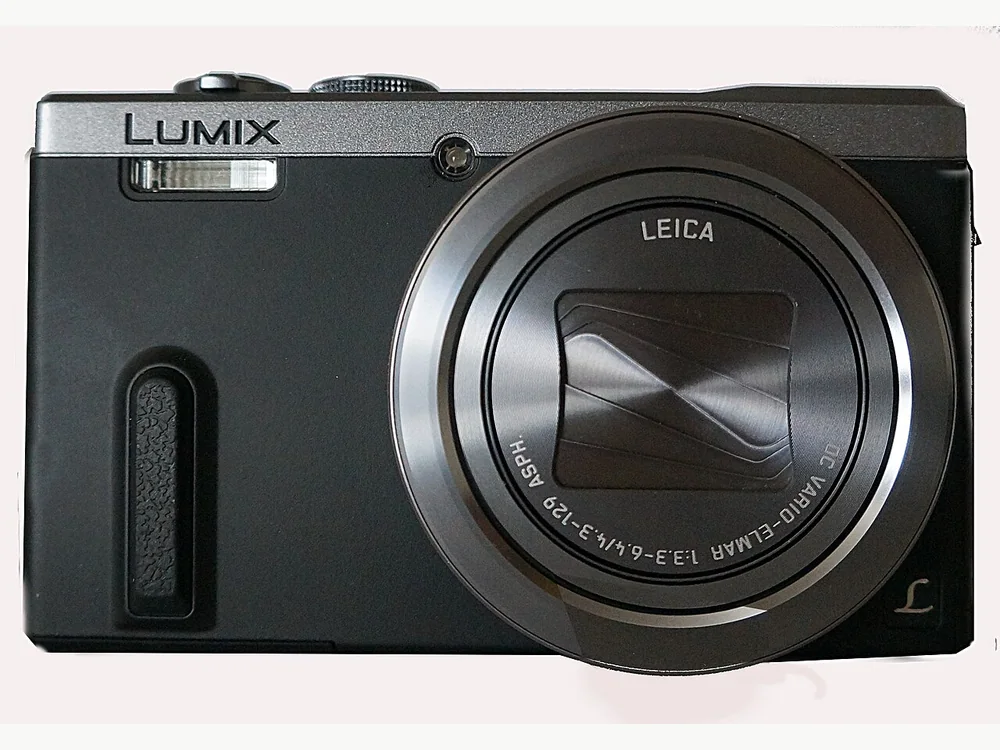

Lumix TZ60 / ZS40

Dimensions: 4.4 x 2.5 x 1.4 in (110.6 x 64.3 x 34.4 mm)
Weight: 8.5 oz (240 g)

1/2.3 inFixed 24–720mm equiv.0.24 L envelope

View source

Waterproof compact2013Archive

Lumix FT5 / TS5

Dimensions: 4.3 x 2.7 x 1.1 in (109.2 x 67.4 x 28.9 mm)
Weight: 7.5 oz (214 g)

1/2.3 inFixed 28–128mm equiv.0.21 L envelope

View source

Lumix GF mirrorless2013Archive

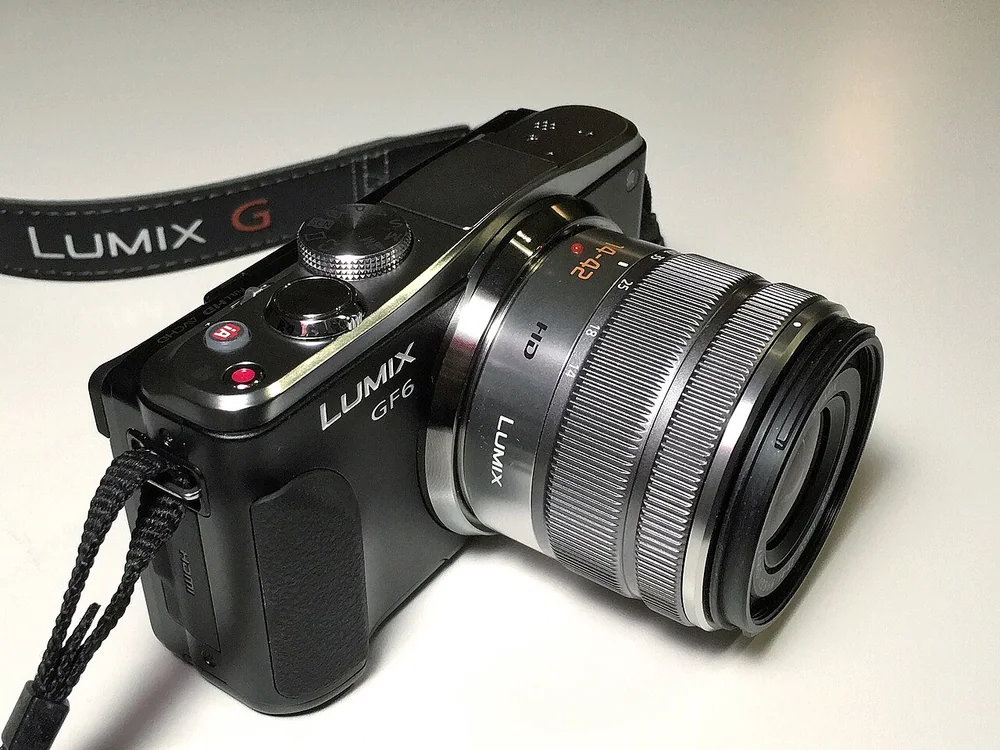

Lumix GF6

Dimensions: 4.4 x 2.6 x 1.5 in (111.2 x 64.8 x 38.4 mm)
Weight: 11.4 oz (323 g)

Micro Four ThirdsMicro Four Thirds0.28 L envelope

View source

Lumix GM mirrorless2013Archive

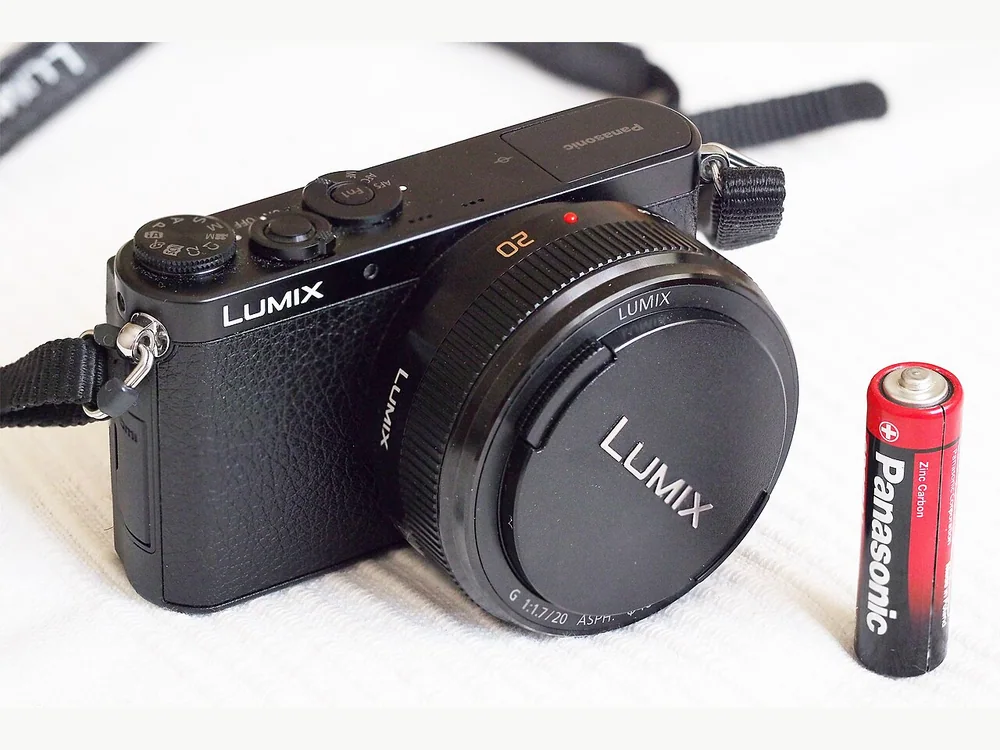

Lumix GM1

Dimensions: 3.9 x 2.2 x 1.2 in (98.5 x 54.9 x 30.4 mm)
Weight: 7.2 oz (204 g)

Micro Four ThirdsMicro Four Thirds0.16 L envelope

View source

Lumix GX mirrorless2013Archive

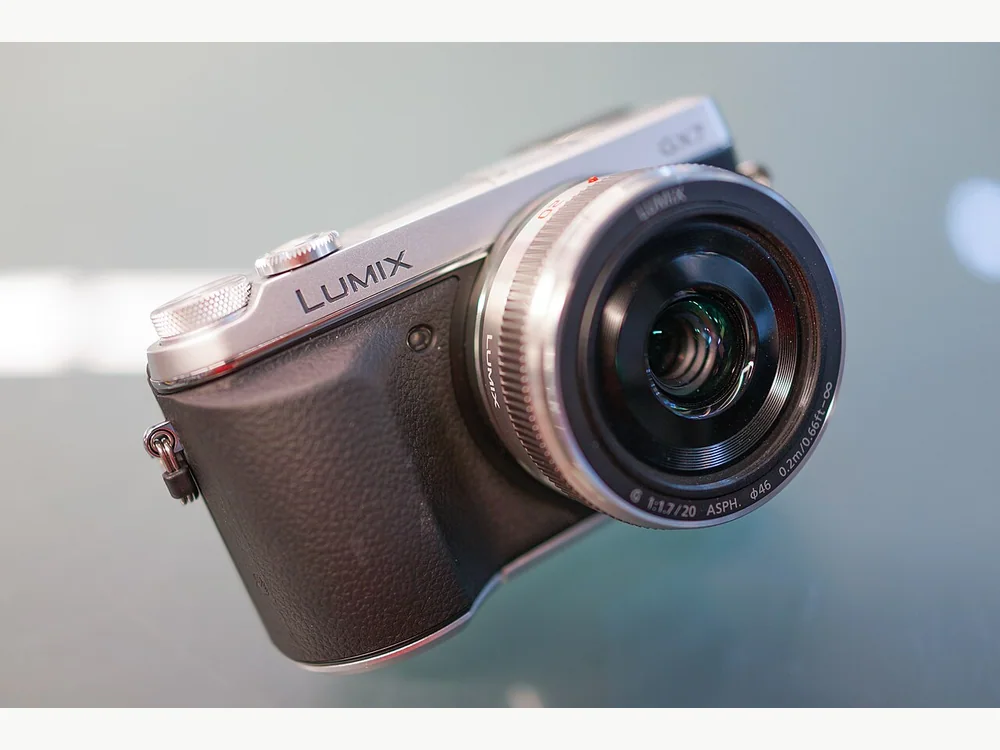

Lumix GX7

Dimensions: 4.8 x 2.8 x 2.1 in (122.6 x 70.7 x 54.6 mm)
Weight: 14.2 oz (402 g)

Micro Four ThirdsMicro Four Thirds0.47 L envelope

View source

Lumix GF mirrorless2012Archive

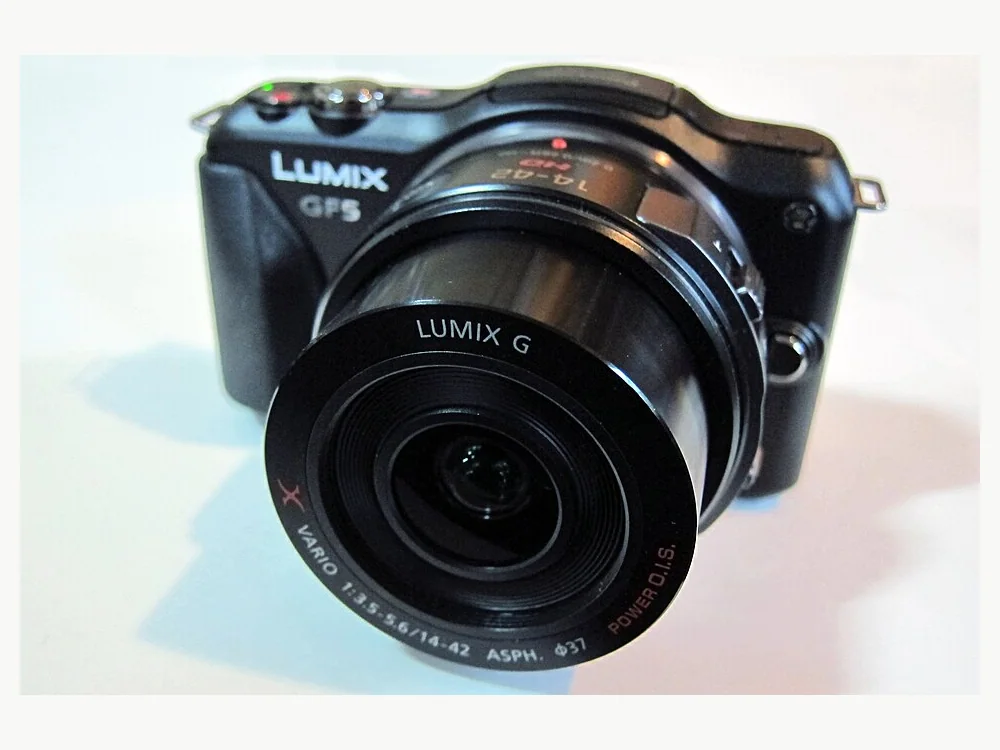

Lumix GF5

Dimensions: 4.2 x 2.6 x 1.4 in (107.7 x 66.6 x 36.8 mm)
Weight: 9.4 oz (267 g)

Micro Four ThirdsMicro Four Thirds0.26 L envelope

View source

Premium compact2012Archive

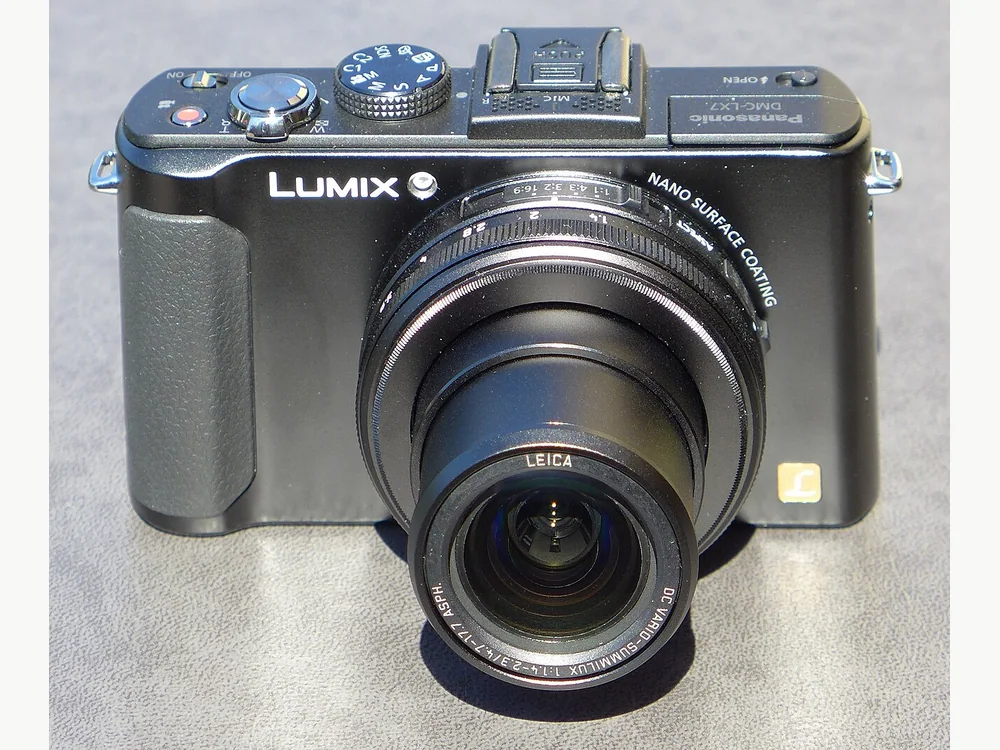

Lumix LX7

Dimensions: 4.4 x 2.6 x 1.8 in (110.5 x 67.1 x 45.6 mm)
Weight: 10.5 oz (298 g)

1/1.7 inFixed 24–90mm equiv.0.34 L envelope

View source

0.70–0.89 L

Small

4 archived

Lumix G mirrorless2016Archive

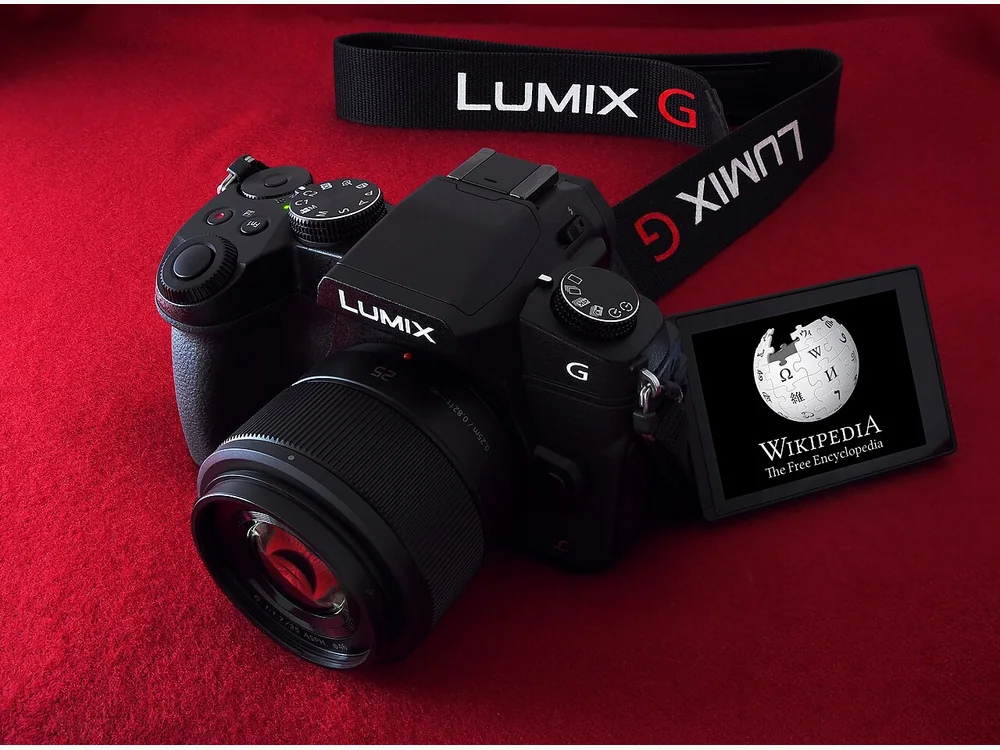

Lumix G80 / G85

Dimensions: 5.1 x 3.5 x 2.9 in (128.4 x 89 x 74.3 mm)
Weight: 17.8 oz (505 g)

Micro Four ThirdsMicro Four Thirds0.85 L envelope

View source

Lumix G mirrorless2015Archive

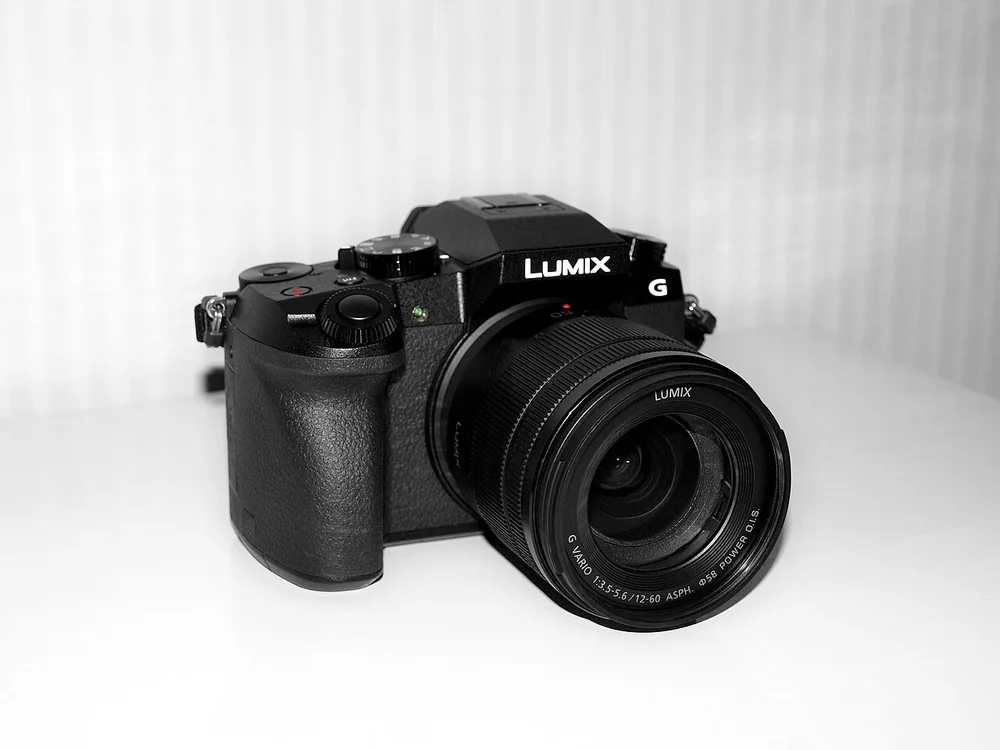

Lumix G7

Dimensions: 4.9 x 3.4 x 3.0 in (124.9 x 86.2 x 77.4 mm)
Weight: 14.5 oz (410 g)

Micro Four ThirdsMicro Four Thirds0.83 L envelope

View source

Lumix G mirrorless2013Archive

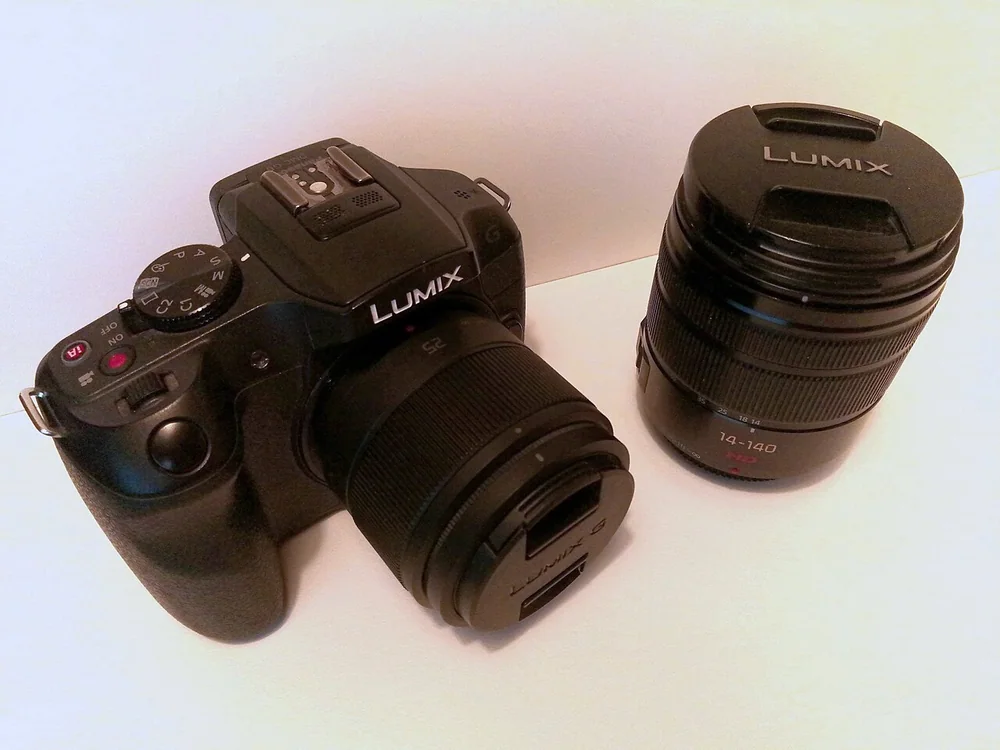

Lumix G6

Dimensions: 4.8 x 3.3 x 2.8 in (122.5 x 84.6 x 71.4 mm)
Weight: 13.8 oz (390 g)

Micro Four ThirdsMicro Four Thirds0.74 L envelope

View source

Lumix G mirrorless2012Archive

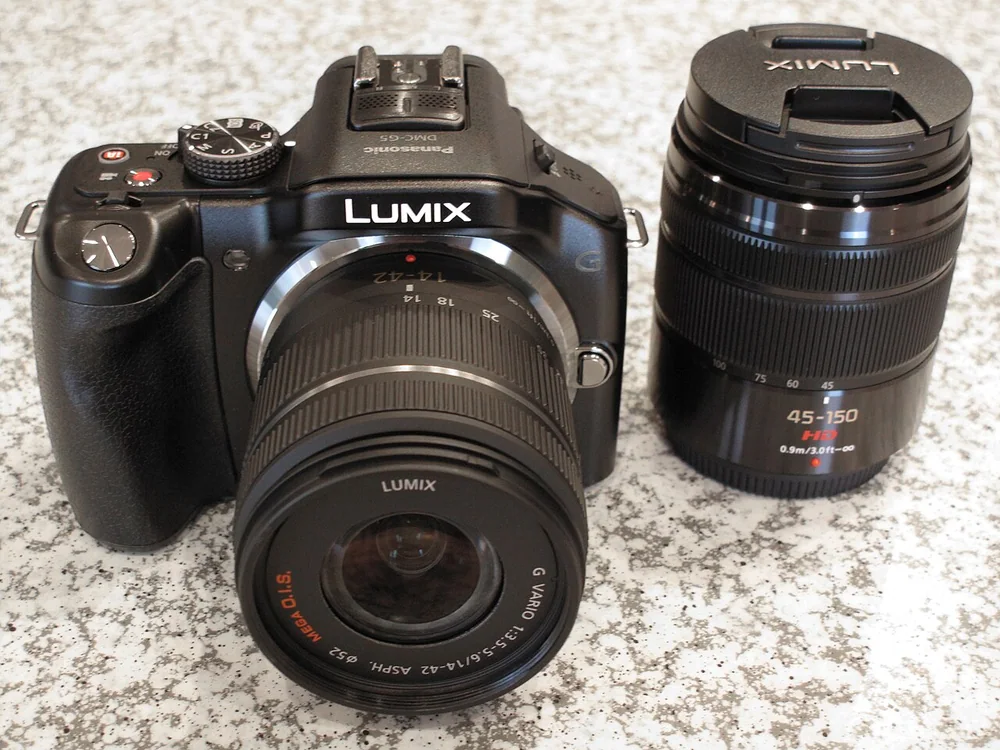

Lumix G5

Dimensions: 4.7 x 3.3 x 2.8 in (119.9 x 83.2 x 70.8 mm)
Weight: 14.0 oz (396 g)

Micro Four ThirdsMicro Four Thirds0.71 L envelope

View source

0.90–1.09 L

Standard

4 archived

Lumix S mirrorless2020Archive

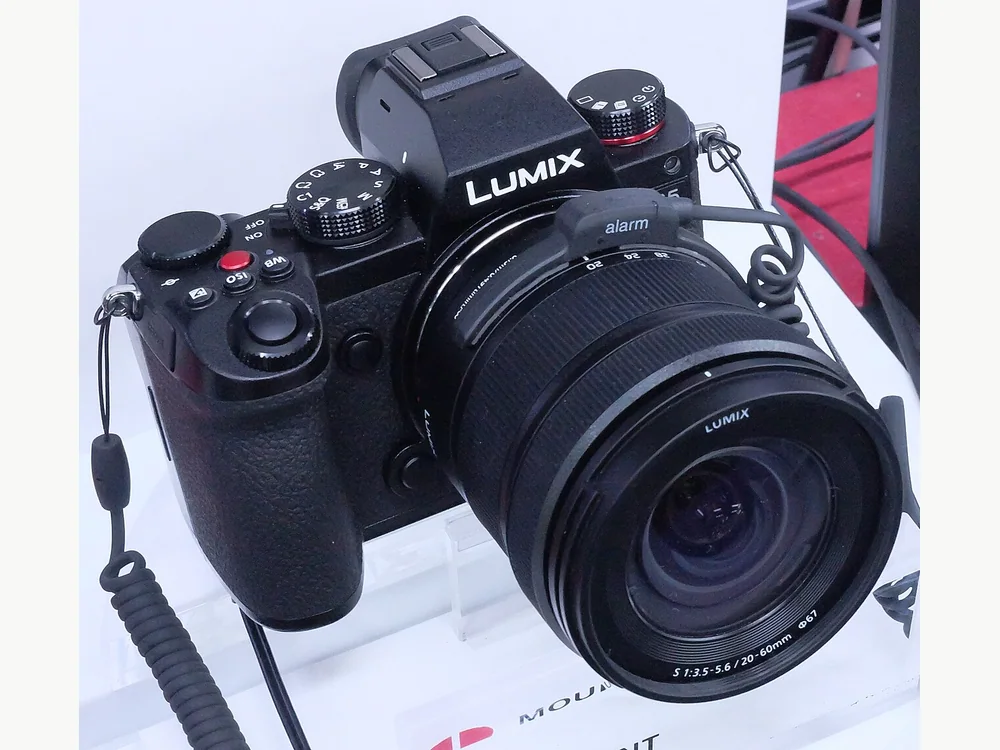

Lumix S5

Dimensions: 5.2 x 3.8 x 3.2 in (132.6 x 97.1 x 81.9 mm)
Weight: 25.2 oz (714 g)

Full frameLeica L1.05 L envelope

View source

Lumix G mirrorless2019Archive

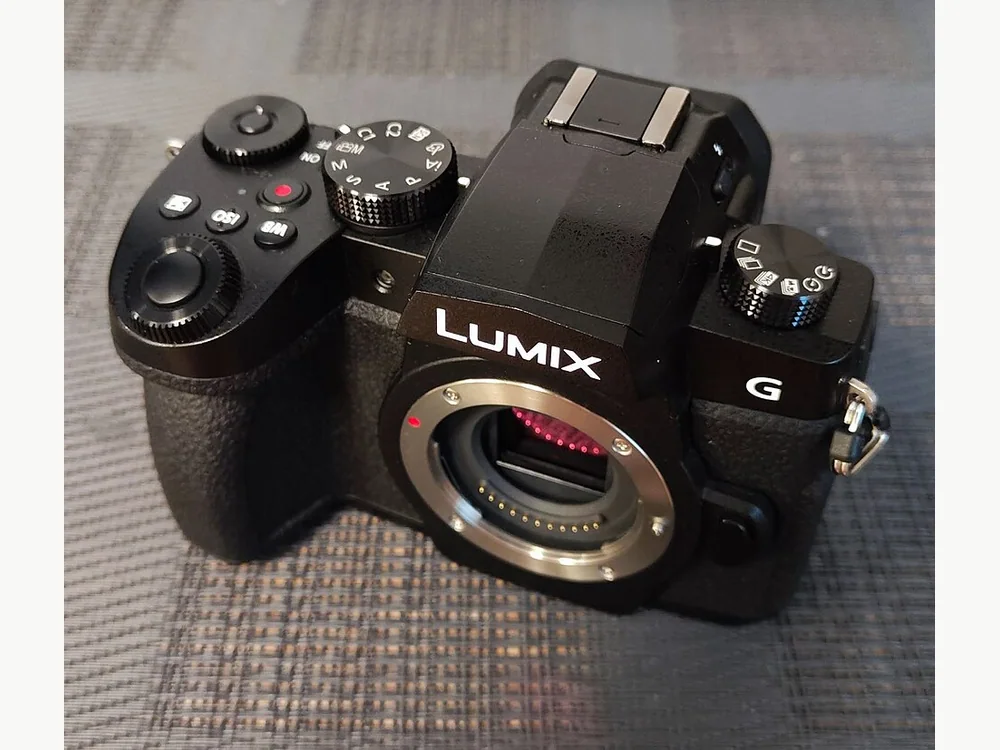

Lumix G90 / G95

Dimensions: 5.1 x 3.7 x 3.0 in (130.4 x 93.5 x 77.4 mm)
Weight: 18.9 oz (536 g)

Micro Four ThirdsMicro Four Thirds0.94 L envelope

View source

Lumix GH video2014Archive

Lumix GH4

Dimensions: 5.2 x 3.7 x 3.3 in (132.9 x 93.4 x 83.9 mm)
Weight: 19.8 oz (560 g)

Micro Four ThirdsMicro Four Thirds1.04 L envelope

View source

Lumix GH video2012Archive

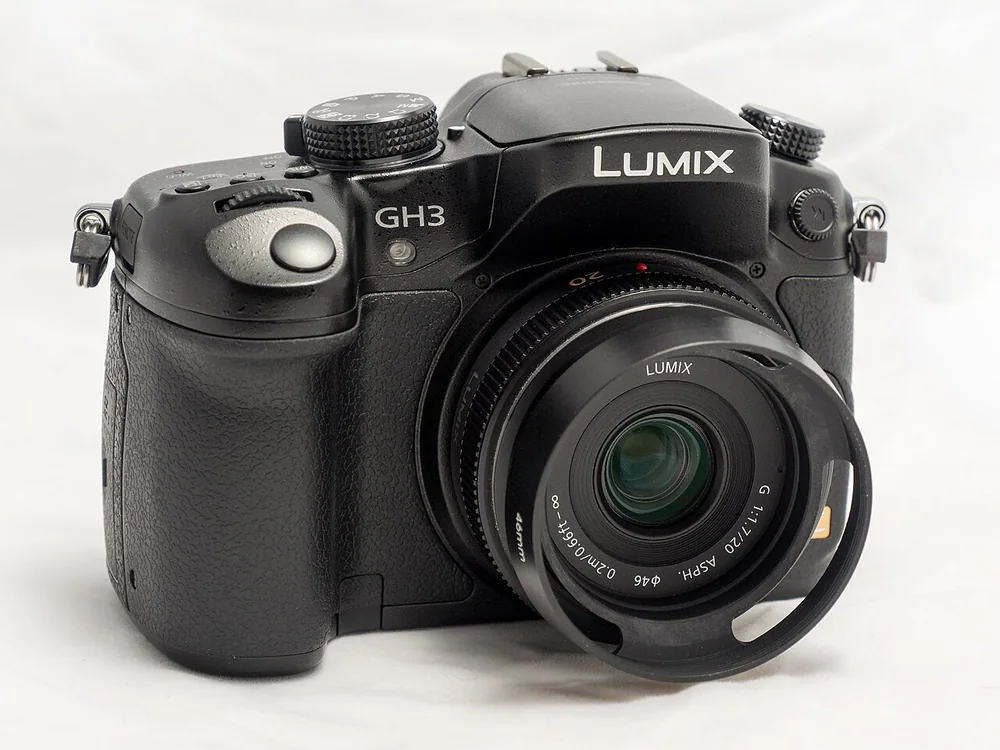

Lumix GH3

Dimensions: 5.2 x 3.7 x 3.2 in (132.9 x 93.4 x 82 mm)
Weight: 19.4 oz (550 g)

Micro Four ThirdsMicro Four Thirds1.02 L envelope

View source

1.10–1.59 L

Large

9 archived

Lumix GH video2022Archive

Lumix GH6

Dimensions: 5.4 x 3.9 x 3.9 in (138.4 x 100.3 x 99.6 mm)
Weight: 29.0 oz (823 g)

Micro Four ThirdsMicro Four Thirds1.38 L envelope

View source

Lumix GH video2021Archive

Lumix GH5 II

Dimensions: 5.5 x 3.9 x 3.4 in (138.5 x 98.1 x 87.4 mm)
Weight: 25.6 oz (727 g)

Micro Four ThirdsMicro Four Thirds1.19 L envelope

View source

Lumix S mirrorless2019Archive

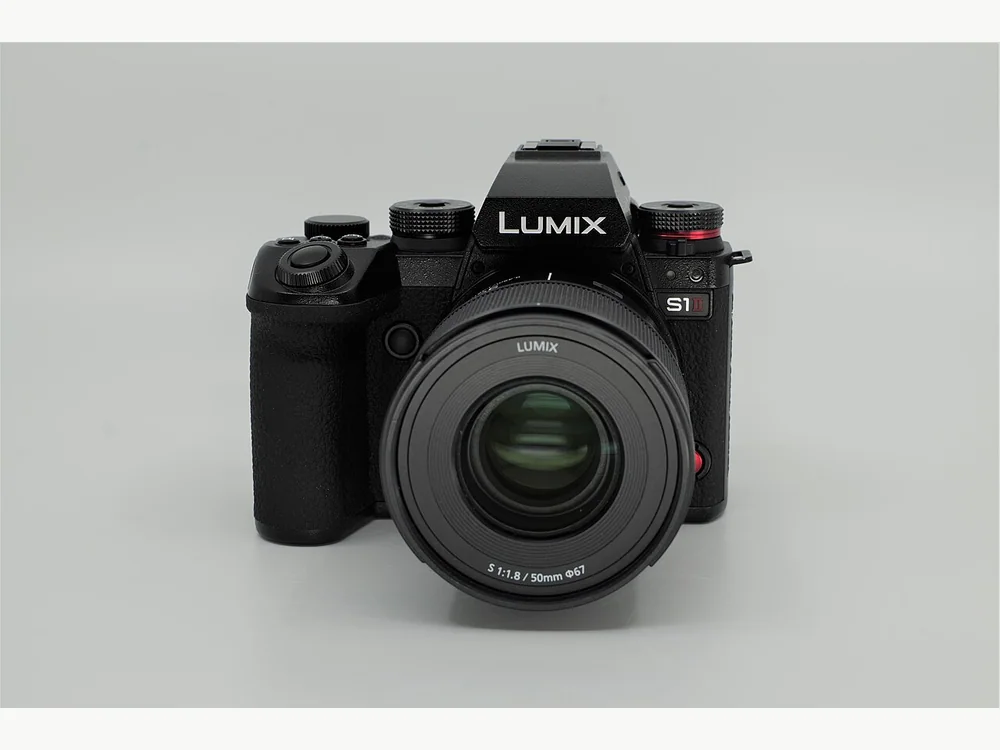

Lumix S1

Dimensions: 5.9 x 4.3 x 3.8 in (148.9 x 110 x 96.7 mm)
Weight: 36.0 oz (1,021 g)

Full frameLeica L1.58 L envelope

View source

Lumix S mirrorless2019Archive

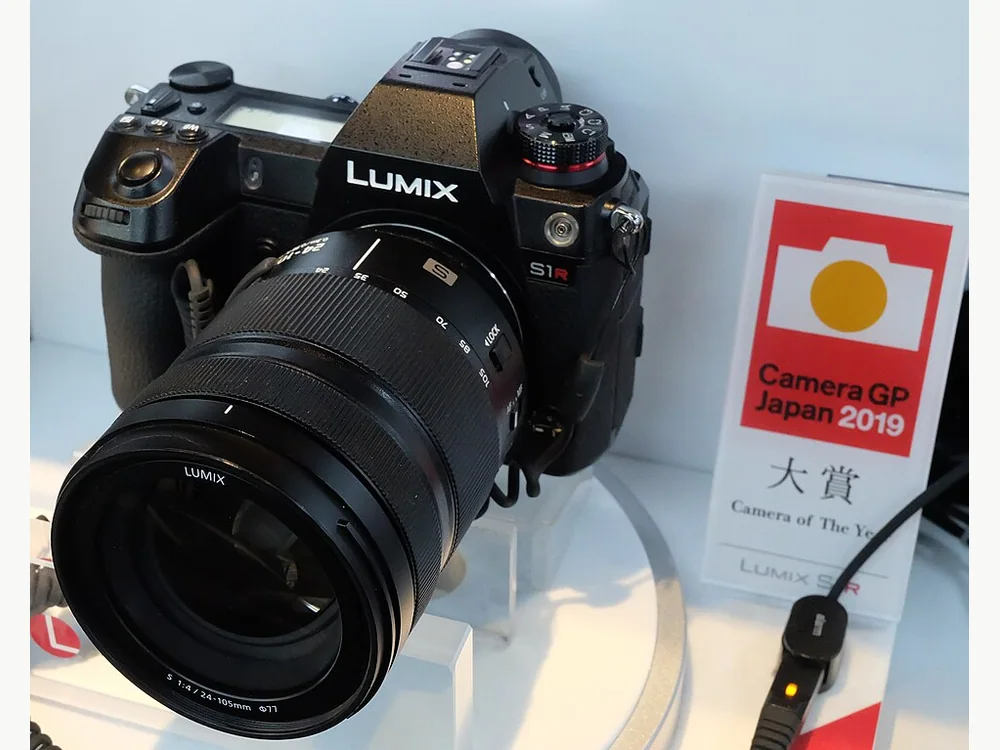

Lumix S1R

Dimensions: 5.9 x 4.3 x 3.8 in (148.9 x 110 x 96.7 mm)
Weight: 36.0 oz (1,020 g)

Full frameLeica L1.58 L envelope

View source

Bridge camera2017Archive

Lumix FZ80 / FZ82

Dimensions: 5.1 x 3.7 x 4.7 in (130.2 x 94.3 x 119.2 mm)
Weight: 21.7 oz (616 g)

1/2.3 inFixed 20–1200mm equiv.1.46 L envelope

View source

Lumix G mirrorless2017Archive

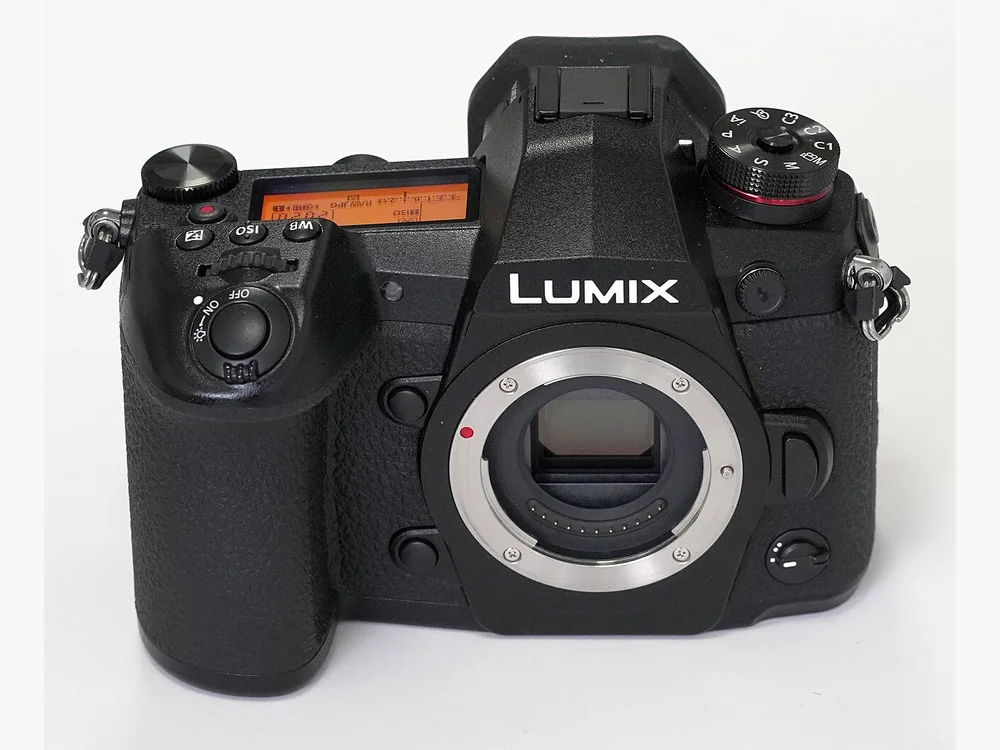

Lumix G9

Dimensions: 5.4 x 3.8 x 3.6 in (136.9 x 97.3 x 91.6 mm)
Weight: 23.2 oz (658 g)

Micro Four ThirdsMicro Four Thirds1.22 L envelope

View source

Lumix GH video2017Archive

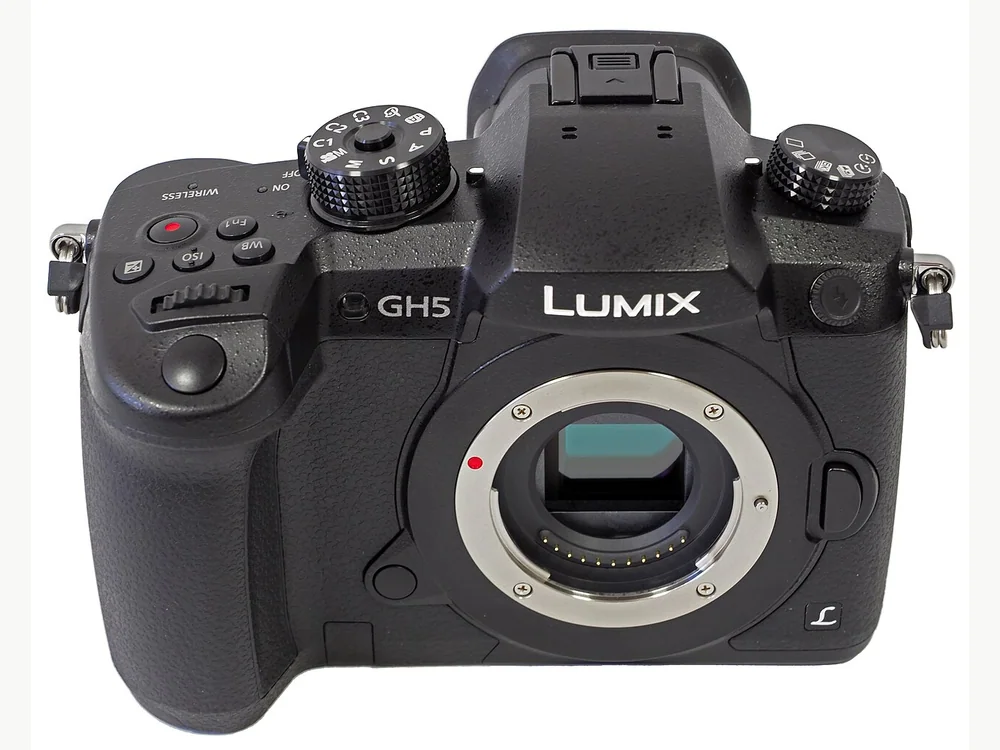

Lumix GH5

Dimensions: 5.5 x 3.9 x 3.4 in (138.5 x 98.1 x 87.4 mm)
Weight: 25.6 oz (725 g)

Micro Four ThirdsMicro Four Thirds1.19 L envelope

View source

Bridge camera2015Archive

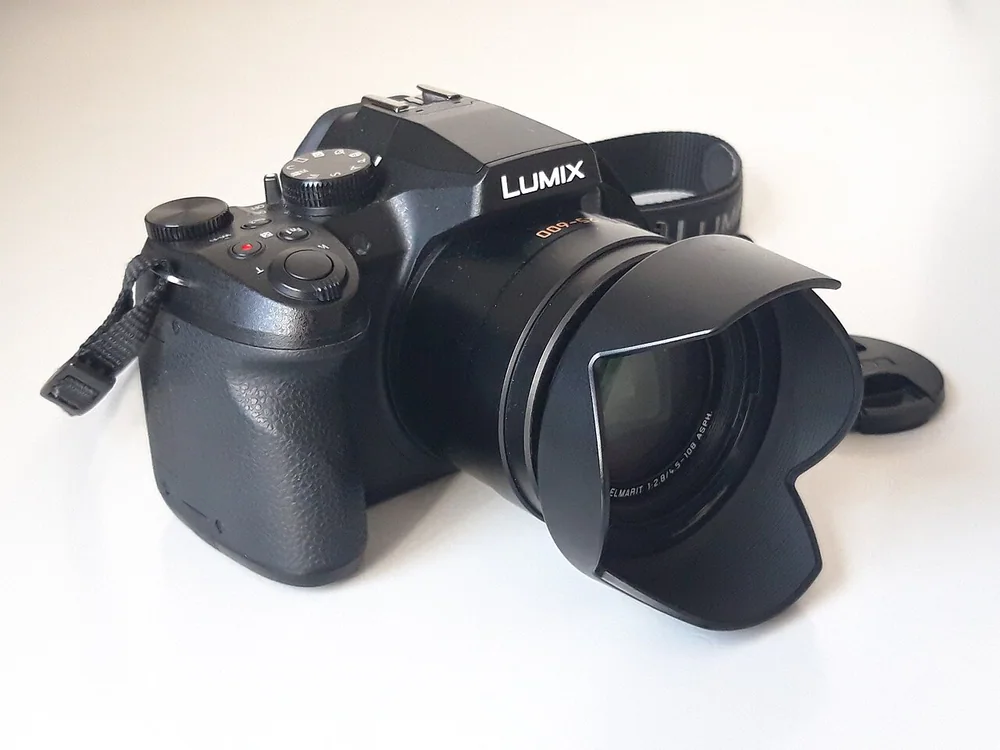

Lumix FZ300 / FZ330

Dimensions: 5.2 x 3.6 x 4.6 in (131.6 x 91.5 x 117.1 mm)
Weight: 24.4 oz (691 g)

1/2.3 inFixed 25–600mm equiv.1.41 L envelope

View source

Bridge camera2012Archive

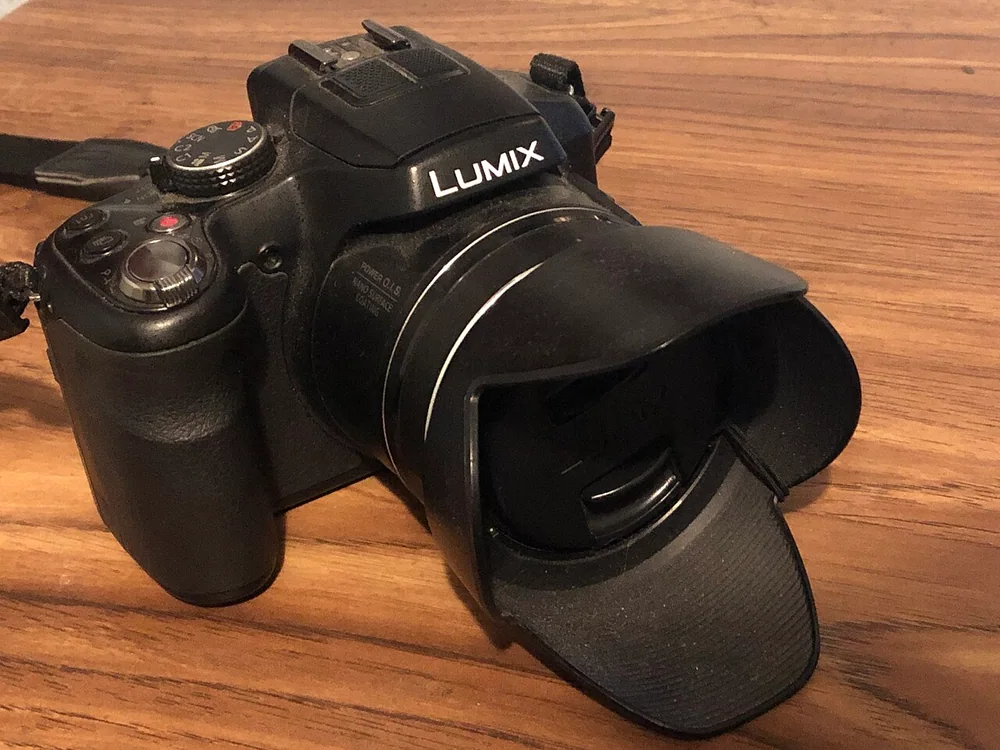

Lumix FZ200

Dimensions: 4.9 x 3.4 x 4.3 in (125.2 x 86.6 x 110.2 mm)
Weight: 20.7 oz (588 g)

1/2.3 inFixed 25–600mm equiv.1.19 L envelope

View source

1.60 L and over

Extra large

3 archived

Lumix S video2019Archive

Lumix S1H

Dimensions: 5.9 x 4.5 x 4.3 in (151 x 114.2 x 110.4 mm)
Weight: 41.1 oz (1,164 g)

Full frameLeica L1.90 L envelope

View source

Premium bridge camera2016Archive

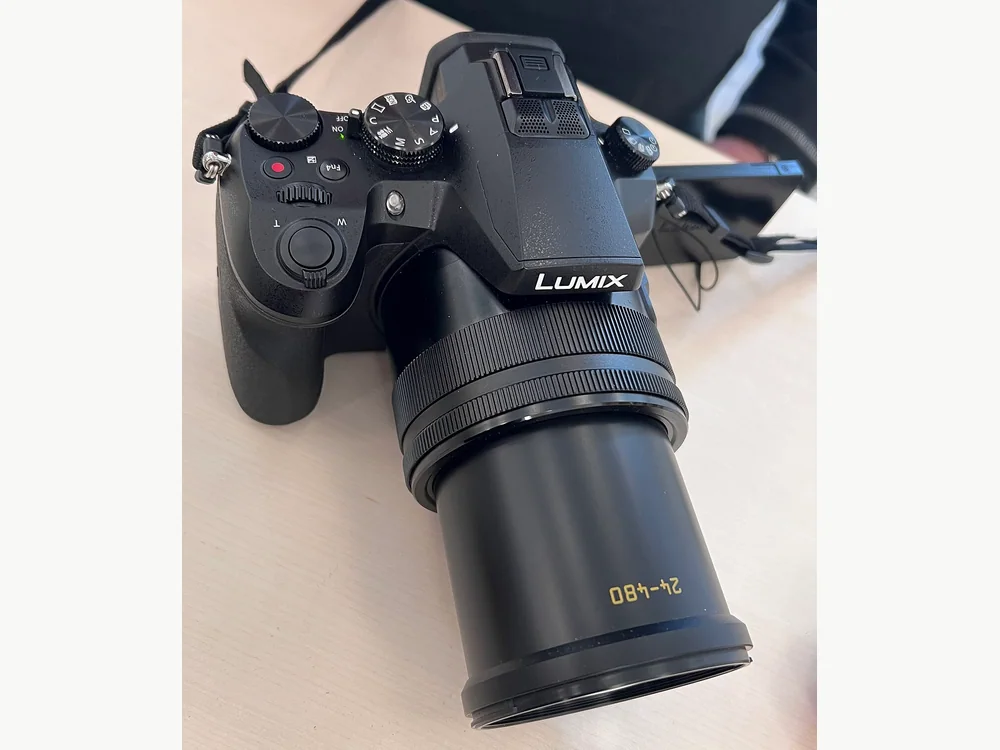

Lumix FZ2500 / FZ2000

Dimensions: 5.4 x 4.0 x 5.3 in (137.6 x 101.9 x 134.7 mm)
Weight: 34.1 oz (966 g)

1-inchFixed 24–480mm equiv.1.89 L envelope

View source

Premium bridge camera2014Archive

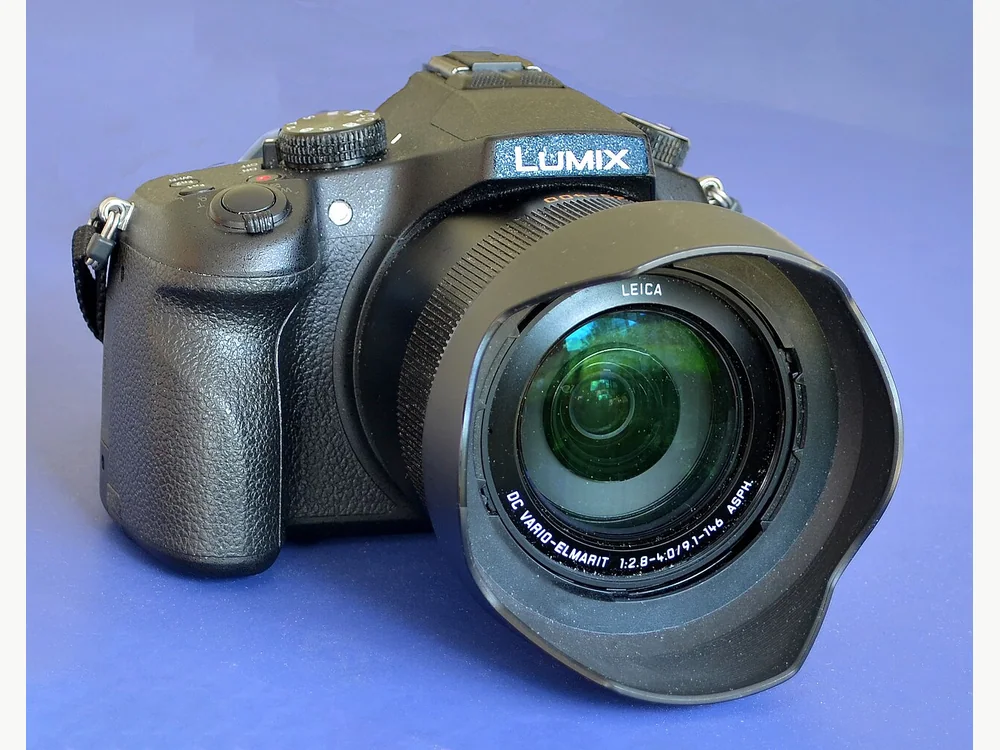

Lumix FZ1000

Dimensions: 5.4 x 3.9 x 5.1 in (136.8 x 98.5 x 130.7 mm)
Weight: 29.3 oz (831 g)

1-inchFixed 25–400mm equiv.1.76 L envelope

View source

Dimensions and weights link to manufacturer specifications or established references. Weights generally include the battery and memory card. Product ranges change, so use the linked source when millimetre-perfect fit is critical.
